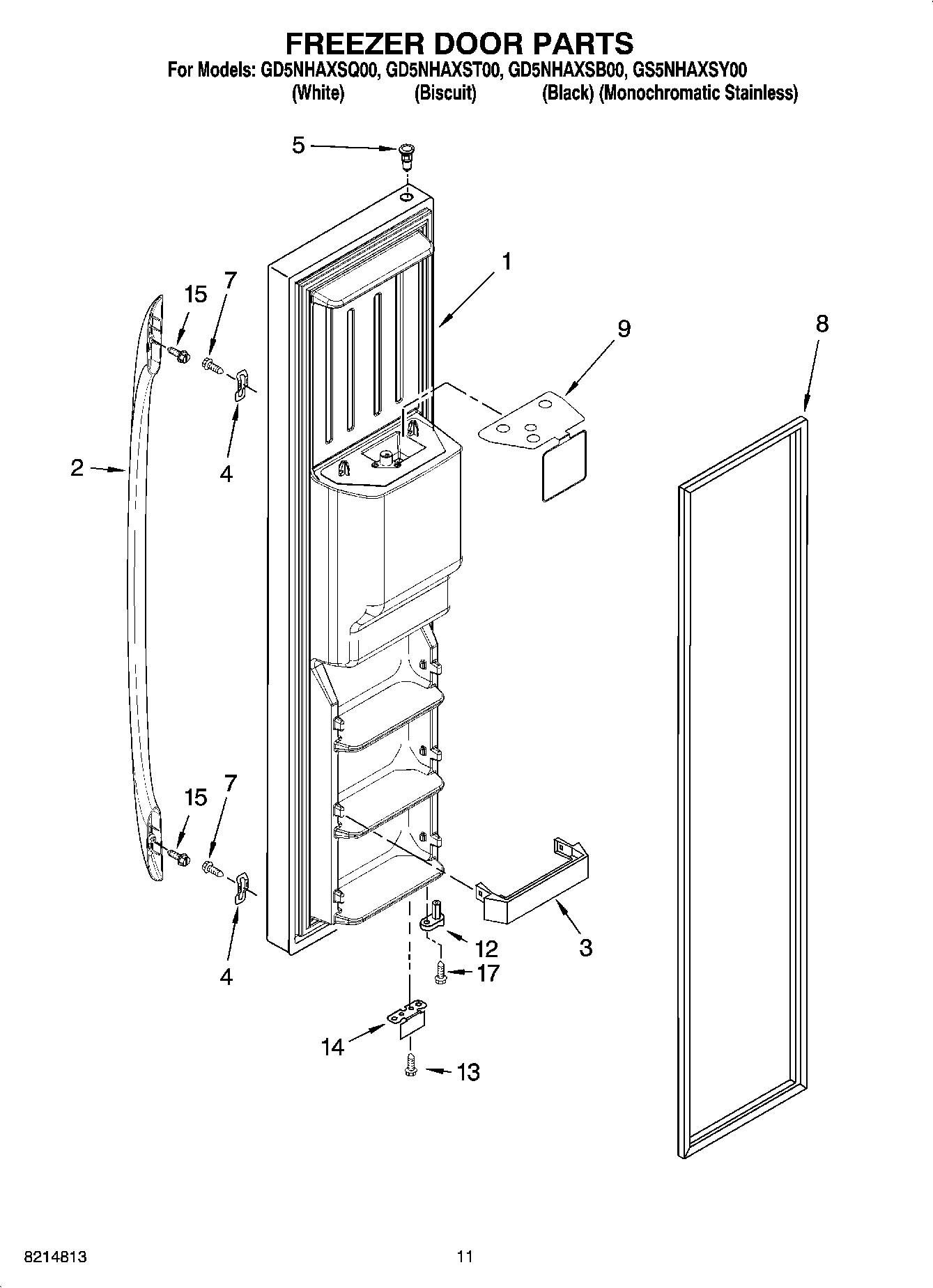

GS5NHAXSY00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Biscuit)
2	Handle (White)
2	Handle (Black)
2	Handle (Universal Silver)
3	WP2171157 Whirlpool Shelf Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	WP2182181 Whirlpool Refrigerator Thimble
7	WP489491 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	Safety Barrier
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
14	Bracket, Door Stop (Black)
15	SCREW
17	Wire Assembly, Freezer Door
17	Tube, Water Dispenser
17	WP3400012 Whirlpool Refrigerator Screw
17	Following Parts Not Illustrated
