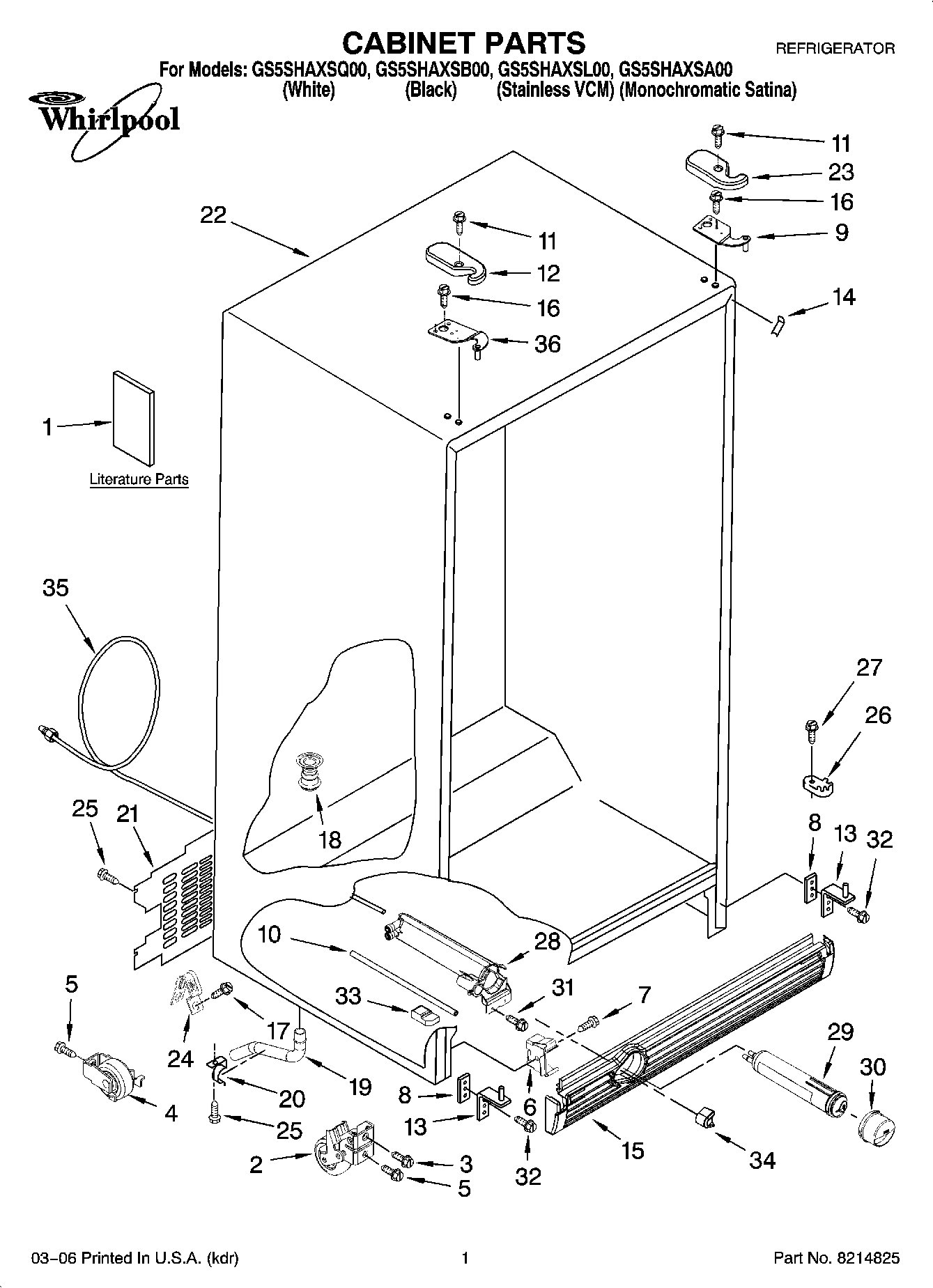

GS5SHAXSA00 01 – CABINET PARTS

GS5SHAXSA00 01 – CABINET PARTS

Written by

in

GS5SHAXSA00 01 – CABINET PARTS

Products

Position	Product
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	DO-IT-YOURSELF MANUAL, ICEMAKER
1	Modular Icemaker Service Sheet
1	Owner`s Manual
1	Service & Wiring Sheet
1	Energy Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WPW10350006 Whirlpool Refrigerator Water Tube
11	WP8281227 Whirlpool Screw
12	WP2203407B Whirlpool Refrigerator Cover
12	2203407AP Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (Black)
14	Filler, Wrapper (White)
14	Filler, Wrapper (Apollo Gray)
15	Grille (Apollo Gray)
15	WPW10311033 Whirlpool Refrigerator Grille
15	WPW10311032 Whirlpool Refrigerator Grille
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	WP2188755 Whirlpool Rear Panel
22	Cabinet, (Not A Serviceable Part)
23	WP2203408W Whirlpool Refrigerator Cover
23	2203408AP Whirlpool Refrigerator Cover
23	WP2203408B Whirlpool Refrigerator Cover
24	549193 Whirlpool Refrigerator Power Clamp
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	WP2260518AP Whirlpool Filter Cap Assembly
31	WP489500 Whirlpool Refrigerator Screw
32	WP489497 Whirlpool Screw
33	Block, Housing Support
34	2260503W Whirlpool Refrigerator Button
34	Button, Water
34	WP2260503B Whirlpool Refrigerator Button
35	WP2304697 Whirlpool Refrigerator Water Tube
36	WP2203770 Whirlpool Refrigerator Door Hinge
