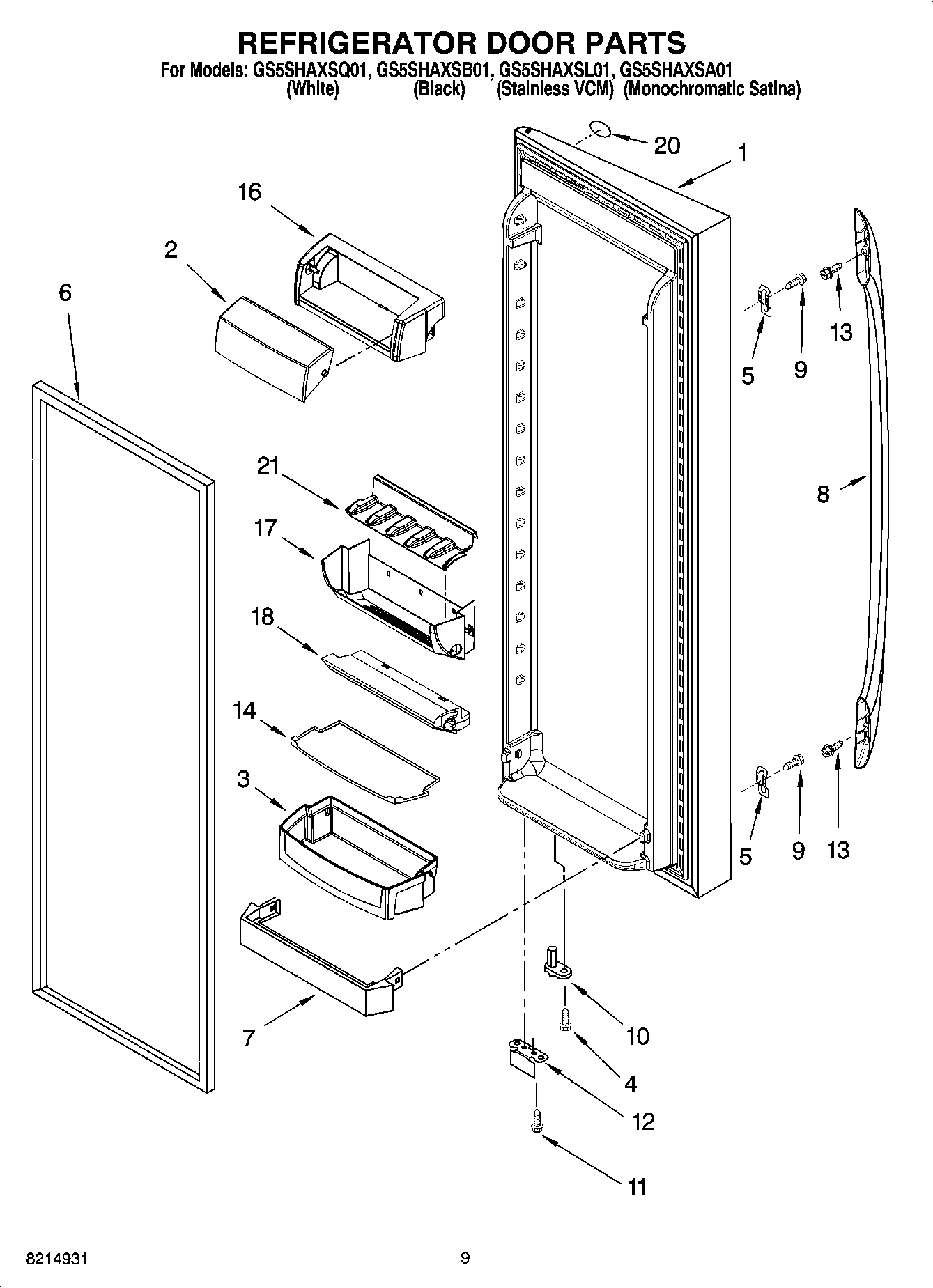

GS5SHAXSL01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
1Refrigerator Door (Includes Item 6) (Monochromatic Satina)
1Refrigerator Door (Includes Item 6) (Black)
2Dairy Door
3Door Bin (3)
4WP3400012 Whirlpool Refrigerator Screw
5WP2255411 Whirlpool Refrigerator Clip
62159083 Whirlpool Gasket Door
62159075 Whirlpool Door Gasket Seal
7WP2318736 Whirlpool Refrigerator Door Trim
8Handle
8Handle (Universal Silver)
8Handle (Includes 20) (White)
9WP489491 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop
12Bracket, Door Stop
13SCREW
14Mat, Bin (2)
16Door Compartment
17Frame, Can Rack
18Air Diffuser Asm
20Nameplate
21Floor, Can Rack
