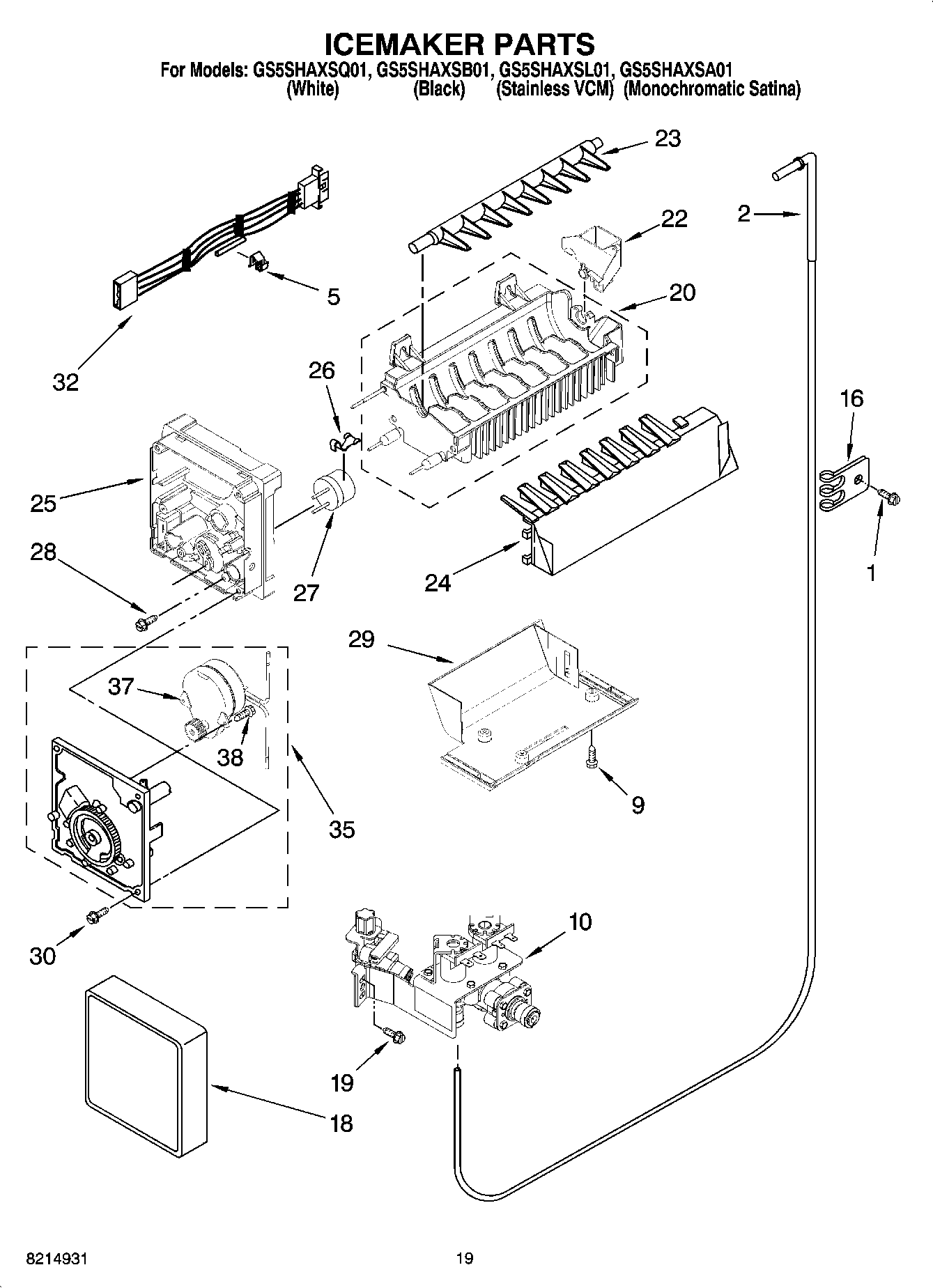

GS5SHAXSL01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	8171357 Whirlpool Spray Nozzle
	212643 Whirlpool Refrigerator Permagum Sealer
	Torx Key
	350942 Whirlpool Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	WPL 799833
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Enamel, Black (1 Qt. Uncut)
	ACCESSORIES
	CLEANER, (STAINLESS STEEL)
	4210463RW Whirlpool Refrigerator Coil Brush
	TOR
	72032 Whirlpool Touch Up Paint Black
2	WP2256096 Whirlpool Refrigerator Fitting
5	WP628379 Whirlpool Refrigerator Clip
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
16	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	BRACKET, ICEMAKER MOUNTING
30	WP681249 Whirlpool Screw Assembly
32	WP2187467 Whirlpool Refrigerator Wire Harness
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	2198597 Whirlpool Refrigerator Ice Maker
