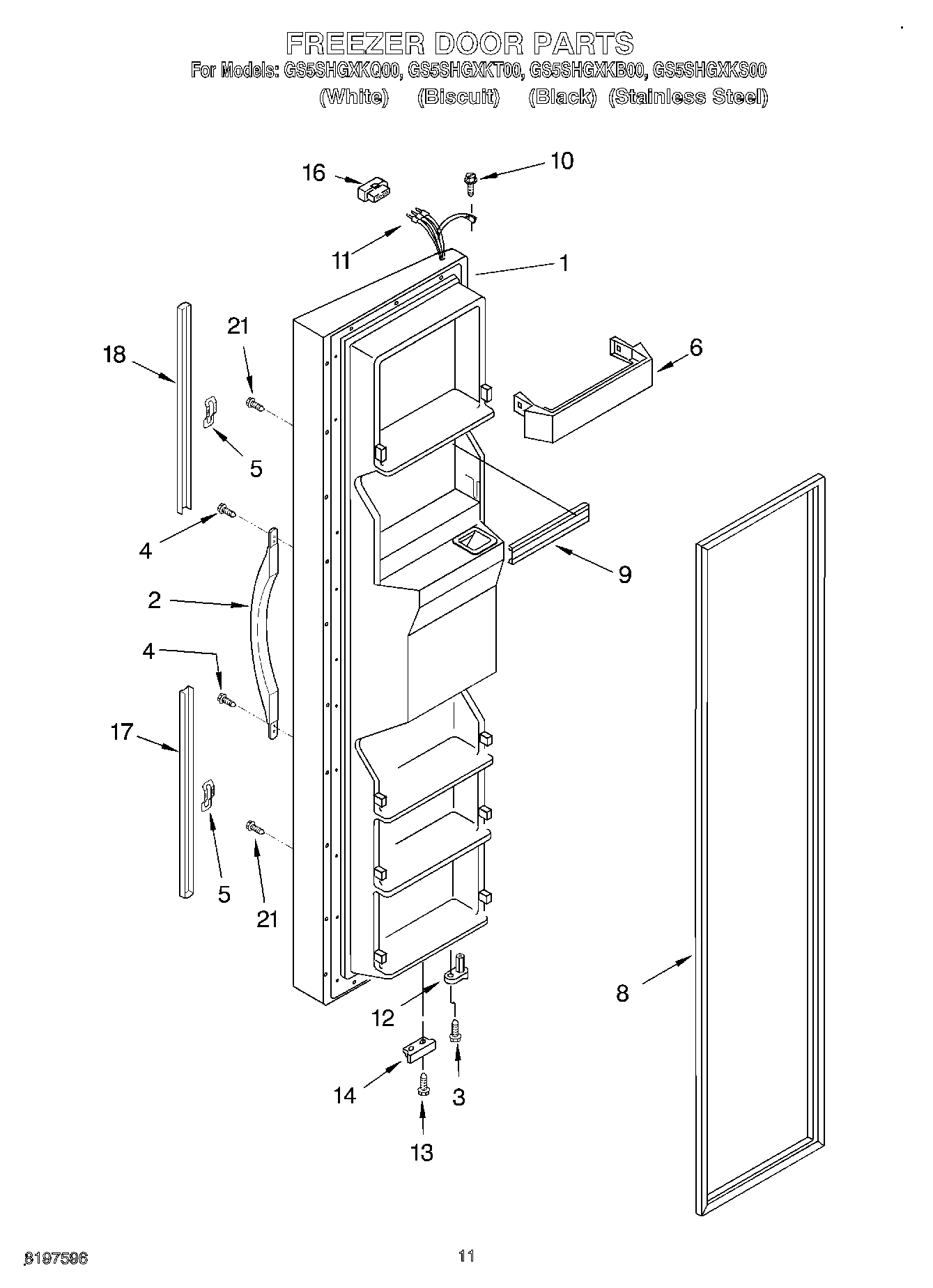

GS5SHGXKS00 07 – FREEZER DOOR

GS5SHGXKS00 07 – FREEZER DOOR

Written by

in

GS5SHGXKS00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Stainless)
2Handle (Black)
2Handle (Biscuit)
2Handle (White)
3WP3400012 Whirlpool Refrigerator Screw
4WP489491 Whirlpool Refrigerator Screw
5WP2195327 Whirlpool Refrigerator Clip
6WP2171157 Whirlpool Shelf Trim
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
14Bracket, Door Stop
16WP2154473 Whirlpool Refrigerator Connector
17Trim, Door-Bottom (White)
17Trim, Door-Bottom (Biscuit)
17Trim, Door-Bottom (Black)
18Trim, Door-Top (White)
18Trim, Door-Top (Biscuit)
18Trim, Door-Top (Black)
21WP3400852 Whirlpool Refrigerator Screw
