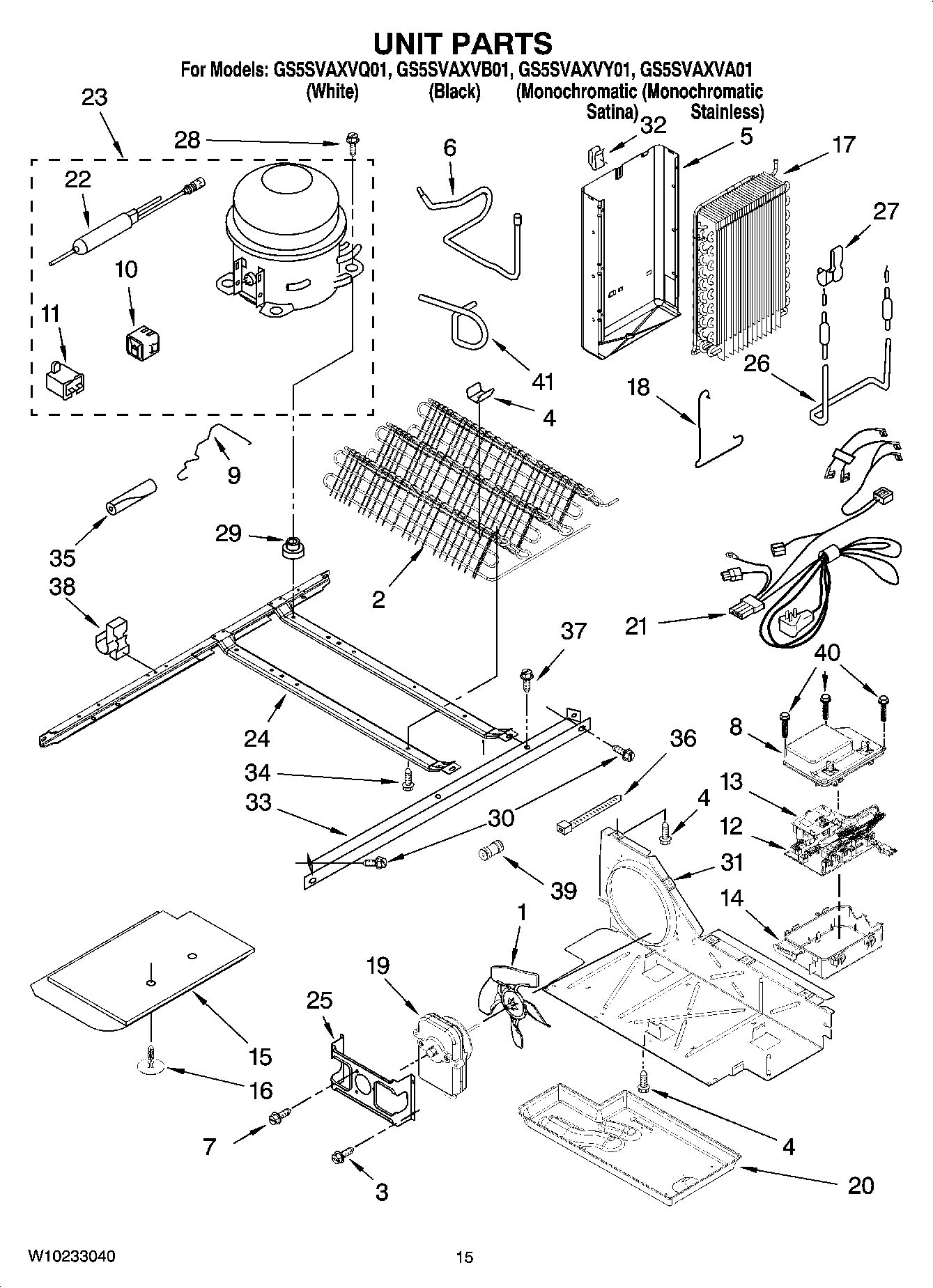

GS5SVAXVQ01 09 – UNIT PARTS
Written by
in
GS5SVAXVQ01 09 – UNIT PARTS
Products
Position
Product
978027 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134A)
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (5/8“)
1
W10156818 Whirlpool Refrigerator Fan Blade
2
2324712 Whirlpool Refrigerator Condenser
3
WP489464 Whirlpool Refrigerator Screw
4
W10683556 Whirlpool Refrigerator Clip
5
Heat Shield
6
W10528574 Whirlpool Refrigerator Tube
7
WP8533993 Whirlpool Refrigerator Screw
8
2323188 Whirlpool Refrigerator Cover
9
W11661170 Whirlpool Clip
10
WPW10189190 Whirlpool Start Device
11
WPW10662129 Whirlpool Refrigerator Run Capacitor
12
WPW10210789-includeCORE Whirlpool WPW10210789 Refrigerator Electronic Control Board + Core
13
WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
14
2323186 Whirlpool Refrigerator Housing
15
Unit Cover, Bottom
16
489396 Whirlpool Refrigerator Clip
17
WP2188823 Whirlpool Refrigerator Evaporator
18
Clamp
19
WP2188874 Whirlpool Refrigerator Condenser Motor
20
WPW10614158 Whirlpool Refrigerator Evaporator Tray
21
WPW10291106 Whirlpool Refrigerator Wire Harness
22
WPW10143759 Whirlpool Dryer Filter
23
W10233961 Whirlpool Refrigerator Compressor
24
2304904 Whirlpool Frame Assembly
25
WP2181929 Whirlpool Refrigerator Bracket
26
WP2323198 Whirlpool Refrigerator Heater
27
W11623163 Whirlpool Refrigerator Clip
29
WP4387558 Whirlpool Refrigerator Compressor Grommet
29
876811 Whirlpool Grommet
30
489340 Whirlpool Refrigerator Screw
31
W10896764 Whirlpool Refrigerator Air Baffle
32
Clip, Heat Shield
33
2305374 Whirlpool Refrigerator Unit Rail
34
W11544659 Whirlpool Refrigerator Screw
35
SLEEVE
36
WPW10339879 Whirlpool Wire Tie
37
WP489427 Whirlpool Refrigerator Screw
38
W10812039 Whirlpool Clip
39
WPW10334458 Whirlpool Refrigerator Connector
40
WPW10171469 Whirlpool Refrigerator Screw
41
Tube, Process
←
