GS5VHAXWQ02 03 – REFRIGERATOR SHELF PARTS

GS5VHAXWQ02 03 – REFRIGERATOR SHELF PARTS

Written by

in

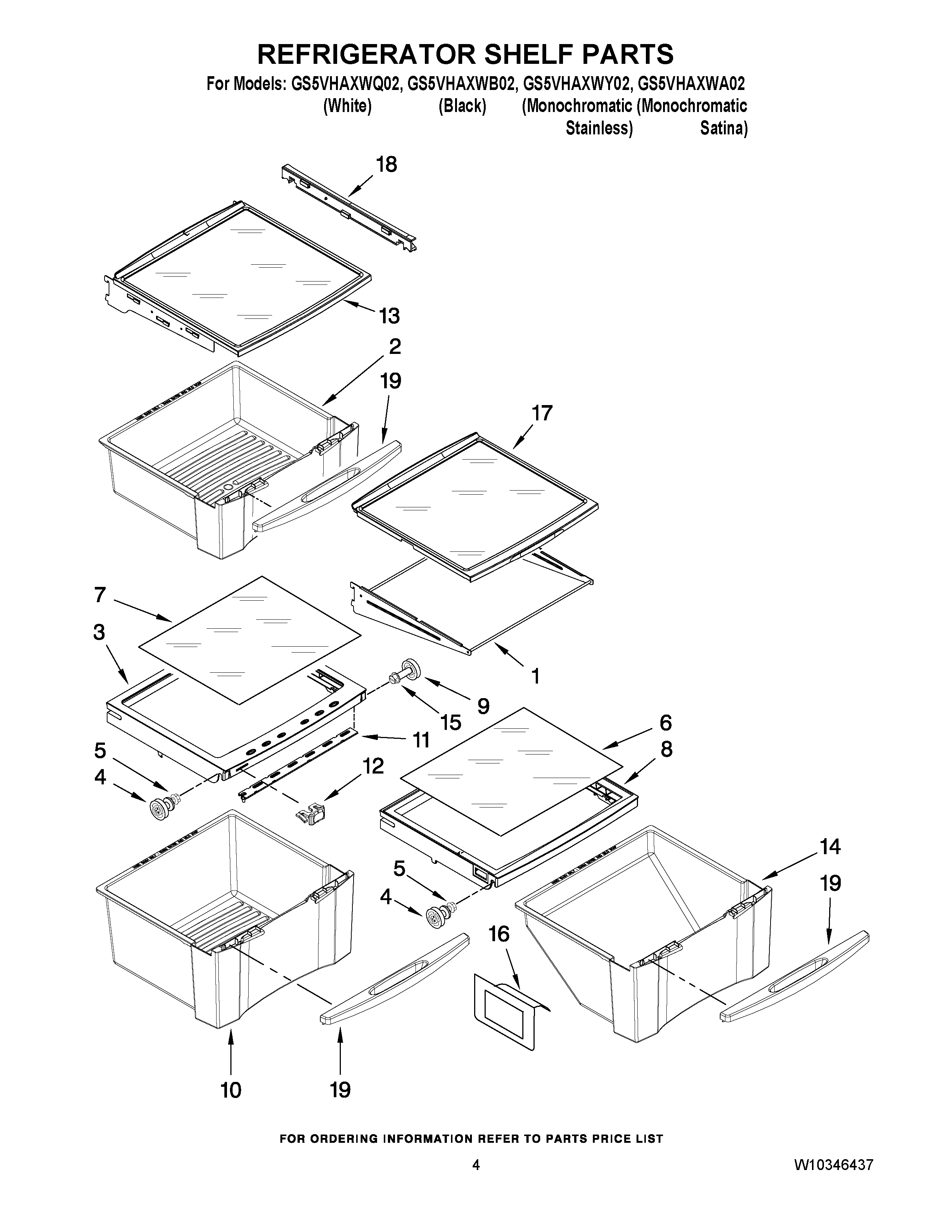

GS5VHAXWQ02 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame Assembly (2)
2SNACK PAN
3Cover, Crisper
4W11223328 Whirlpool Refrigerator Shelf Stud
5WP3-24004-109 Whirlpool Refrigerator Screw
6Glass, Meat Cover
7WP2223591 Whirlpool Refrigerator Glass Shelf
8WP2223242 Whirlpool Refrigerator Cover
9W11527119 Whirlpool Refrigerator Shelf Stud
10CRISPER PAN
112223308 Whirlpool Refrigerator Slide
12Knob, Humidity Control
13WP2223288 Whirlpool Refrigerator Cantilever Shelf
14MEAT PAN
15WPW10191952 Whirlpool Refrigerator Screw
162179350 Whirlpool Refrigerator Deflector
17Shelf, Slide Out (2)
18WP2223320 Whirlpool Slide Track Pan
19Trim, Handle
