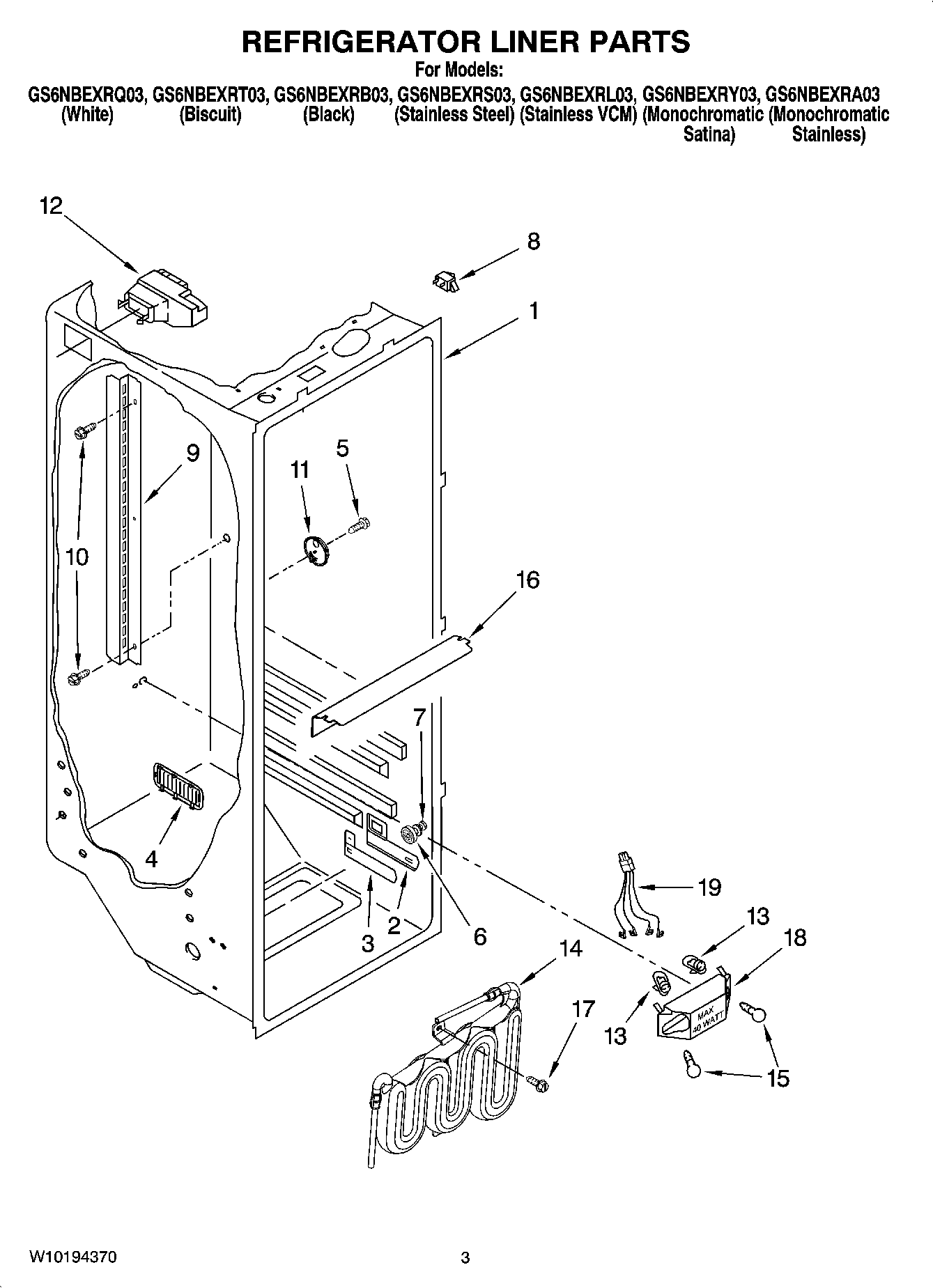

GS6NBEXRA03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W10759522 Whirlpool Screw
6W11223328 Whirlpool Refrigerator Shelf Stud
7WP3-24004-109 Whirlpool Refrigerator Screw
8W11384469 Whirlpool Door Switch
9Shelf Ladder
10WP489478 Whirlpool Refrigerator Screw
11Door Control Asm
12WPW10151374 Whirlpool Refrigerator Diffuser
134387478 Whirlpool Refrigerator Light Socket
14RESERVOIR
15RANGE ONLY 40W 120V APPL BULB
16Light Lens
17Screw (2)
18Bracket, Dual Crisper Light
192311637 Whirlpool Refrigerator Wire Harness
