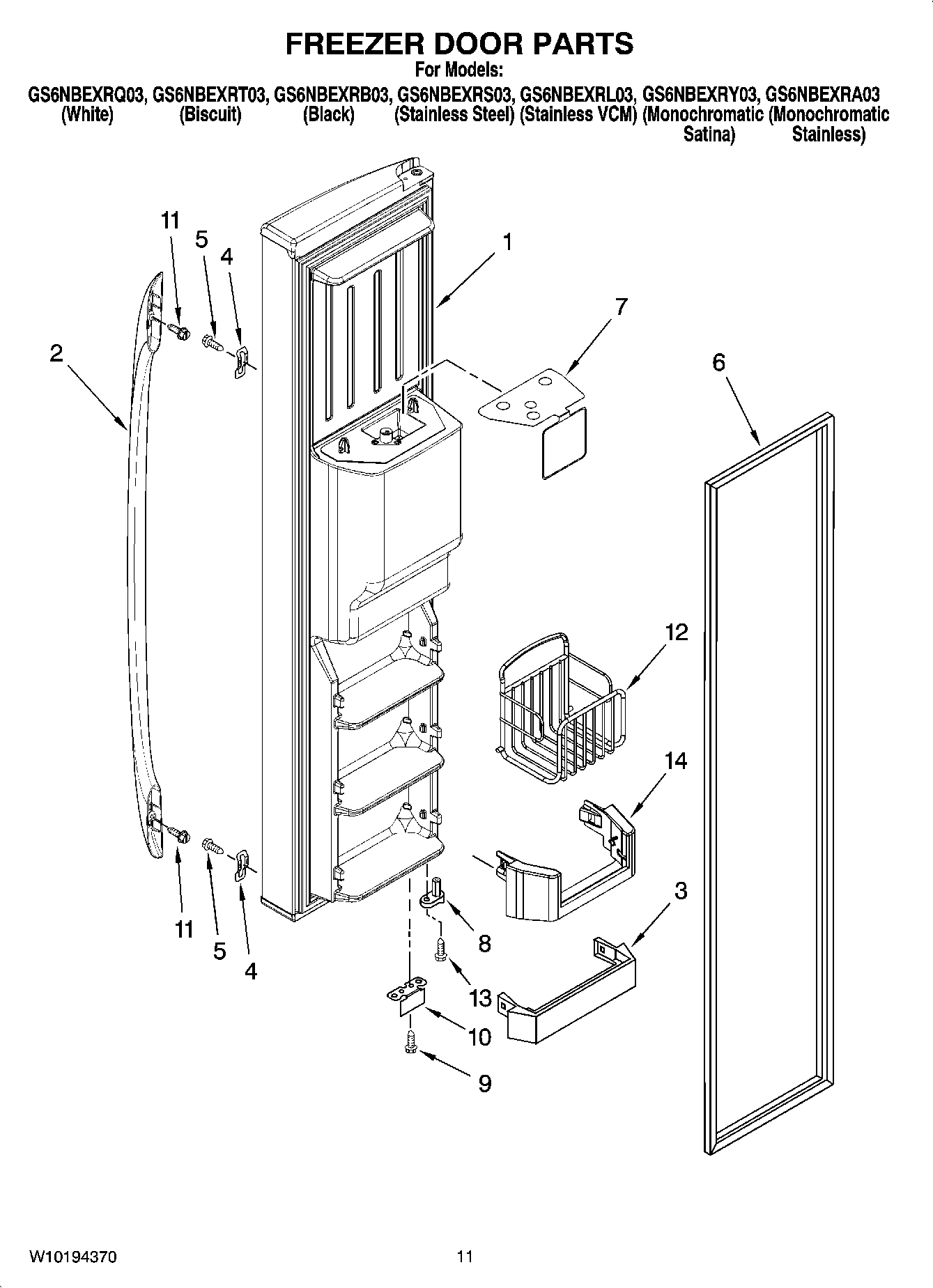

GS6NBEXRA03 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Tube, Water Dispenser
	Wire Assembly, Freezer Door
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Stainless VCM)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Monochromatic Satina)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Monochromatic Stainless)
2	Handle (Biscuit)
2	Handle (Universal Silver)
2	Handle (Black)
2	Handle (White)
3	WP2171157 Whirlpool Shelf Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	WP489491 Whirlpool Refrigerator Screw
6	W10136735 Whirlpool Refrigerator Door Gasket
6	2159074 Whirlpool Door Gasket Seal
6	2159082 Whirlpool Freezer Door Gasket Black
7	Safety Barrier
8	WP2223752 Whirlpool Refrigerator Door Cam
9	WP489483 Whirlpool Screw
10	Bracket, Door Stop (Black)
10	Bracket, Door Stop (Chrome)
11	SCREW
12	Basket, Tilt Out
13	WP3400012 Whirlpool Refrigerator Screw
14	TRIVET, TILT-OUT
