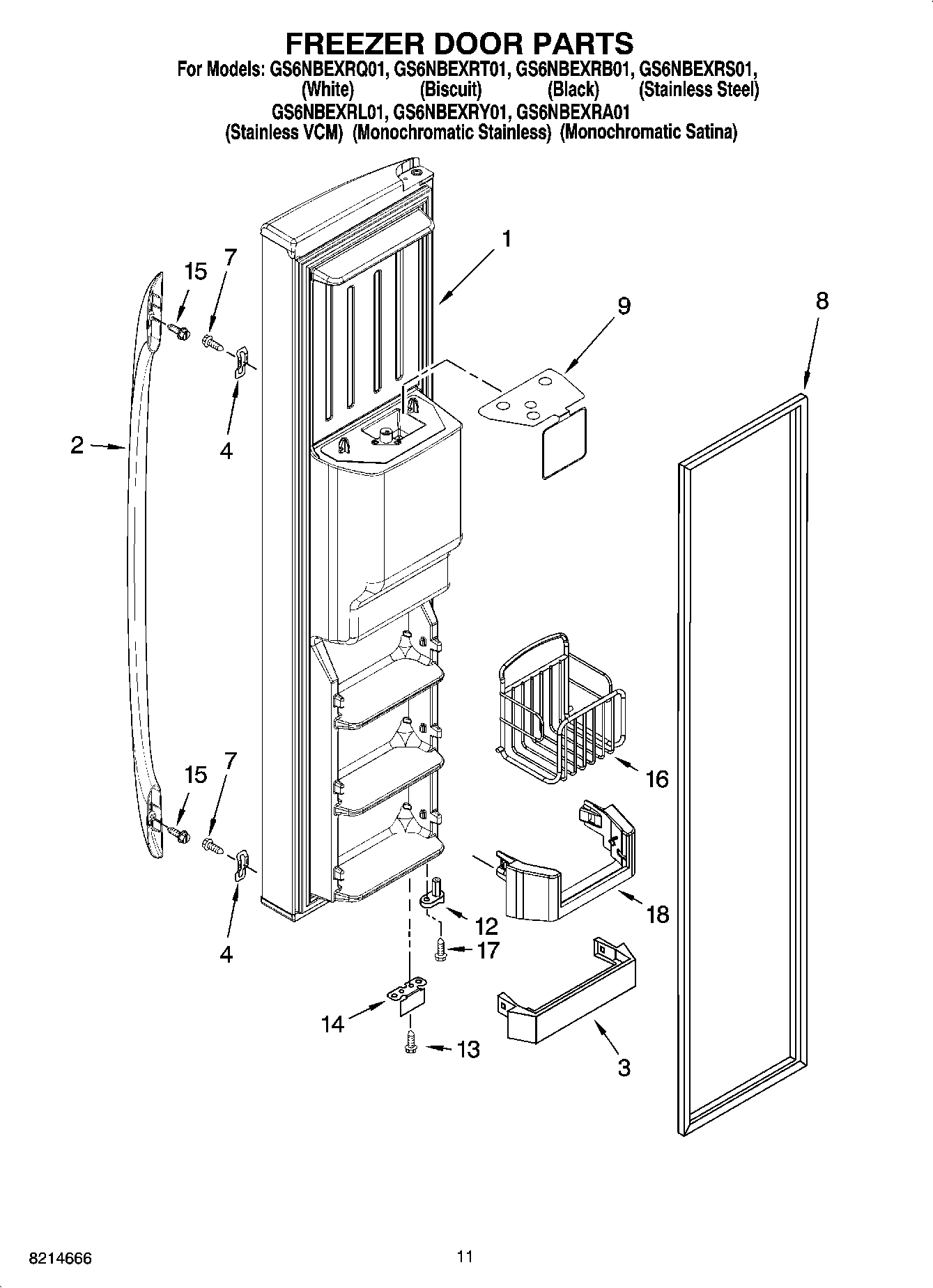

GS6NBEXRL01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Satina)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless VCM)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
2	Handle (Universal Silver)
2	Handle (White)
2	Handle (Biscuit)
2	Handle (Black)
3	WP2171157 Whirlpool Shelf Trim
4	WP2255411 Whirlpool Refrigerator Clip
7	WP489491 Whirlpool Refrigerator Screw
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	Safety Barrier
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
14	Bracket, Door Stop (Chrome)
15	SCREW
16	Basket, Tilt Out
17	WP3400012 Whirlpool Refrigerator Screw
18	Tube, Water Dispenser
18	TRIVET, TILT-OUT
18	Wire Assembly, Freezer Door
18	Following Parts Not Illustrated
