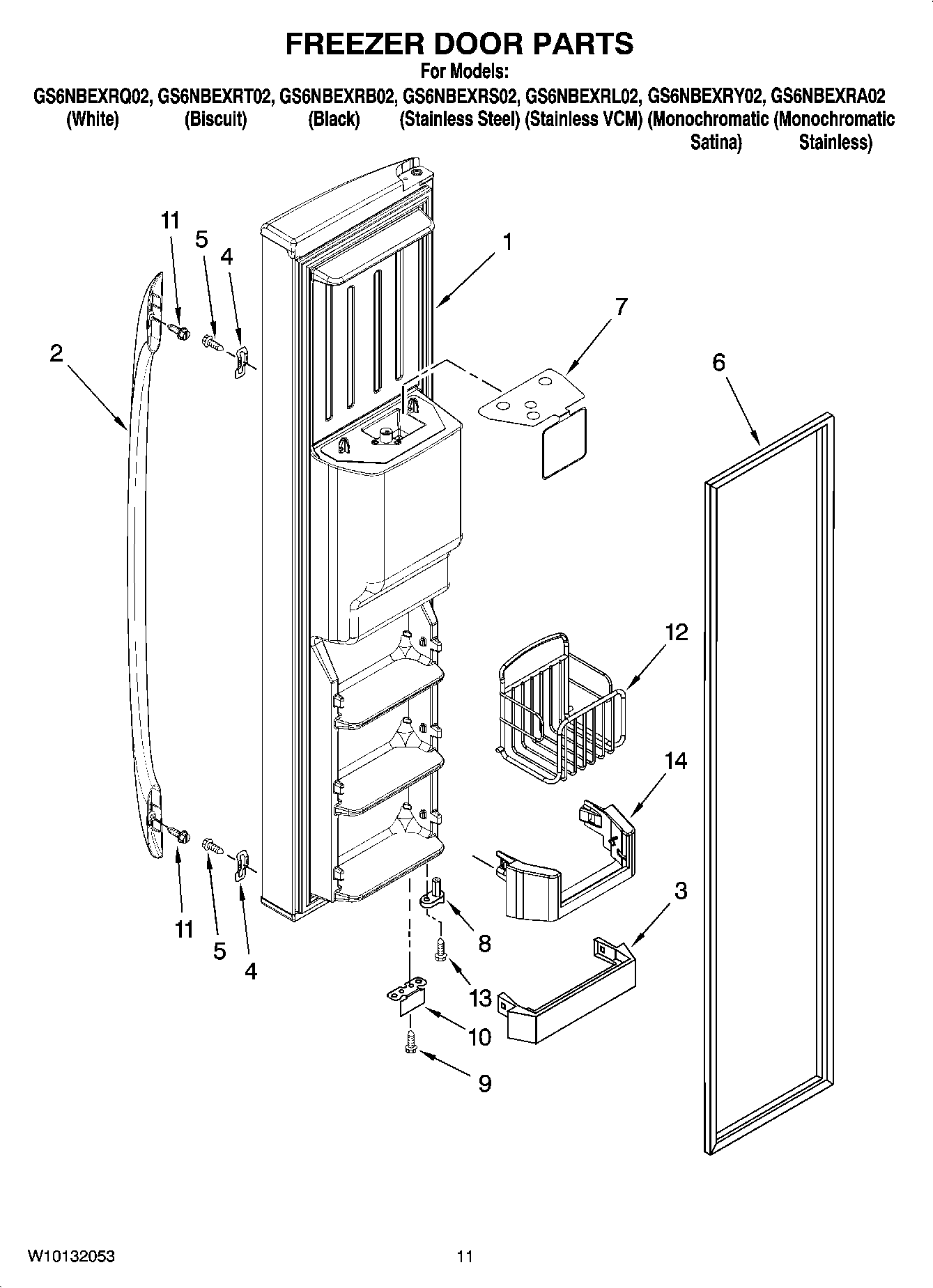

GS6NBEXRL02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Stainless VCM)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Monochromatic Satina)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 6 And Dispenser Front Parts) (Stainless Steel)
2	Handle (Universal Silver)
2	Handle (White)
2	Handle (Black)
2	Handle (Biscuit)
3	WP2171157 Whirlpool Shelf Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	WP489491 Whirlpool Refrigerator Screw
6	W10136735 Whirlpool Refrigerator Door Gasket
6	2159074 Whirlpool Door Gasket Seal
6	2159082 Whirlpool Freezer Door Gasket Black
7	Safety Barrier
8	WP2223752 Whirlpool Refrigerator Door Cam
9	WP489483 Whirlpool Screw
10	Bracket, Door Stop (Black)
10	Bracket, Door Stop (Chrome)
11	SCREW
12	Basket, Tilt Out
13	WP3400012 Whirlpool Refrigerator Screw
14	Wire Assembly, Freezer Door
14	TRIVET, TILT-OUT
14	Tube, Water Dispenser
14	Following Parts Not Illustrated
