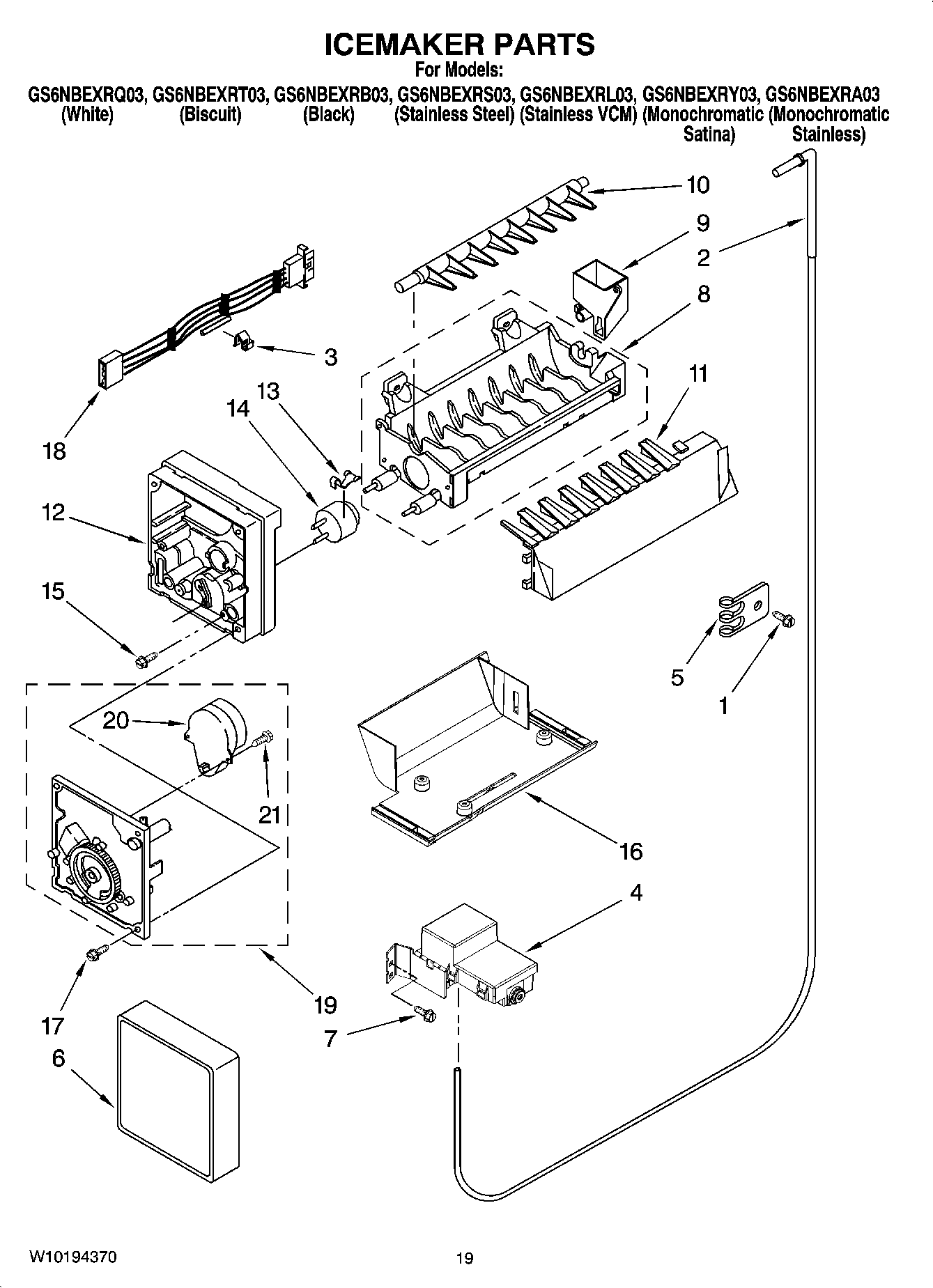

GS6NBEXRL03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GS6NBEXRL03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GS6NBEXRL03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI71082A4
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
4210463RW Whirlpool Refrigerator Coil Brush
CLEANER, (STAINLESS STEEL)
WPL ARI71080A8
WPL ARI71081A6
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
WPL ARI71083A1
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4WPW10159839 Whirlpool Refrigerator Inlet Valve
5WP488366 Whirlpool Refrigerator Clamp
6WPW10289690 Whirlpool Ice Maker Cover
7WPW10141625 Whirlpool Refrigerator Screw Assembly
8WPW10190929 Whirlpool Refrigerator Ice Maker Mold
9WPW10272168 Whirlpool Refrigerator Water Fill Cup
10WP627843 Whirlpool Refrigerator Ejector Arm
11W10297244 Whirlpool Refrigerator Arm Strip
12WP2195914 Whirlpool Refrigerator Ice Maker Housing
13WP2315522 Whirlpool Refrigerator Clip
14WP627985 Whirlpool Icemaker Cycling Thermostat
158533917 Whirlpool Refrigerator Screw
16BRACKET, ICEMAKER MOUNTING
17WP681249 Whirlpool Screw Assembly
18WP2187467 Whirlpool Refrigerator Wire Harness
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
