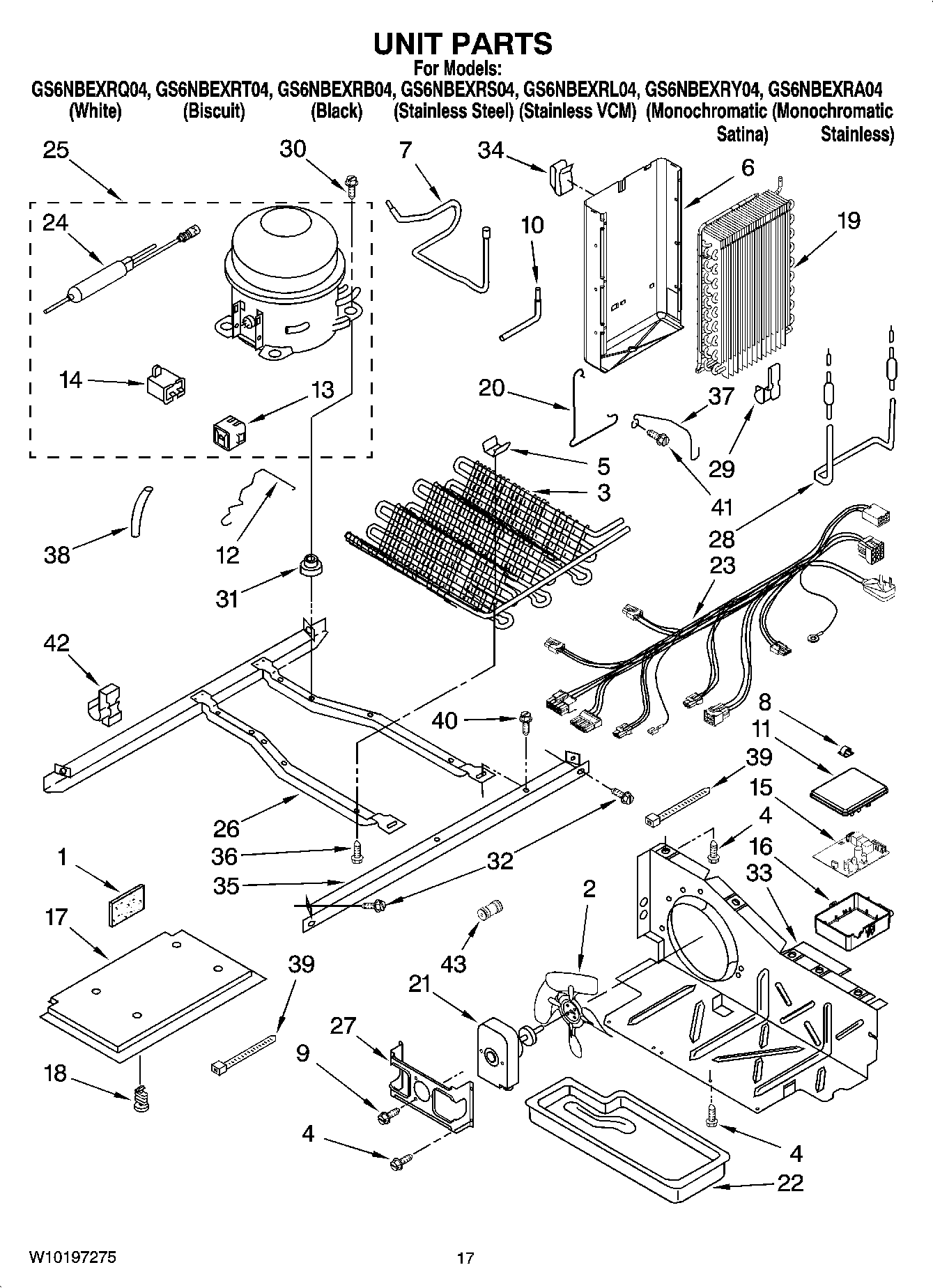

GS6NBEXRQ04 11 – UNIT PARTS

GS6NBEXRQ04 11 – UNIT PARTS

Written by

in

GS6NBEXRQ04 11 – UNIT PARTS

Products

PositionProduct
978026 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (1/2“)
876764 Whirlpool Refrigerator Primary Valve
WP978025 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978030 Whirlpool Refrigerator Valve
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6Heat Shield
7WP2205765 Whirlpool Refrigerator Tube
8WP1115374 Whirlpool Refrigerator Clip
9WP8533993 Whirlpool Refrigerator Screw
10W10858105 Whirlpool Refrigerator Tube
11Cover
122223314 Whirlpool Refrigerator Clip
13WP2304885 Whirlpool Refrigerator Start Device
14WPW10662129 Whirlpool Refrigerator Run Capacitor
15Electronic Control
16Box, Control
17Unit Cover, Bottom
18489396 Whirlpool Refrigerator Clip
19WP2188823 Whirlpool Refrigerator Evaporator
20Clamp
21WP2188874 Whirlpool Refrigerator Condenser Motor
22WPW10614158 Whirlpool Refrigerator Evaporator Tray
23Harness, Unit
24WPW10143759 Whirlpool Dryer Filter
25W10139460 Whirlpool Refrigerator Compressor
262304904 Whirlpool Frame Assembly
27WP2181929 Whirlpool Refrigerator Bracket
28WP2323198 Whirlpool Refrigerator Heater
29W11623163 Whirlpool Refrigerator Clip
31876811 Whirlpool Grommet
31WP4387558 Whirlpool Refrigerator Compressor Grommet
32489340 Whirlpool Refrigerator Screw
33W10896764 Whirlpool Refrigerator Air Baffle
34Clip, Heat Shield
352305374 Whirlpool Refrigerator Unit Rail
36W11544659 Whirlpool Refrigerator Screw
372260517 Whirlpool Fan Guard
38SLEEVE
39WPW10339879 Whirlpool Wire Tie
40WP489427 Whirlpool Refrigerator Screw
41WP489478 Whirlpool Refrigerator Screw
42W10169512 Whirlpool Clip
43WPW10271543 Whirlpool Refrigerator Connector
