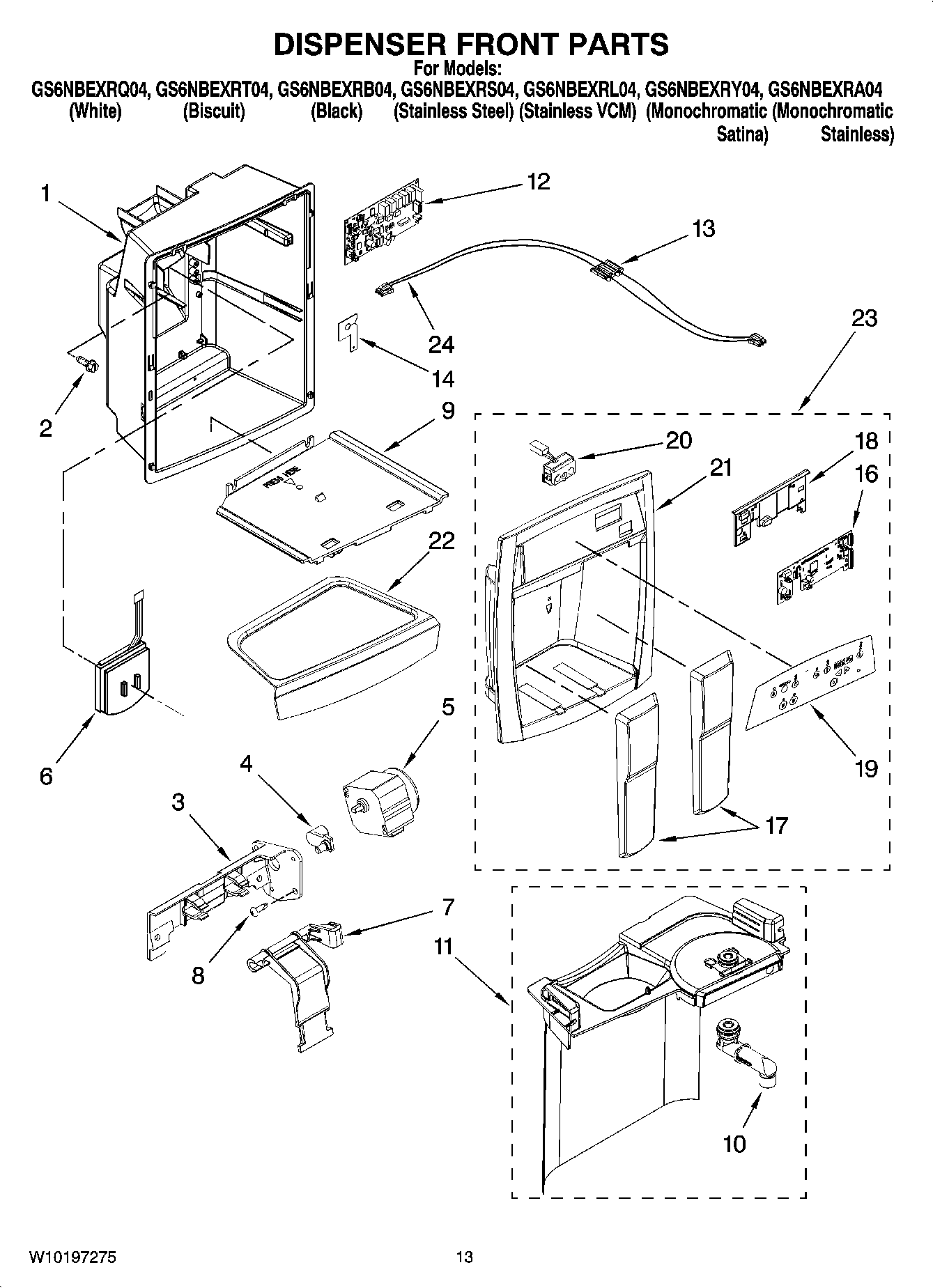

GS6NBEXRS04 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP939101 Whirlpool Refrigerator Plate
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (Apollo Grey)
9	Grille, Slide (Black)
9	Grille, Slide (Biscuit)
9	Grille, Slide (White)
10	Spigot
11	Separator Assembly (White)
11	Separator Assembly (Biscuit)
11	Separator Assembly (Black)
11	Separator Assembly (Apollo Gray)
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	Ferrite Bead
14	2305447 Whirlpool Refrigerator Clip
16	Electronic Control (User Interface)
17	Pad, Ice & Water (For Biscuit Model)
17	Pad, Ice & Water (For Black Model)
17	Pad, Ice & Water (For White Model)
17	Pad, Ice & Water (For Monochromatic Stainless Model)
18	2305219 Whirlpool Refrigerator Cover
19	Overlay, Front Cover (Not Available Order 23)
20	LED Assembly
21	Front Cover, Housing (Not Available, Order 23)
22	Tray, Housing (Universal Silver)
22	Tray, Housing (White)
22	Tray, Housing (Black)
22	Tray, Housing (Biscuit)
23	FRONT COVER ASSEMBLY (WHITE)
23	Front Cover Assembly (Includes Items 16, 17, 18, 19, 20, & 21) (Universal Silver)
23	Front Cover Assembly (Includes Items 16, 17, 18, 19, 20, & 21) (Biscuit)
23	FRONT COVER ASSEMBLY (BLACK)
24	W10178851 Whirlpool Refrigerator Jumper Wire
