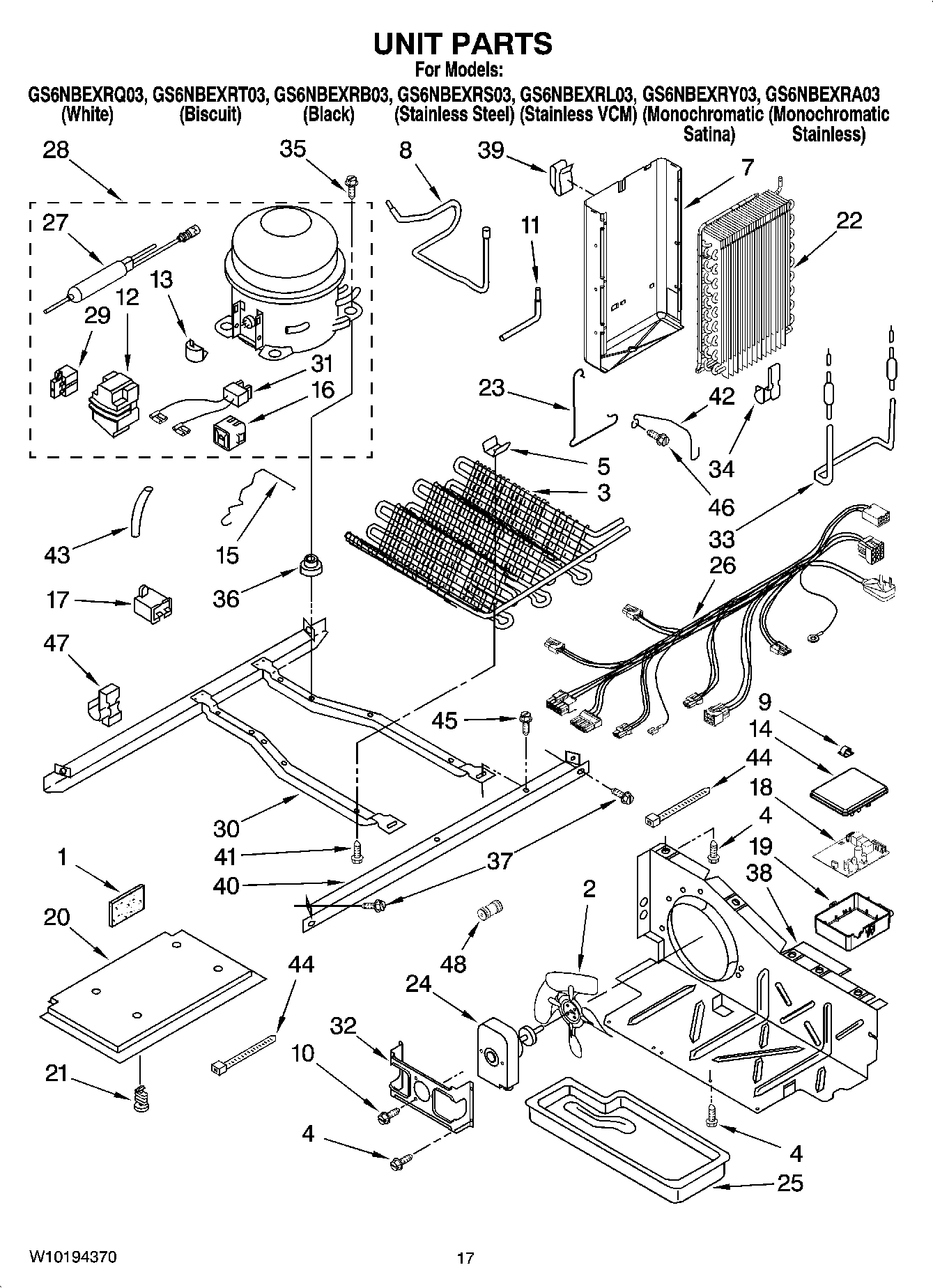

GS6NBEXRT03 11 – UNIT PARTS

GS6NBEXRT03 11 – UNIT PARTS

Written by

in

GS6NBEXRT03 11 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (1/2“)
	876764 Whirlpool Refrigerator Primary Valve
	WP978025 Whirlpool Refrigerator Valve
	WPL ARI71261A3
	VALVE, ACCESS (5/8“)
	Foll
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
7	Heat Shield
8	WP2205765 Whirlpool Refrigerator Tube
9	WP1115374 Whirlpool Refrigerator Clip
10	WP8533993 Whirlpool Refrigerator Screw
11	W10858105 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
14	Box Cover
15	2223314 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Electronic Control
19	Box, Control
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	W10139460 Whirlpool Refrigerator Compressor
29	W10920279 Whirlpool Refrigerator Start Relay
30	2304904 Whirlpool Frame Assembly
31	WP2172890 Whirlpool Refrigerator Wire
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
36	876811 Whirlpool Grommet
37	489340 Whirlpool Refrigerator Screw
38	W10896764 Whirlpool Refrigerator Air Baffle
39	Clip, Heat Shield
40	2305374 Whirlpool Refrigerator Unit Rail
41	W11544659 Whirlpool Refrigerator Screw
42	2260517 Whirlpool Fan Guard
43	SLEEVE
44	WPW10339879 Whirlpool Wire Tie
45	WP489427 Whirlpool Refrigerator Screw
46	WP489478 Whirlpool Refrigerator Screw
47	W10169512 Whirlpool Clip
48	WPW10271543 Whirlpool Refrigerator Connector
