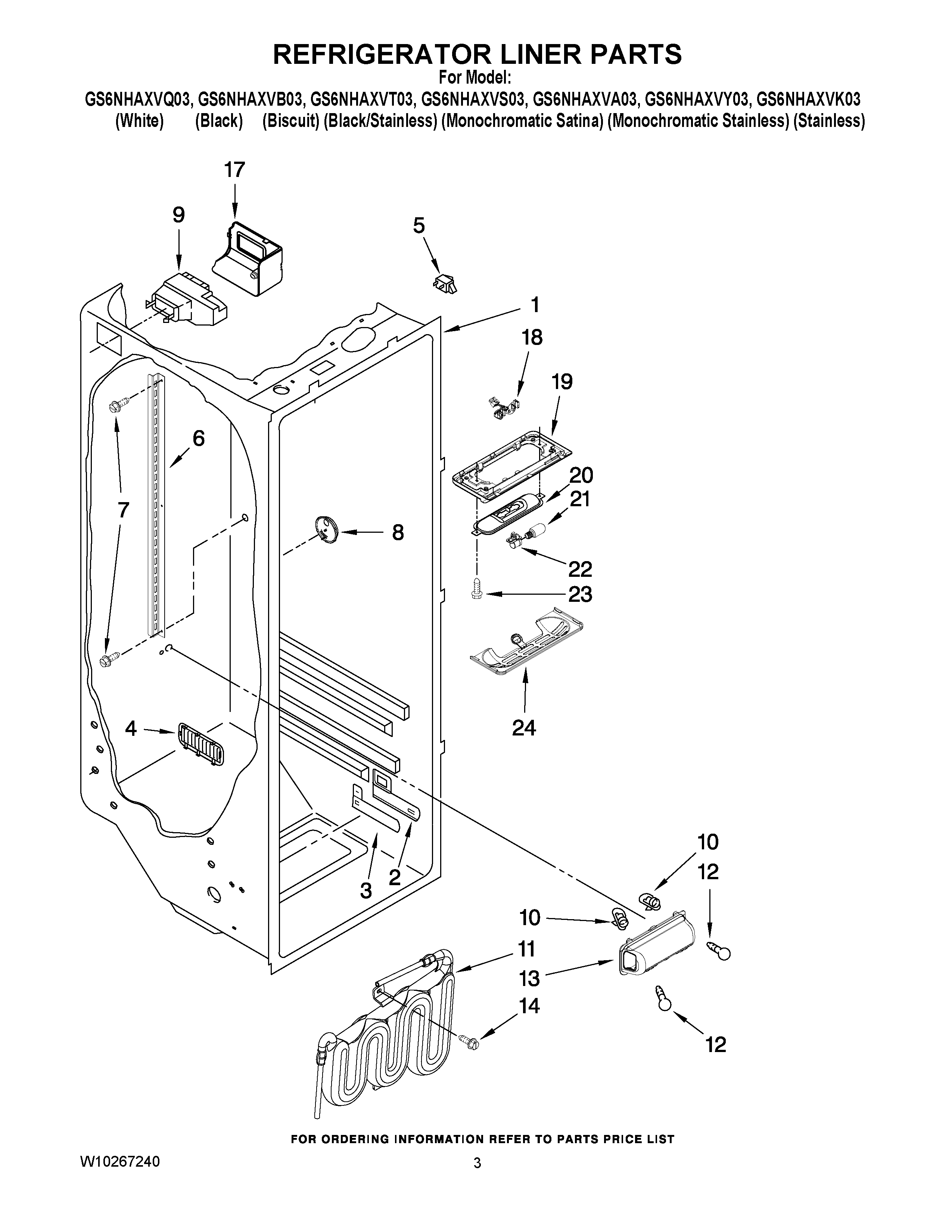

GS6NHAXVA03 02 – REFRIGERATOR LINER PARTS

GS6NHAXVA03 02 – REFRIGERATOR LINER PARTS

Written by

in

GS6NHAXVA03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11384469 Whirlpool Door Switch
6Shelf Ladder
7WP489478 Whirlpool Refrigerator Screw
8Door Control Asm
9W10899382 Whirlpool Damper Control Assembly
104387478 Whirlpool Refrigerator Light Socket
11RESERVOIR
12RANGE ONLY 40W 120V APPL BULB
13W11239891 Whirlpool Refrigerator Light Lens
14W10141518 Whirlpool Refrigerator Screw
17W10128735 Whirlpool Refrigerator Cover
182310527 Whirlpool Refrigerator Wire Jumper
19W10284481 Whirlpool Refrigerator Trim
202223680 Whirlpool Refrigerator Shield
21WPW10191429 Whirlpool Refrigerator Socket
22WPA3073101 Whirlpool Light Bulb
23WP3400906 Whirlpool Refrigerator Screw
24WP2223506 Whirlpool Refrigerator Light Lens
