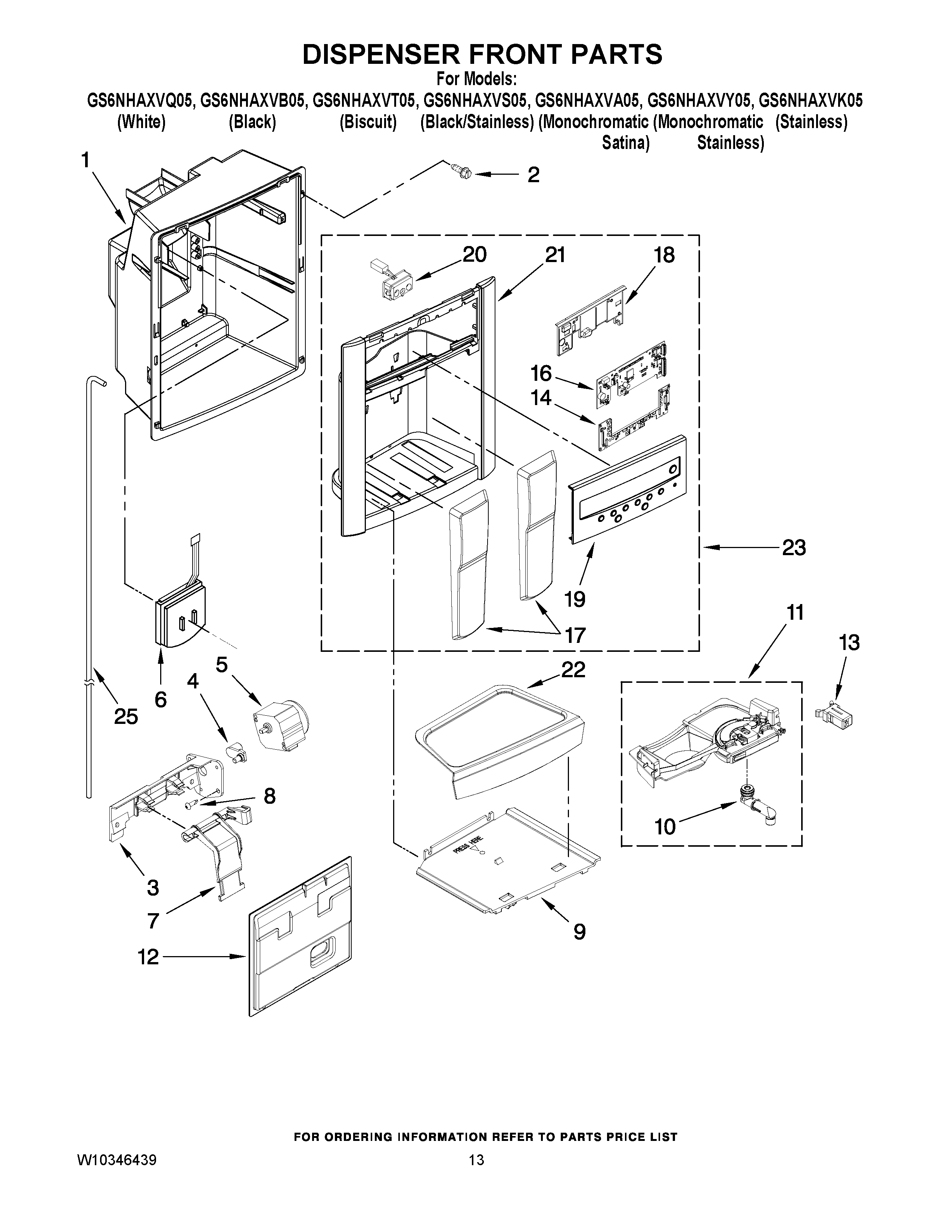

GS6NHAXVA05 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	WP8281163 Whirlpool Refrigerator Screw
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10205978 Whirlpool Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (White)
9	Grille, Slide (Biscuit)
9	GRILLE, SLIDE (GREY)
9	Grille, Slide (Black)
10	Spigot
11	Separator Assembly (White)
11	Separator Assembly (Biscuit)
11	Separator Assembly (Stainless)
11	Separator Assembly (Black)
11	SEPARATOR ASSEMBLY (GREY)
12	Cover, Dispenser Motor
13	WP2223877 Whirlpool Door Hook
14	Barrier, Moisture
16	Electronic Control (User Interface)
17	Pad, Ice & Water (Black, Stainless Model)
17	Pad, Ice & Water (White Model)
17	Pad, Ice & Water (Mono Stainless Mono Satina VCM and Biscuit Models)
18	COVER, BOARD
19	Facia, Front (Black)
19	Facia, Front (Biscuit)
19	Facia, Front (Nickel One)
19	Facia, Front (Stainless)
19	Facia, Front (White)
20	LED ASSEMBLY
21	CABINET (NOT A SERVICEABLE PART)
22	TRAY, HOUSING (STAINLESS)
22	Tray, Housing (White)
22	Tray, Housing (Black)
22	Tray, Housing (Biscuit)
22	Tray, Housing (Nickel One)
23	WPL 2322702W
23	WPL 2322702T
23	WPL 2322702S
23	WPL 2322702NO
23	Front Cover Assembly (Includes Items 14, 16, 17, 18, 19, 20, & 21) (B
25	WPL W10291322
