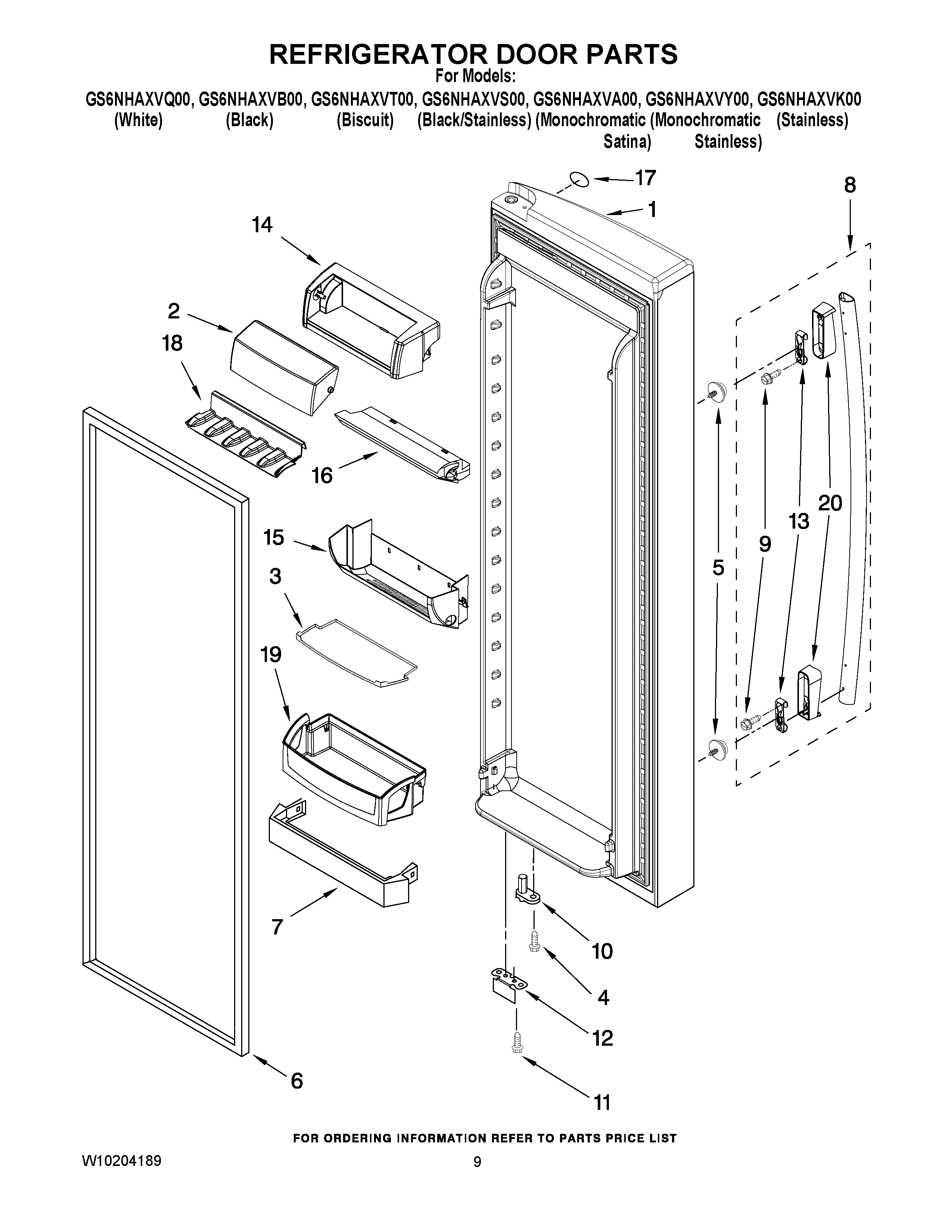

GS6NHAXVB00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM No.6) (BISCUIT)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (Mono Satina)
1	Refrigerator Door (Includes Item 6) (Monochromatic Stainless)
1	REFRIGERATOR DOOR (INCLUDES ITEM No.6) (STAINLESS/BLACK)
2	Dairy Door
3	Mat, Bin (2)
4	WP3400012 Whirlpool Refrigerator Screw
5	WPW10288153 Whirlpool Refrigerator Screw
6	2159075 Whirlpool Door Gasket Seal
6	2159083 Whirlpool Gasket Door
6	WPW10136734 Whirlpool Refrigerator Door Gasket
7	WP2156022 Whirlpool Refrigerator Door Trim
8	WPW10257120 Whirlpool Refrigerator Handle
8	W10210944A Whirlpool Refrigerator Handle M
8	W10210943A Whirlpool Refrigerator Handle
8	W10210942A Whirlpool Refrigerator Handle
9	WP8533988 Whirlpool Screw Fastener
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop
12	Bracket, Door Stop
13	WP2255411 Whirlpool Refrigerator Clip
14	Door Compartment
15	Frame, Can Rack
16	Air Diffuser Asm
17	Nameplate
18	Floor, Can Rack
19	Shelf Bin (3)
20	W10127813 Whirlpool Refrigerator Handle Endcap
20	Handle, Endcap (Black)
20	Handle, Endcap (Stainless, All)
20	Handle, Endcap (Biscuit)
