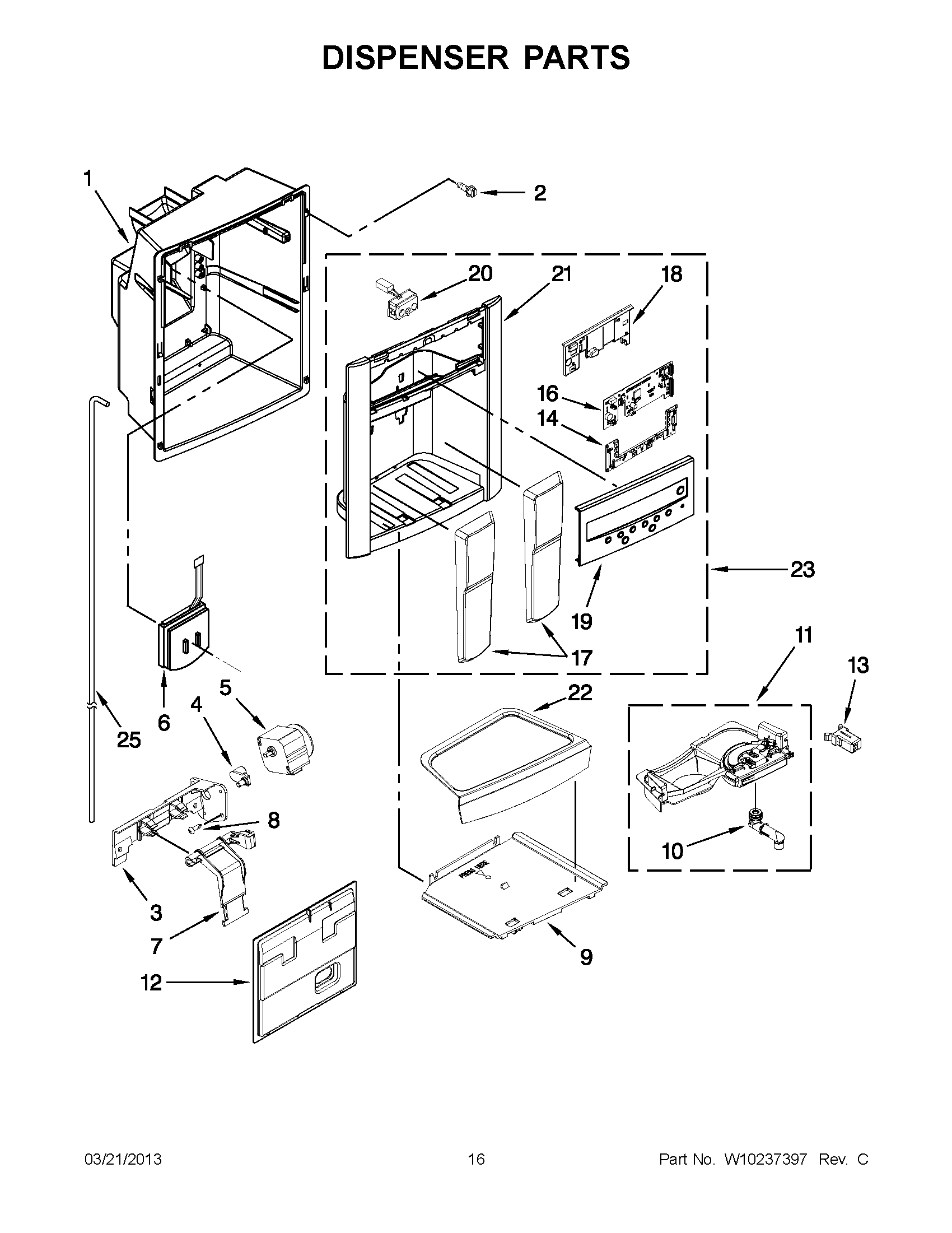

GS6NHAXVB01 08 – DISPENSER PARTSadmin2025-04-26T11:40:15+00:00GS6NHAXVB01 08 – DISPENSER PARTS
Products
| Position | Product |
|---|
| 2 | WP8281163 Whirlpool Refrigerator Screw |
| 3 | WP2305202 Whirlpool Refrigerator Bracket |
| 4 | WP2305242 Whirlpool Refrigerator Connector |
| 5 | WPW10205978 Whirlpool Motor |
| 6 | WP2305258 Whirlpool Dispenser Door Assembly |
| 7 | WP2305204 Whirlpool Refrigerator Support |
| 8 | WP4449745 Whirlpool Screw |
| 9 | Grille, Slide (White) |
| 9 | GRILLE, SLIDE (GREY) |
| 9 | Grille, Slide (Biscuit) |
| 9 | Grille, Slide (Black) |
| 10 | Spigot |
| 11 | Separator Assembly (White) |
| 11 | Separator Assembly (Black) |
| 11 | Separator Assembly (Biscuit) |
| 11 | Separator Assembly (Stainless) |
| 11 | SEPARATOR ASSEMBLY (GREY) |
| 12 | Cover, Dispenser Motor |
| 13 | WP2223877 Whirlpool Door Hook |
| 14 | Barrier, Moisture |
| 16 | Electronic Control (User Interface) |
| 17 | Pad, Ice & Water (Black, Stainless Model) |
| 17 | Pad, Ice & Water (White Model) |
| 17 | Pad, Ice & Water (Mono Stainless Mono Satina VCM and Biscuit Models) |
| 18 | COVER, BOARD |
| 19 | Facia, Front (White) |
| 19 | Facia, Front (Biscuit) |
| 19 | Facia, Front (Stainless) |
| 19 | Facia, Front (Nickel One) |
| 19 | Facia, Front (Black) |
| 20 | LED Assembly |
| 21 | CABINET (NOT A SERVICEABLE PART) |
| 22 | Tray, Housing (White) |
| 22 | TRAY, HOUSING (STAINLESS) |
| 22 | Tray, Housing (Biscuit) |
| 22 | Tray, Housing (Nickel One) |
| 22 | Tray, Housing (Black) |
| 23 | Front Cover Assembly (Includes Items 14, 16, 17, 18, 19, 20, & 21) (B |
| 23 | WPL 2322702NO |
| 23 | WPL 2322702S |
| 23 | WPL 2322702T |
| 23 | WPL 2322702W |
| 25 | WPL 2323606 |
