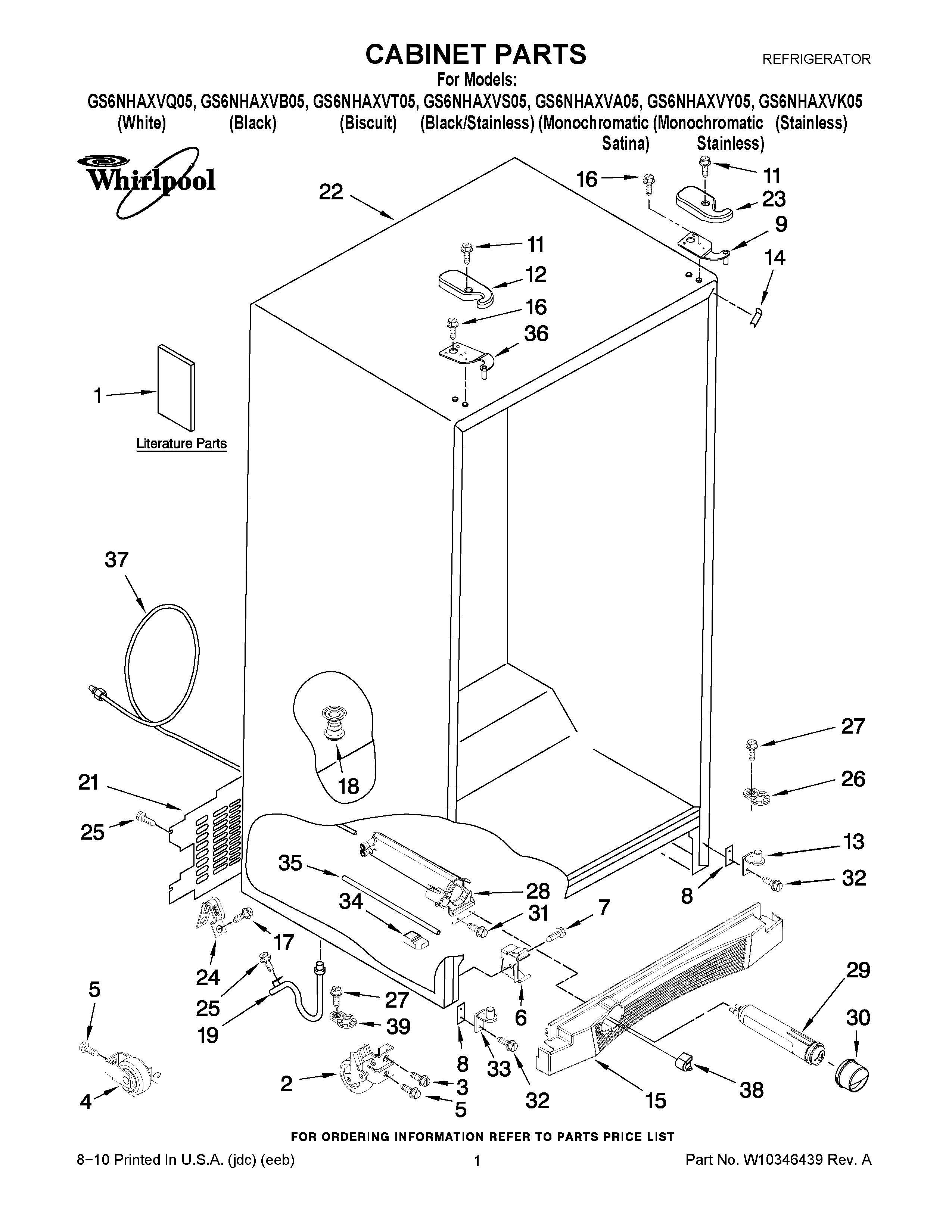

GS6NHAXVB05 01 – CABINET PARTS

GS6NHAXVB05 01 – CABINET PARTS

Written by

in

GS6NHAXVB05 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	ENERGY GUIDE
1	USE & CARE GUIDE
1	Service and Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	2203407AP Whirlpool Refrigerator Cover
12	WP2203407B Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
12	2203407T Whirlpool Refrigerator Cover
13	W10138965 Whirlpool Refrigerator Door Hinge
14	Filler, Wrapper (Biscuit)
14	Filler, Wrapper (Black)
14	Filler, Wrapper (Apollo Grey)
14	Filler, Wrapper (White)
15	Grille (White)
15	Grille (Biscuit)
15	Grille (Black)
15	Grille (Midnight Grey)
16	WP489497 Whirlpool Screw
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
21	WP2188755 Whirlpool Rear Panel
22	CABINET (NOT A SERVICEABLE PART)
23	Hinge Cover (Biscuit)
23	2203408AP Whirlpool Refrigerator Cover
23	WP2203408B Whirlpool Refrigerator Cover
23	WP2203408W Whirlpool Refrigerator Cover
24	549193 Whirlpool Refrigerator Power Clamp
25	SCREW
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP2260518MG Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	Cap, Water Filter (Biscuit)
30	WP2260518B Whirlpool Water Filter Cap
31	WP489500 Whirlpool Refrigerator Screw
33	2303141 Whirlpool Refrigerator Door Hinge
34	Block, Housing Support
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	WP2203770 Whirlpool Refrigerator Door Hinge
37	TUBE, FILTER INLET
38	WP2260503B Whirlpool Refrigerator Button
38	2260503W Whirlpool Refrigerator Button
38	2260503MG Whirlpool Refrigerator Button
39	WP2223751 Whirlpool Refrigerator Door Cam
