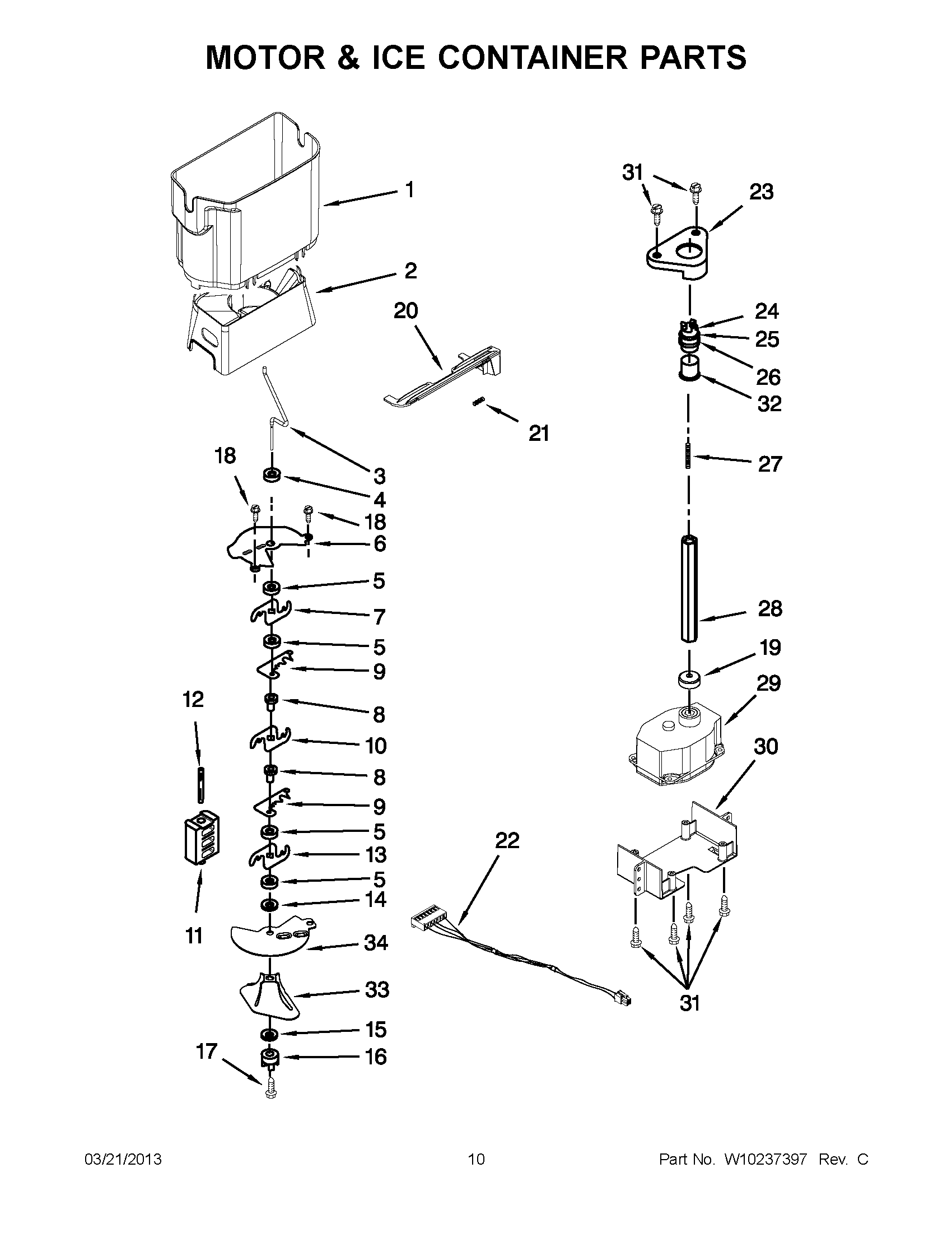

GS6NHAXVK01 05 – MOTOR & ICE CONTAINER PARTS

Products

Position	Product
1	Ice Bin
2	Crusher Bin
3	W10852517 Whirlpool Refrigerator Ice Auger
4	Washer
5	WP1119007 Whirlpool Refrigerator Spacer
6	W10139321 Whirlpool Refrigerator Cover
7	W10278733 Whirlpool Refrigerator Blade
8	WP1119005 Whirlpool Refrigerator Spacer
9	Blade, Fixed
10	W10278732 Whirlpool Refrigerator Blade
11	2317239 Whirlpool Refrigerator Blade Block
12	489229 Whirlpool Refrigerator Roll Pin
13	W10278731 Whirlpool Refrigerator Blade
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	WP2220457 Whirlpool Refrigerator Ice Bin Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	2323357 Whirlpool Refrigerator Washer
20	Latch, Bin
21	WP2198608 Whirlpool Refrigerator Spring
22	W10193352 Whirlpool Refrigerator Dispenser Harness
23	Holder
24	WP2220458 Whirlpool Drive Cam
25	WP2198628 Whirlpool Door Seal
26	WP2212370 Whirlpool Washer
27	W10852956 Whirlpool Refrigerator Spring
28	Drive Shaft
29	WP2323603 Whirlpool Refrigerator Motor
30	Bracket, Motor
31	WP8281163 Whirlpool Refrigerator Screw
32	WP2212365 Whirlpool Refrigerator Sleeve
33	2317243 Whirlpool Refrigerator Wiper
34	2317250 Whirlpool Refrigerator Divider
100	Ice Container (Complete)
