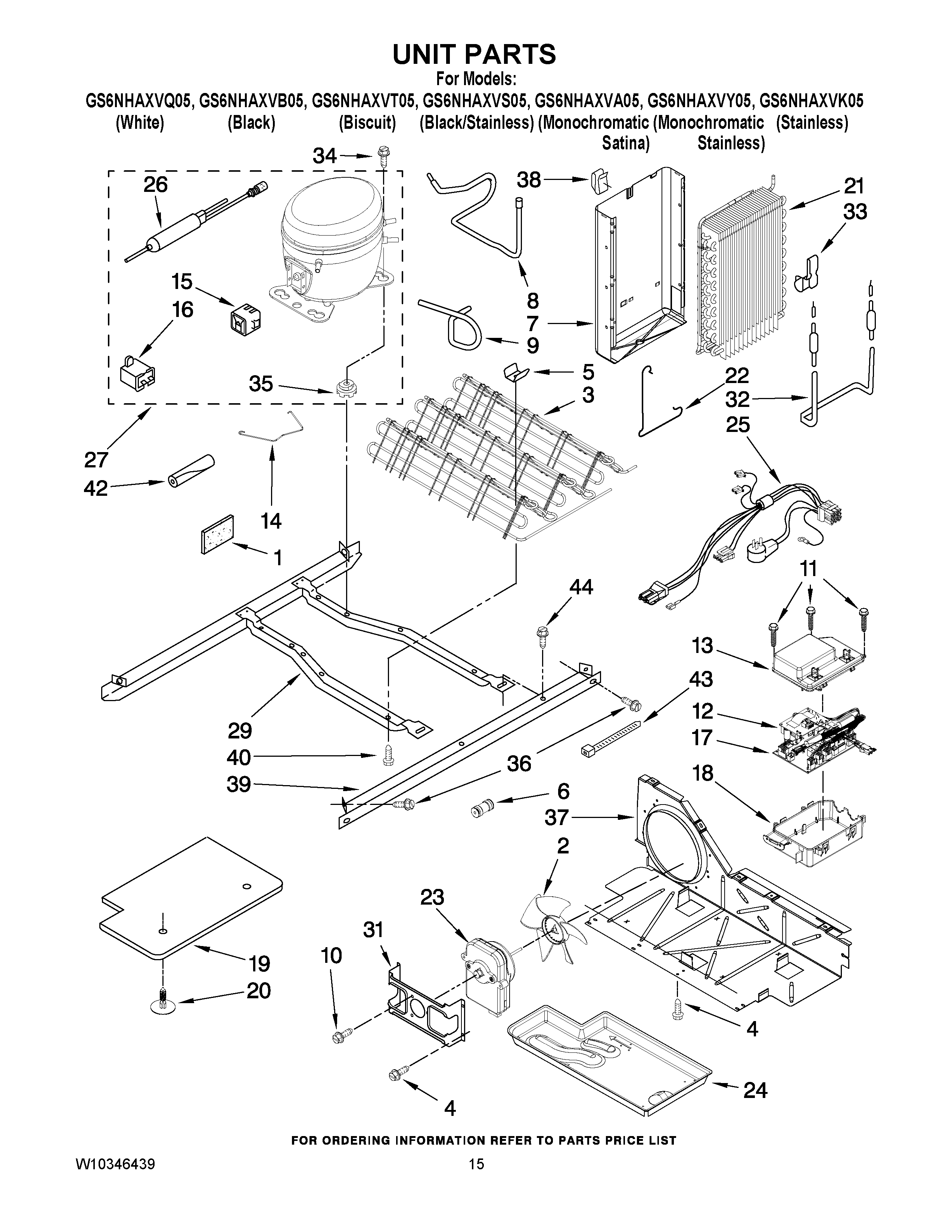

GS6NHAXVS05 09 – UNIT PARTS

GS6NHAXVS05 09 – UNIT PARTS

Written by

in

GS6NHAXVS05 09 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
1W11553819 Whirlpool Refrigerator Insulation
2W10156818 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WPW10271543 Whirlpool Refrigerator Connector
7Heat Shield
8WP2205765 Whirlpool Refrigerator Tube
9W10858105 Whirlpool Refrigerator Tube
10WP8533993 Whirlpool Refrigerator Screw
11WPW10171469 Whirlpool Refrigerator Screw
12WPW10356040-includeCORE Whirlpool WPW10356040 Refrigerator Electronic Control Board + Core
132323188 Whirlpool Refrigerator Cover
14W10204187 Whirlpool Refrigerator Retainer
15WPW10189190 Whirlpool Start Device
16WPW10662129 Whirlpool Refrigerator Run Capacitor
17CONTROL, ELECTRONIC
182323186 Whirlpool Refrigerator Housing
19Unit Cover, Bottom
20489396 Whirlpool Refrigerator Clip
21WP2188823 Whirlpool Refrigerator Evaporator
22Clamp
23WP2188874 Whirlpool Refrigerator Condenser Motor
24WPW10614158 Whirlpool Refrigerator Evaporator Tray
25W10291104 Whirlpool Refrigerator Wire Harness
26WPW10143759 Whirlpool Dryer Filter
27W10139462 Whirlpool Refrigerator Compressor
292304904 Whirlpool Frame Assembly
31WP2181929 Whirlpool Refrigerator Bracket
32WP2323198 Whirlpool Refrigerator Heater
33W11623163 Whirlpool Refrigerator Clip
35876811 Whirlpool Grommet
36489340 Whirlpool Refrigerator Screw
37W10896764 Whirlpool Refrigerator Air Baffle
38Clip, Heat Shield
392305374 Whirlpool Refrigerator Unit Rail
40W11544659 Whirlpool Refrigerator Screw
42SLEEVE
43WPW10339879 Whirlpool Wire Tie
44WP489427 Whirlpool Refrigerator Screw
