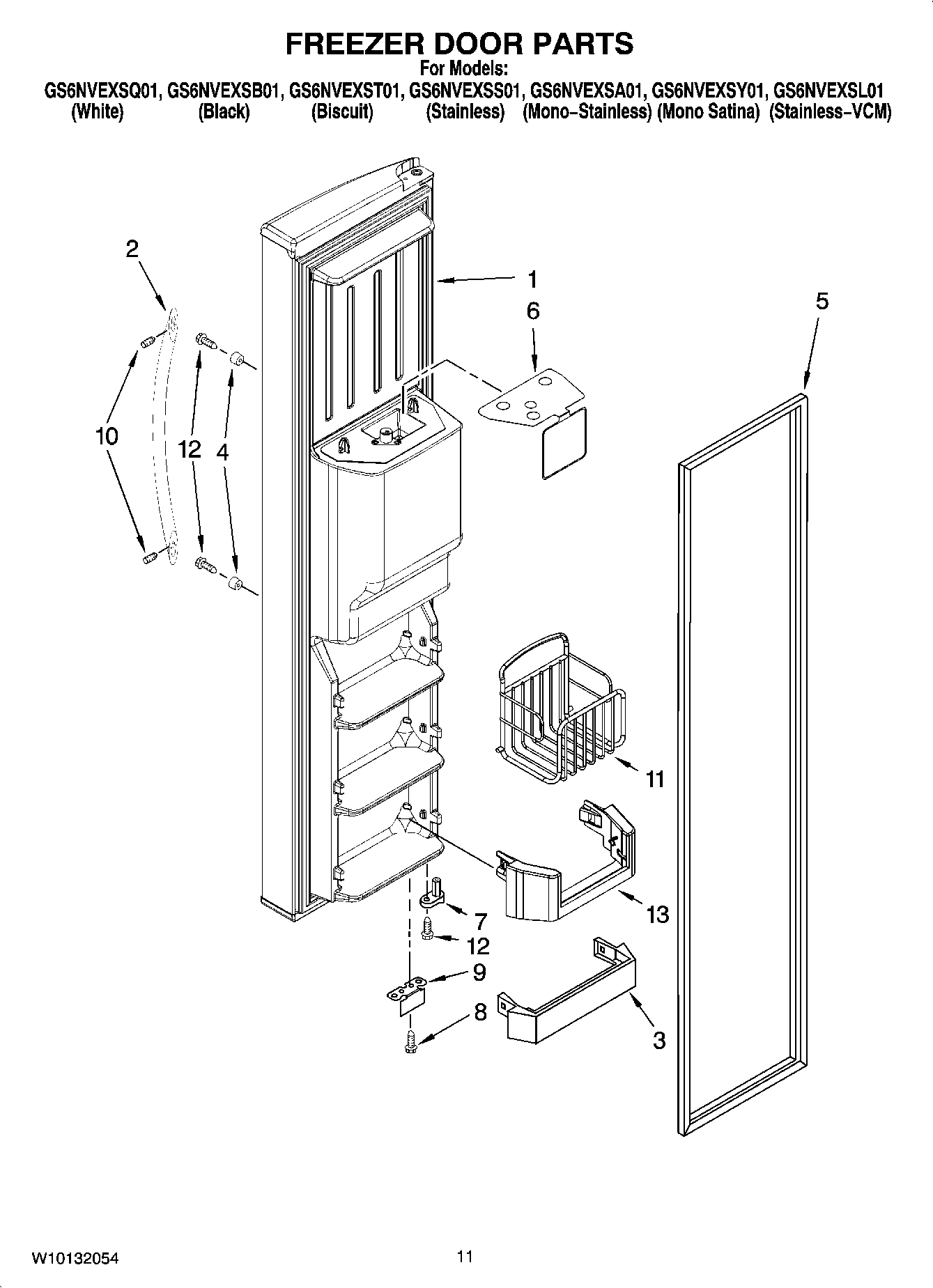

GS6NVEXSB01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 5) (Mono Stainless)
1	Freezer Door (Includes 5) (Mono Satina)
1	Freezer Door (Includes 5) (Stainless)
1	Freezer Door (Includes 5) (Biscuit)
1	Freezer Door (Includes 5) (Stainless VCM)
1	Freezer Door (Includes 5) (White)
1	Freezer Door (Includes 5) (Black)
2	WP2254600B Whirlpool Refrigerator Handle
2	Handle (Stainless)
2	Handle (Biscuit)
2	WP2254600W Whirlpool Refrigerator Handle
3	WP2171157 Whirlpool Shelf Trim
4	WPW10170540 Whirlpool Screw
5	2159082 Whirlpool Freezer Door Gasket Black
5	W10136735 Whirlpool Refrigerator Door Gasket
5	2159074 Whirlpool Door Gasket Seal
6	Safety Barrier
7	WP2223752 Whirlpool Refrigerator Door Cam
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Black)
9	Bracket, Door Stop (Chrome)
10	SCREW
11	Basket, Tilt Out
12	WP3400012 Whirlpool Refrigerator Screw
13	Following Parts Not Illustrated
13	Wire Assembly, Freezer Door
13	Tube, Water Dispenser
13	TRIVET, TILT-OUT
