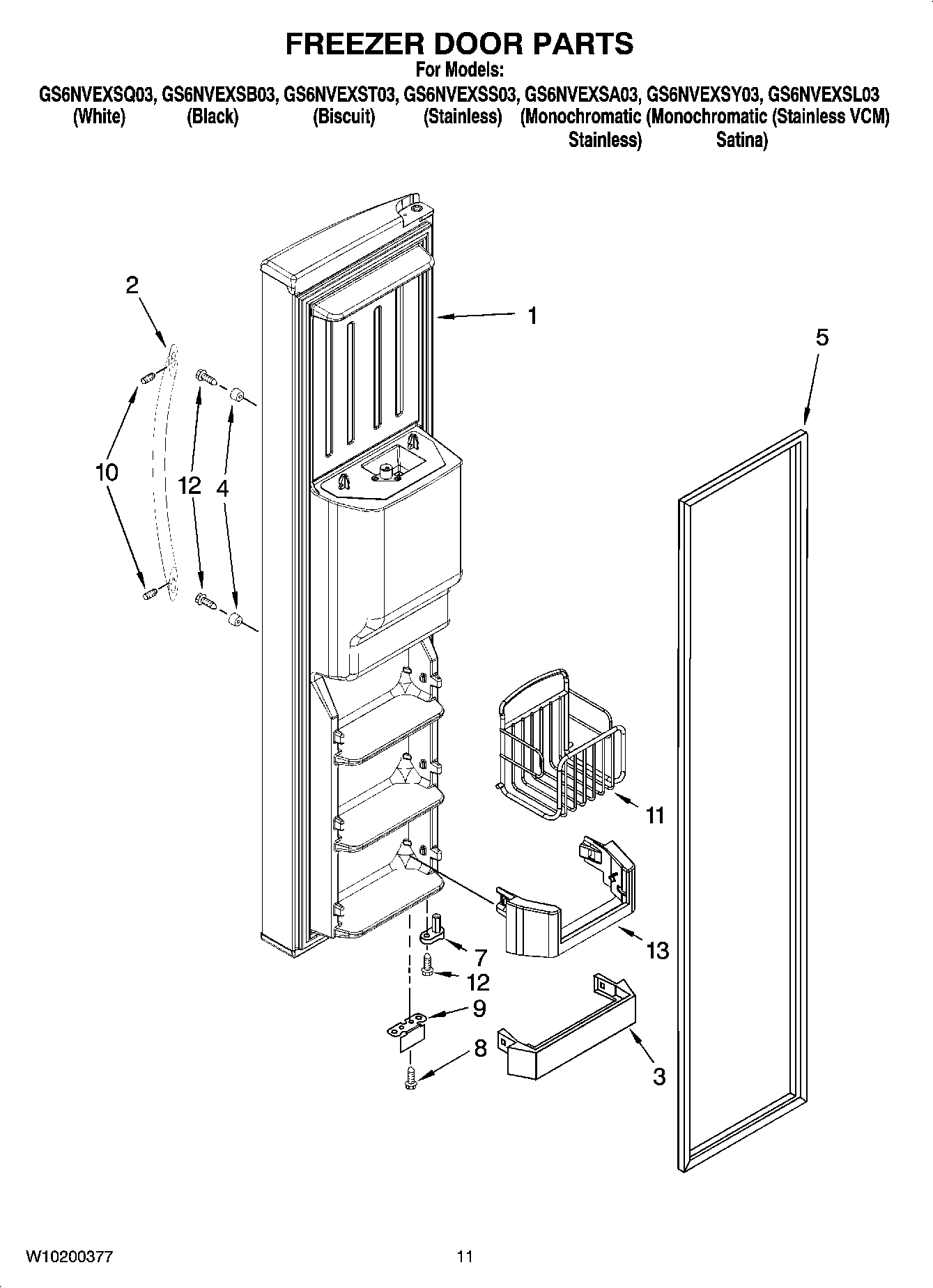

GS6NVEXSB03 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Tube, Water Dispenser
	Wire Assembly, Freezer Door
1	Freezer Door (Includes 5) (White)
1	Freezer Door (Includes 5) (Black)
1	Freezer Door (Includes 5) (Biscuit)
1	Freezer Door (Includes 5) (Stainless)
1	Freezer Door (Includes 5) (Stainless VCM)
1	Freezer Door (Includes 5) (Mono Satina)
1	Freezer Door (Includes 5) (Mono Stainless)
2	Handle (Biscuit)
2	WP2254600W Whirlpool Refrigerator Handle
2	Handle (Stainless)
2	WP2254600B Whirlpool Refrigerator Handle
3	WP2171157 Whirlpool Shelf Trim
4	WPW10170540 Whirlpool Screw
5	W10136735 Whirlpool Refrigerator Door Gasket
5	2159074 Whirlpool Door Gasket Seal
5	2159082 Whirlpool Freezer Door Gasket Black
7	WP2223752 Whirlpool Refrigerator Door Cam
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Black)
9	Bracket, Door Stop (Chrome)
10	SCREW
11	Basket, Tilt Out
12	WP3400012 Whirlpool Refrigerator Screw
13	TRIVET, TILT-OUT
