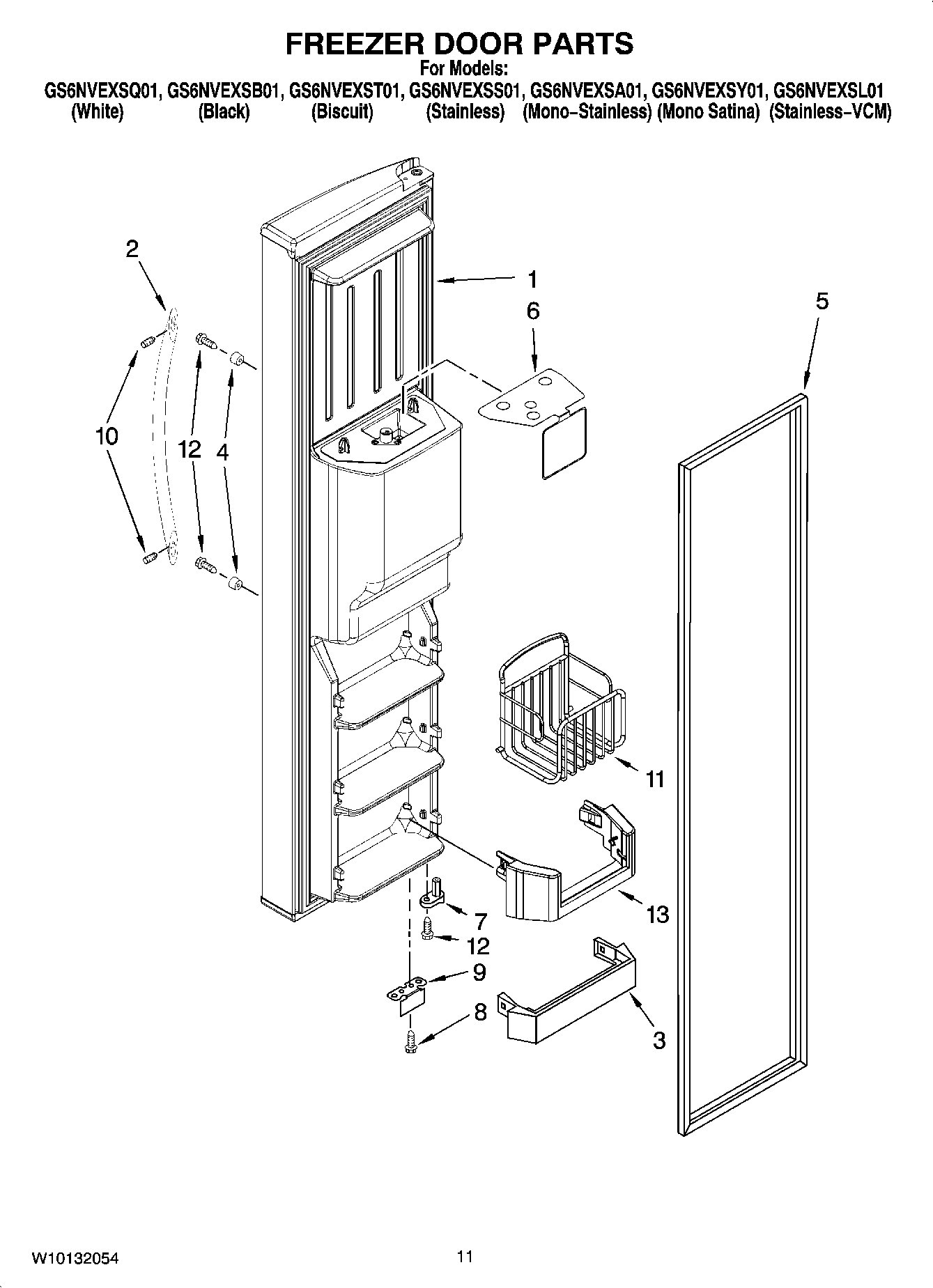

GS6NVEXSL01 07 – FREEZER DOOR PARTS

GS6NVEXSL01 07 – FREEZER DOOR PARTS

Written by

in

GS6NVEXSL01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 5) (Mono Stainless)
1Freezer Door (Includes 5) (Mono Satina)
1Freezer Door (Includes 5) (Stainless)
1Freezer Door (Includes 5) (Biscuit)
1Freezer Door (Includes 5) (Stainless VCM)
1Freezer Door (Includes 5) (White)
1Freezer Door (Includes 5) (Black)
2WP2254600B Whirlpool Refrigerator Handle
2Handle (Stainless)
2Handle (Biscuit)
2WP2254600W Whirlpool Refrigerator Handle
3WP2171157 Whirlpool Shelf Trim
4WPW10170540 Whirlpool Screw
52159082 Whirlpool Freezer Door Gasket Black
5W10136735 Whirlpool Refrigerator Door Gasket
52159074 Whirlpool Door Gasket Seal
6Safety Barrier
7WP2223752 Whirlpool Refrigerator Door Cam
8WP489483 Whirlpool Screw
9Bracket, Door Stop (Black)
9Bracket, Door Stop (Chrome)
10SCREW
11Basket, Tilt Out
12WP3400012 Whirlpool Refrigerator Screw
13Following Parts Not Illustrated
13Wire Assembly, Freezer Door
13Tube, Water Dispenser
13TRIVET, TILT-OUT
