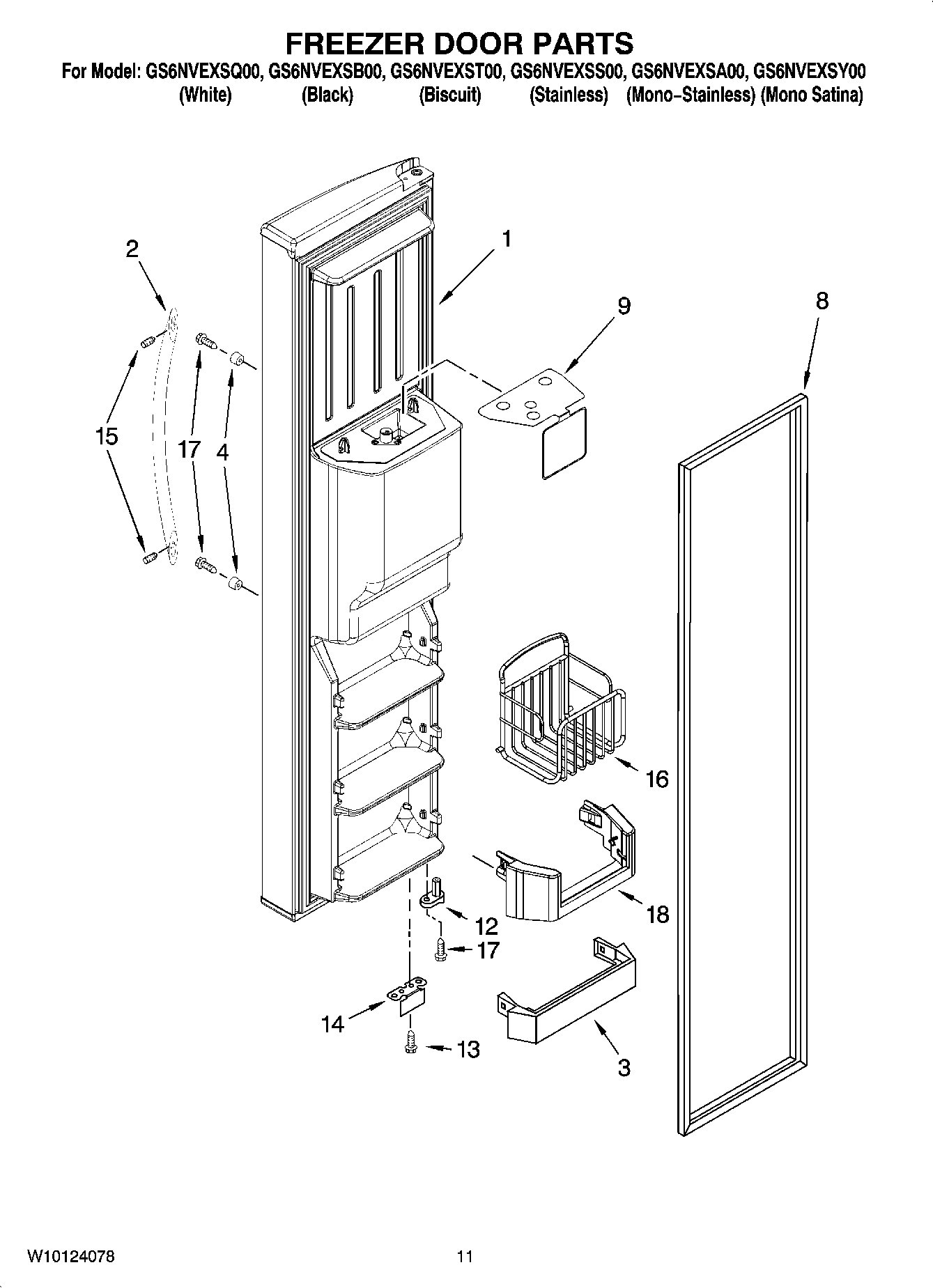

GS6NVEXSQ00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 5) (Biscuit)
1	Freezer Door (Includes 5) (Black)
1	Freezer Door (Includes 5) (White)
1	Freezer Door (Includes 5) (Mono Stainless)
1	Freezer Door (Includes 5) (Mono Satina)
1	Freezer Door (Includes 5) (Stainless)
2	Handle (Biscuit)
2	WP2254600B Whirlpool Refrigerator Handle
2	WP2254600W Whirlpool Refrigerator Handle
2	Handle (Stainless)
3	WP2171157 Whirlpool Shelf Trim
4	WPW10170540 Whirlpool Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	Safety Barrier
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
14	Bracket, Door Stop (Black)
15	SCREW
16	Basket, Tilt Out
17	WP3400012 Whirlpool Refrigerator Screw
18	Tube, Water Dispenser
18	Wire Assembly, Freezer Door
18	TRIVET, TILT-OUT
18	Following Parts Not Illustrated
