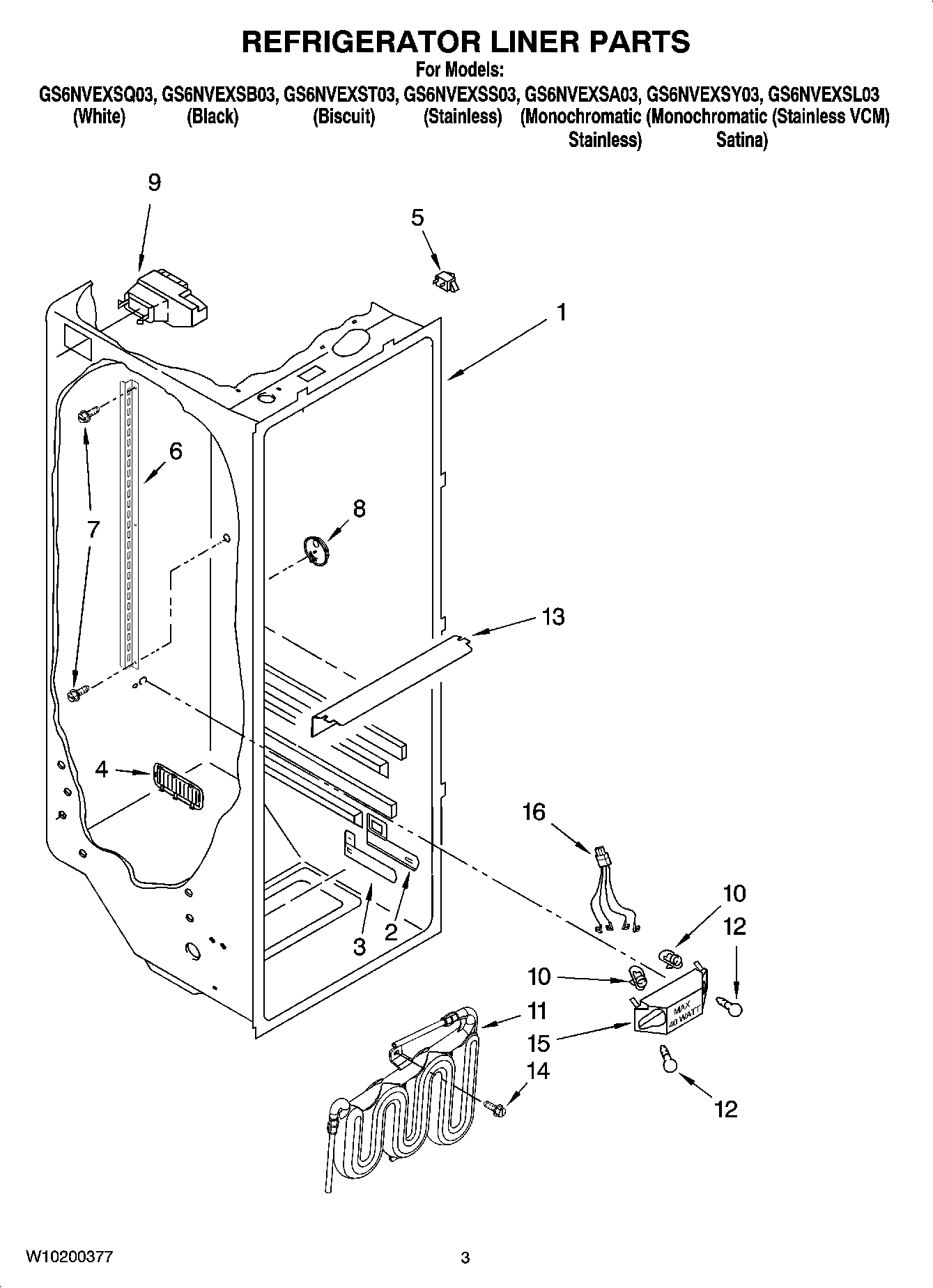

GS6NVEXSQ03 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11384469 Whirlpool Door Switch
6	Shelf Ladder
7	WP489478 Whirlpool Refrigerator Screw
8	Door Control Asm
9	WPW10151374 Whirlpool Refrigerator Diffuser
10	4387478 Whirlpool Refrigerator Light Socket
11	RESERVOIR
12	RANGE ONLY 40W 120V APPL BULB
13	Light Lens
14	Screw (2)
15	Bracket, Dual Crisper Light
16	2311637 Whirlpool Refrigerator Wire Harness
