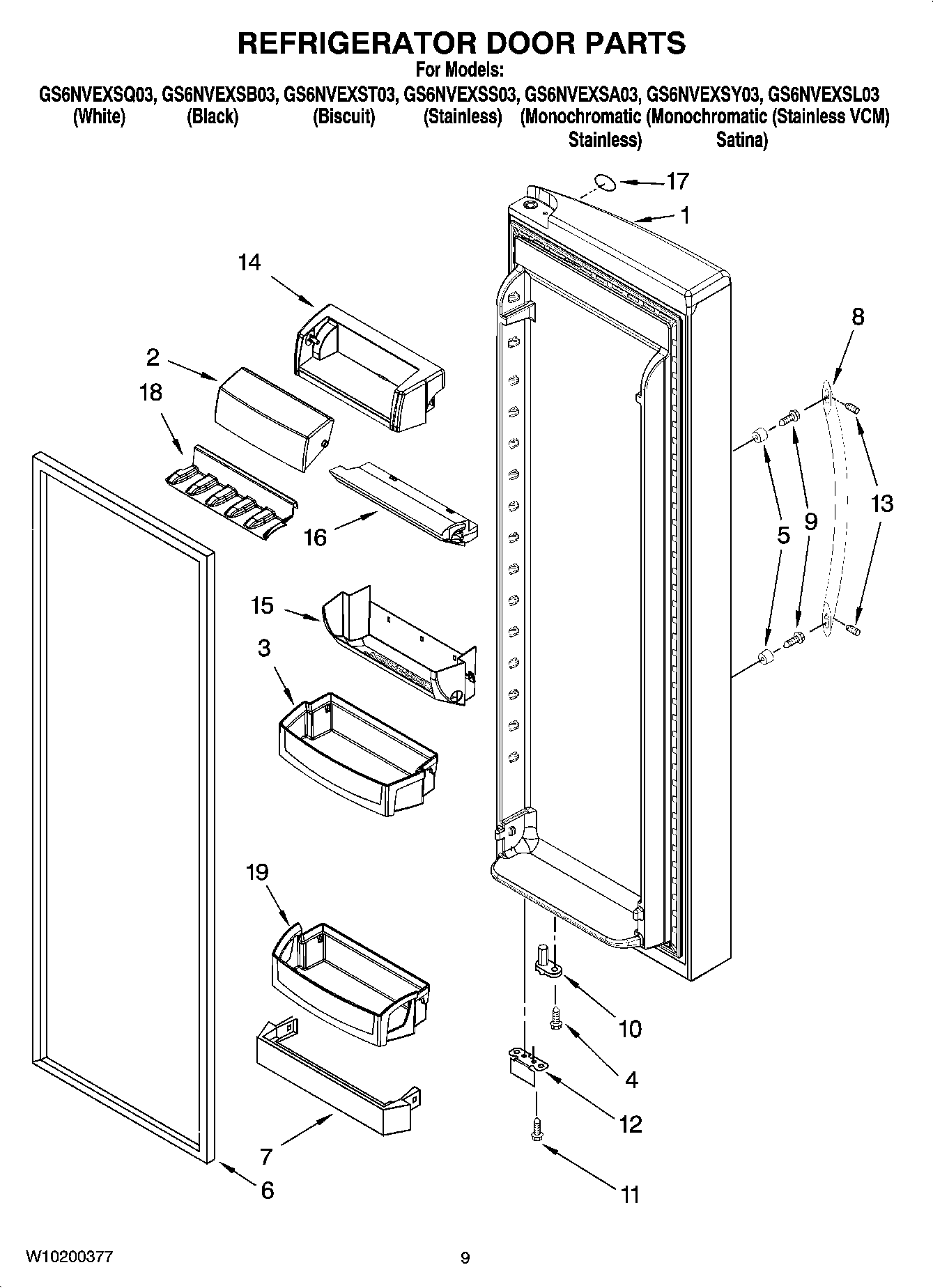

GS6NVEXST03 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Water Bottle
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (Mono Stainless)
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
1	Refrigerator Door (Includes Item 6) (Mono Satina)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Stainless)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	Dairy Door
3	Door Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
5	WPW10170540 Whirlpool Screw
6	WPW10136734 Whirlpool Refrigerator Door Gasket
6	2159075 Whirlpool Door Gasket Seal
6	2159083 Whirlpool Gasket Door
7	WP2156022 Whirlpool Refrigerator Door Trim
8	WP2254600W Whirlpool Refrigerator Handle
8	WP2254600B Whirlpool Refrigerator Handle
8	Handle (Biscuit)
8	Handle (Stainless)
9	WP488163 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop
12	Bracket, Door Stop
13	SCREW
14	Door Compartment
15	Frame, Can Rack
16	Air Diffuser Asm
17	Nameplate
18	Floor, Can Rack
19	Mat, Bin (2)
