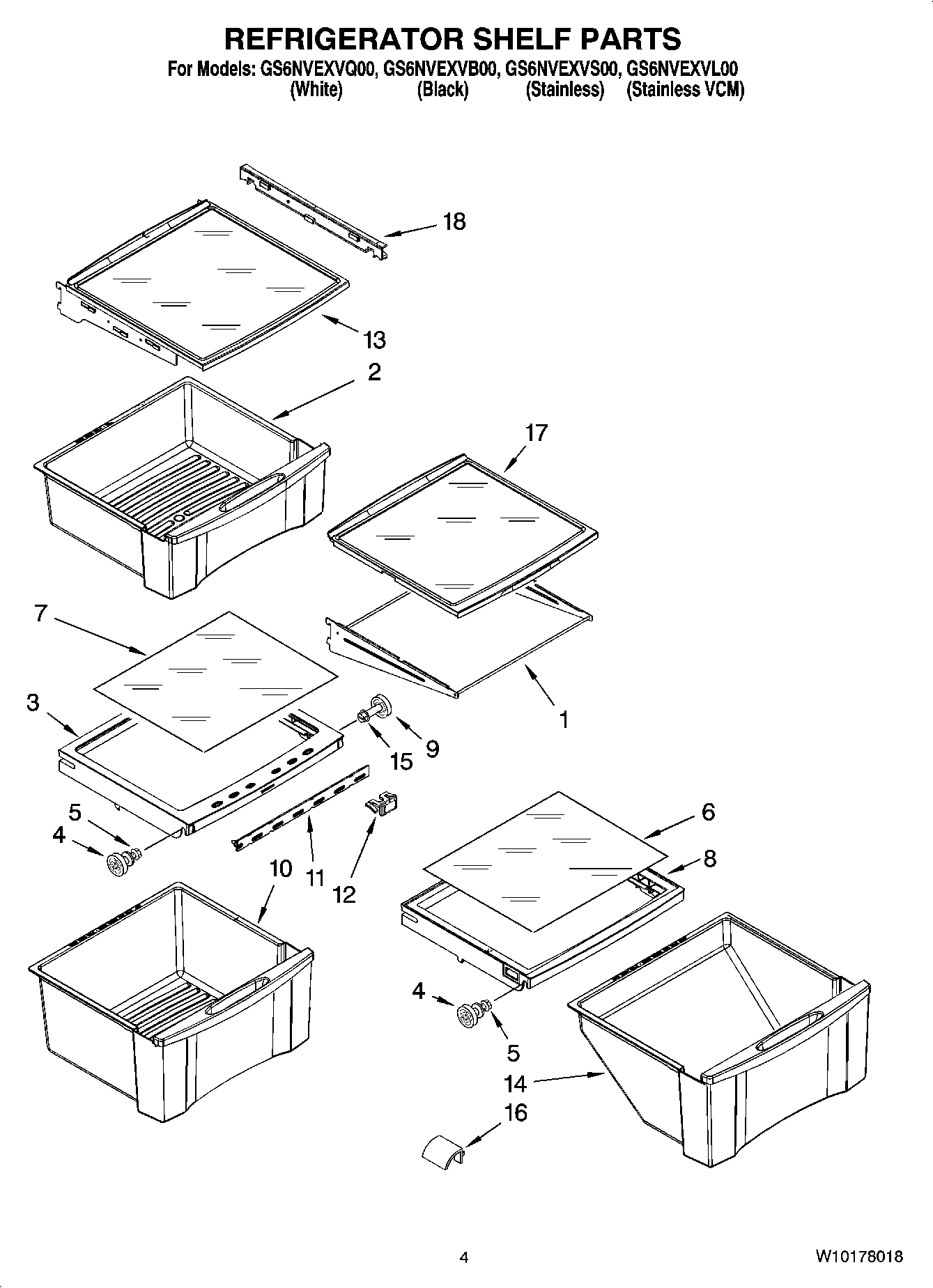

GS6NVEXVB00 03 – REFRIGERATOR SHELF PARTS

GS6NVEXVB00 03 – REFRIGERATOR SHELF PARTS

Written by

in

GS6NVEXVB00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Frame Assembly (2)
2PAN, SNACK
3Cover, Crisper
4W11223328 Whirlpool Refrigerator Shelf Stud
5WP3-24004-109 Whirlpool Refrigerator Screw
6Glass, Meat Cover
7Cover, Crisper
8WP2223242 Whirlpool Refrigerator Cover
9WP2196483 Whirlpool Refrigerator Shelf Stud
10WPW10233488 Whirlpool Refrigerator Crisper Pan
112223308 Whirlpool Refrigerator Slide
12Knob, Humidity Control
13WP2223288 Whirlpool Refrigerator Cantilever Shelf
14Meat Pan
15WP3400806 Whirlpool Screw
162179350 Whirlpool Refrigerator Deflector
17Shelf, Slide Out (2)
18WP2223320 Whirlpool Slide Track Pan
