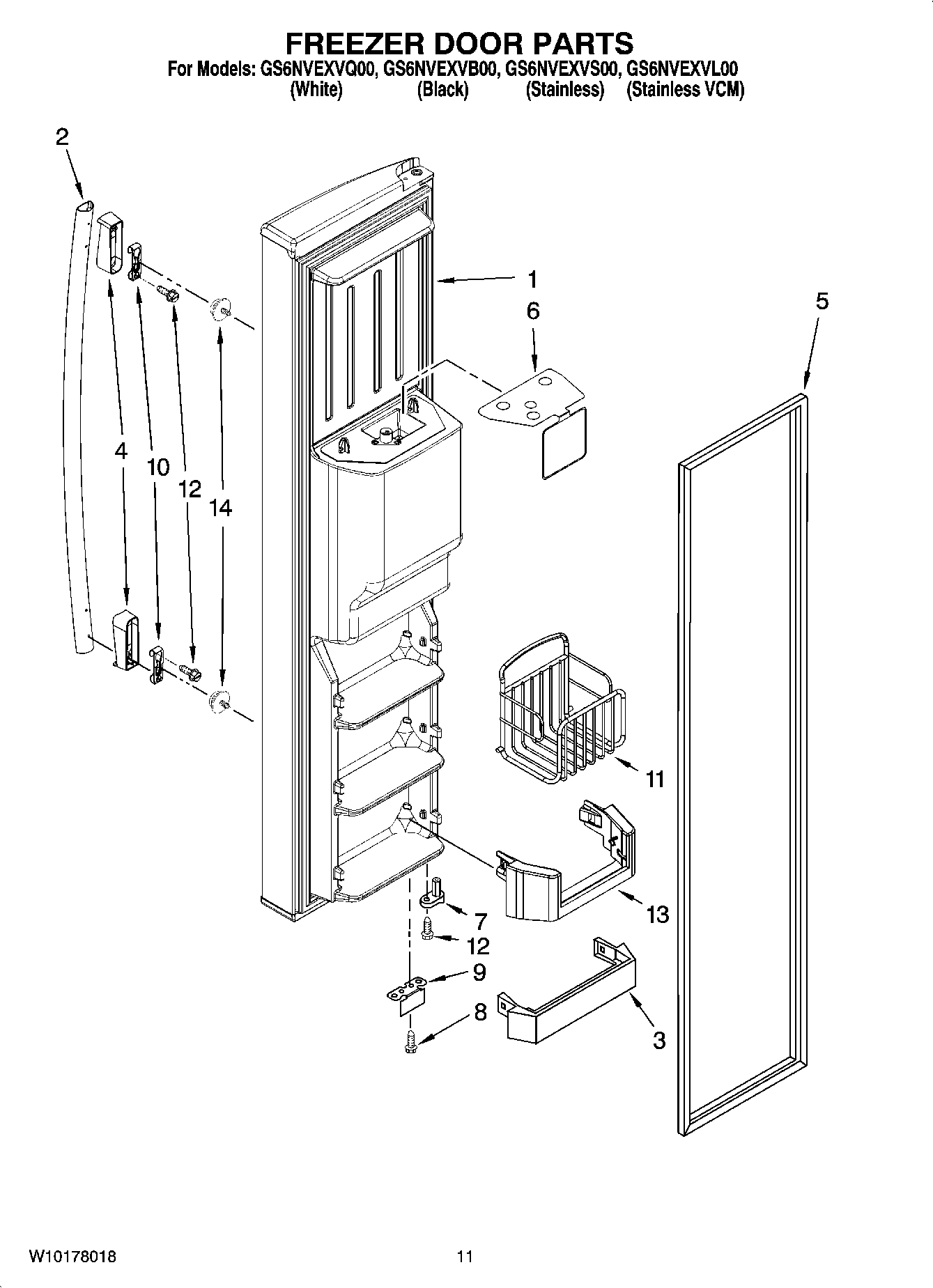

GS6NVEXVB00 07 – FREEZER DOOR PARTS

Products

Position	Product
	Following Parts Not Illustrated
	Tube, Water Dispenser
	Wire Assembly, Freezer Door
1	Freezer Door (Includes 5) (Stainless VCM)
1	Freezer Door (Includes 5) (Stainless)
1	Freezer Door (Includes 5) (Black)
1	Freezer Door (Includes 5) (White)
2	W10273556 Whirlpool Refrigerator Handle
2	W10210942A Whirlpool Refrigerator Handle
2	W10210943A Whirlpool Refrigerator Handle
3	WP2171157 Whirlpool Shelf Trim
4	Handle, Endcap (Black)
4	Handle, Endcap (Stainless, All)
4	W10127813 Whirlpool Refrigerator Handle Endcap
5	2159082 Whirlpool Freezer Door Gasket Black
5	2159074 Whirlpool Door Gasket Seal
6	Safety Barrier
7	WP2223752 Whirlpool Refrigerator Door Cam
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Black)
9	Bracket, Door Stop (Chrome)
10	WP2255411 Whirlpool Refrigerator Clip
11	Basket, Tilt Out
12	WP8533988 Whirlpool Screw Fastener
13	TRIVET, TILT-OUT
14	WPW10288153 Whirlpool Refrigerator Screw
