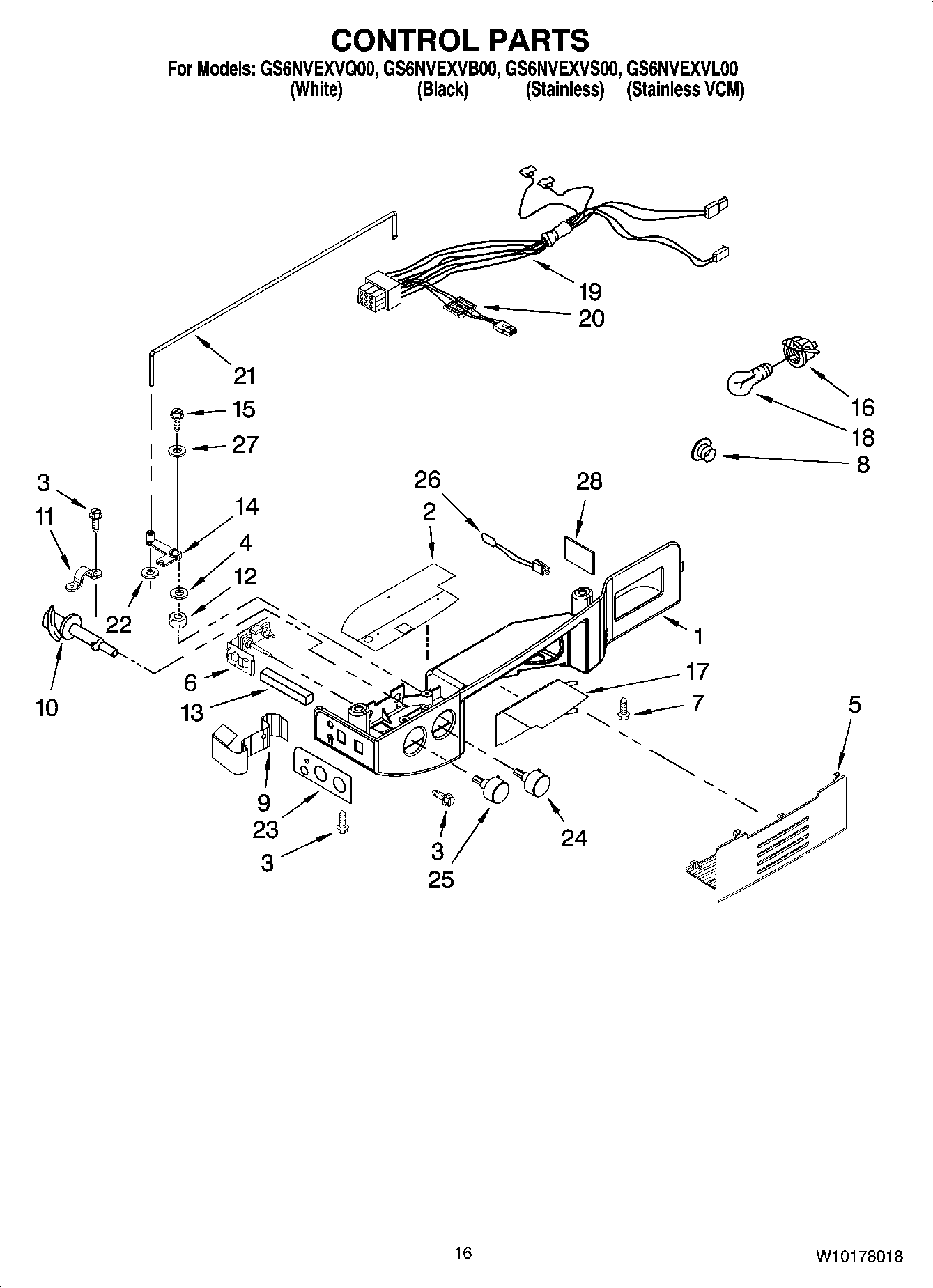

GS6NVEXVB00 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	Shield
3	WP3196557 Whirlpool Screw
4	Washer
5	Lens, Light
6	Electronic Control
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Shield, Electrical (Internal)
10	Cam Assembly
11	Bearing Body
12	Nut, Hex
13	Foam, Shield
14	Pivot Arm
15	627068 Whirlpool Refrigerator Screw
16	4387478 Whirlpool Refrigerator Light Socket
17	Shield, Heat
18	RANGE ONLY 40W 120V APPL BULB
19	Control Box Harness
20	Ferrite Bead
21	Connecting Rod
22	Fastener, Push-On
23	Escutcheon, Control Box
24	Knob, RC
25	Knob, FC
26	WP2188819 Whirlpool Thermistor
27	489203 Whirlpool Refrigerator Washer
28	Air Seal, Thermistor
