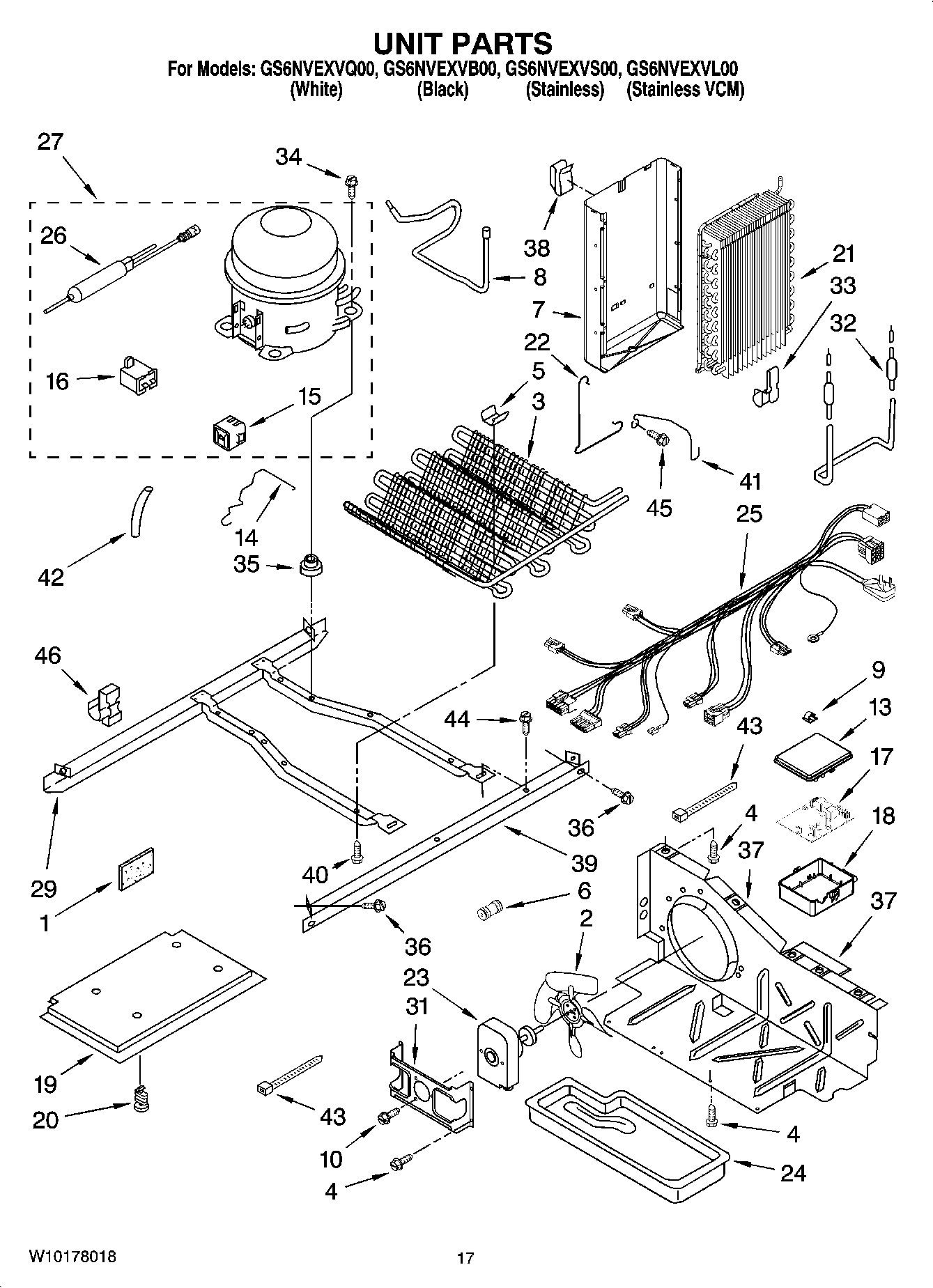

GS6NVEXVB00 11 – UNIT PARTS

GS6NVEXVB00 11 – UNIT PARTS

Written by

in

GS6NVEXVB00 11 – UNIT PARTS

Products

PositionProduct
876764 Whirlpool Refrigerator Primary Valve
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (1/2“)
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (5/8“)
Following Parts Not Illustrated and Optional Parts Not Included
1W11553819 Whirlpool Refrigerator Insulation
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WPW10271543 Whirlpool Refrigerator Connector
7Heat Shield
8WP2205765 Whirlpool Refrigerator Tube
9WP1115374 Whirlpool Refrigerator Clip
10WP8533993 Whirlpool Refrigerator Screw
13Box Cover
142223314 Whirlpool Refrigerator Clip
15WP2304885 Whirlpool Refrigerator Start Device
16WPW10662129 Whirlpool Refrigerator Run Capacitor
17Electronic Control
18Box, Control
19Unit Cover, Bottom
20489396 Whirlpool Refrigerator Clip
21WP2188823 Whirlpool Refrigerator Evaporator
22Clamp
23WP2188874 Whirlpool Refrigerator Condenser Motor
24WPW10614158 Whirlpool Refrigerator Evaporator Tray
25Harness, Unit
26W10843121 Whirlpool Refrigerator Tube
26WPW10143759 Whirlpool Dryer Filter
27W10139460 Whirlpool Refrigerator Compressor
292304904 Whirlpool Frame Assembly
31WP2181929 Whirlpool Refrigerator Bracket
32WP2323198 Whirlpool Refrigerator Heater
33W11623163 Whirlpool Refrigerator Clip
35876811 Whirlpool Grommet
35WP4387558 Whirlpool Refrigerator Compressor Grommet
36489340 Whirlpool Refrigerator Screw
37W10896764 Whirlpool Refrigerator Air Baffle
38Clip, Heat Shield
392305374 Whirlpool Refrigerator Unit Rail
40W11544659 Whirlpool Refrigerator Screw
412260517 Whirlpool Fan Guard
42SLEEVE
43WPW10339879 Whirlpool Wire Tie
44WP489427 Whirlpool Refrigerator Screw
45WP489478 Whirlpool Refrigerator Screw
46W10169512 Whirlpool Clip
