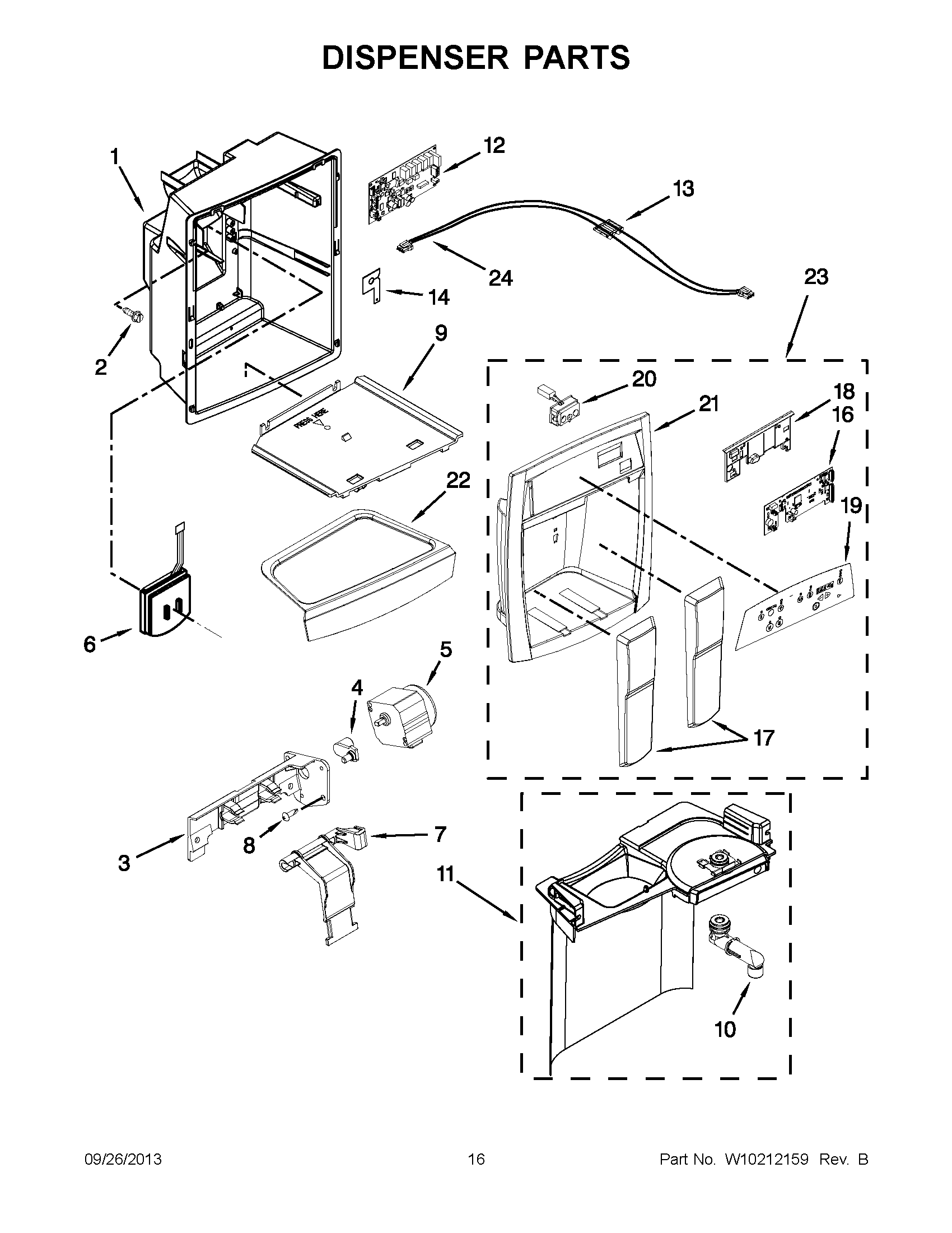

GS6NVEXVB01 09 – DISPENSER PARTS

Products

Position	Product
2	WP8281163 Whirlpool Refrigerator Screw
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Grille, Slide (Black)
9	Grille, Slide (White)
10	Spigot
11	Separator Assembly (White)
11	Separator Assembly (Black)
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	Ferrite Bead
14	2305447 Whirlpool Refrigerator Clip
16	Cover Assembly, Electronic Control
17	Pad, Ice & Water (For Black Model)
17	Pad, Ice & Water (For White Model)
18	2305219 Whirlpool Refrigerator Cover
20	LED Assembly
21	CABINET (NOT A SERVICEABLE PART)
22	Tray, Housing (Black)
22	Tray, Housing (White)
23	FRONT COVER ASSEMBLY (BLACK)
23	FRONT COVER ASSEMBLY (WHITE)
24	W10178851 Whirlpool Refrigerator Jumper Wire
