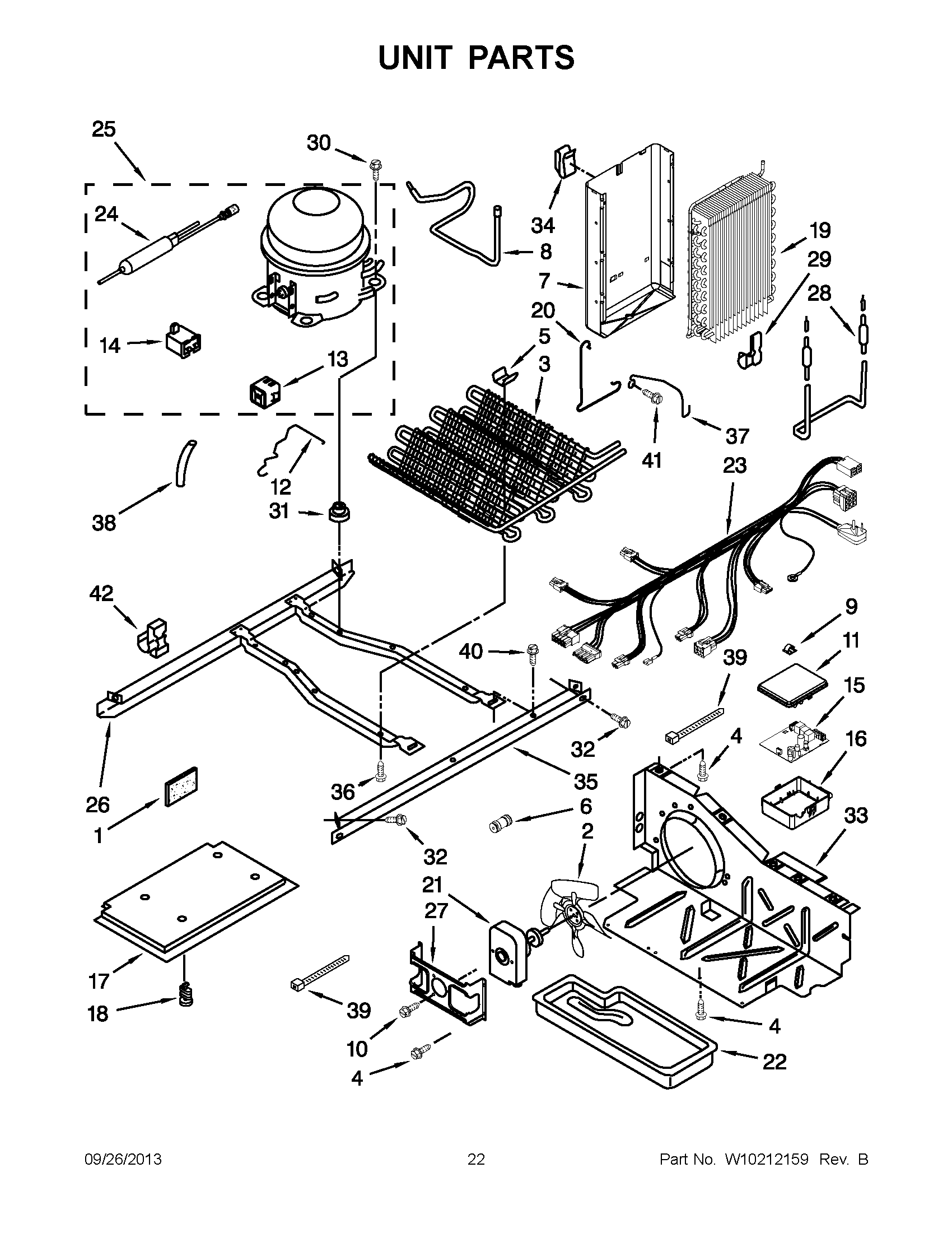

GS6NVEXVB01 12 – UNIT PARTS

GS6NVEXVB01 12 – UNIT PARTS

Written by

in

GS6NVEXVB01 12 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WPW10271543 Whirlpool Refrigerator Connector
7	Heat Shield
8	WP2205765 Whirlpool Refrigerator Tube
9	WP1115374 Whirlpool Refrigerator Clip
10	WP8533993 Whirlpool Refrigerator Screw
11	Cover
12	2223314 Whirlpool Refrigerator Clip
13	WP2304885 Whirlpool Refrigerator Start Device
14	WPW10662129 Whirlpool Refrigerator Run Capacitor
15	Electronic Control
16	Box, Control
17	Unit Cover, Bottom
18	489396 Whirlpool Refrigerator Clip
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	Harness, Unit
24	WPW10143759 Whirlpool Dryer Filter
25	W10139460 Whirlpool Refrigerator Compressor
26	2304904 Whirlpool Frame Assembly
27	WP2181929 Whirlpool Refrigerator Bracket
28	WP2323198 Whirlpool Refrigerator Heater
29	W11623163 Whirlpool Refrigerator Clip
30	876811 Whirlpool Grommet
31	WP4387558 Whirlpool Refrigerator Compressor Grommet
32	489340 Whirlpool Refrigerator Screw
33	W10896764 Whirlpool Refrigerator Air Baffle
34	Clip, Heat Shield
35	2305374 Whirlpool Refrigerator Unit Rail
36	W11544659 Whirlpool Refrigerator Screw
37	2260517 Whirlpool Fan Guard
38	SLEEVE
39	WPW10339879 Whirlpool Wire Tie
40	WP489427 Whirlpool Refrigerator Screw
41	WP489478 Whirlpool Refrigerator Screw
42	W10169512 Whirlpool Clip
