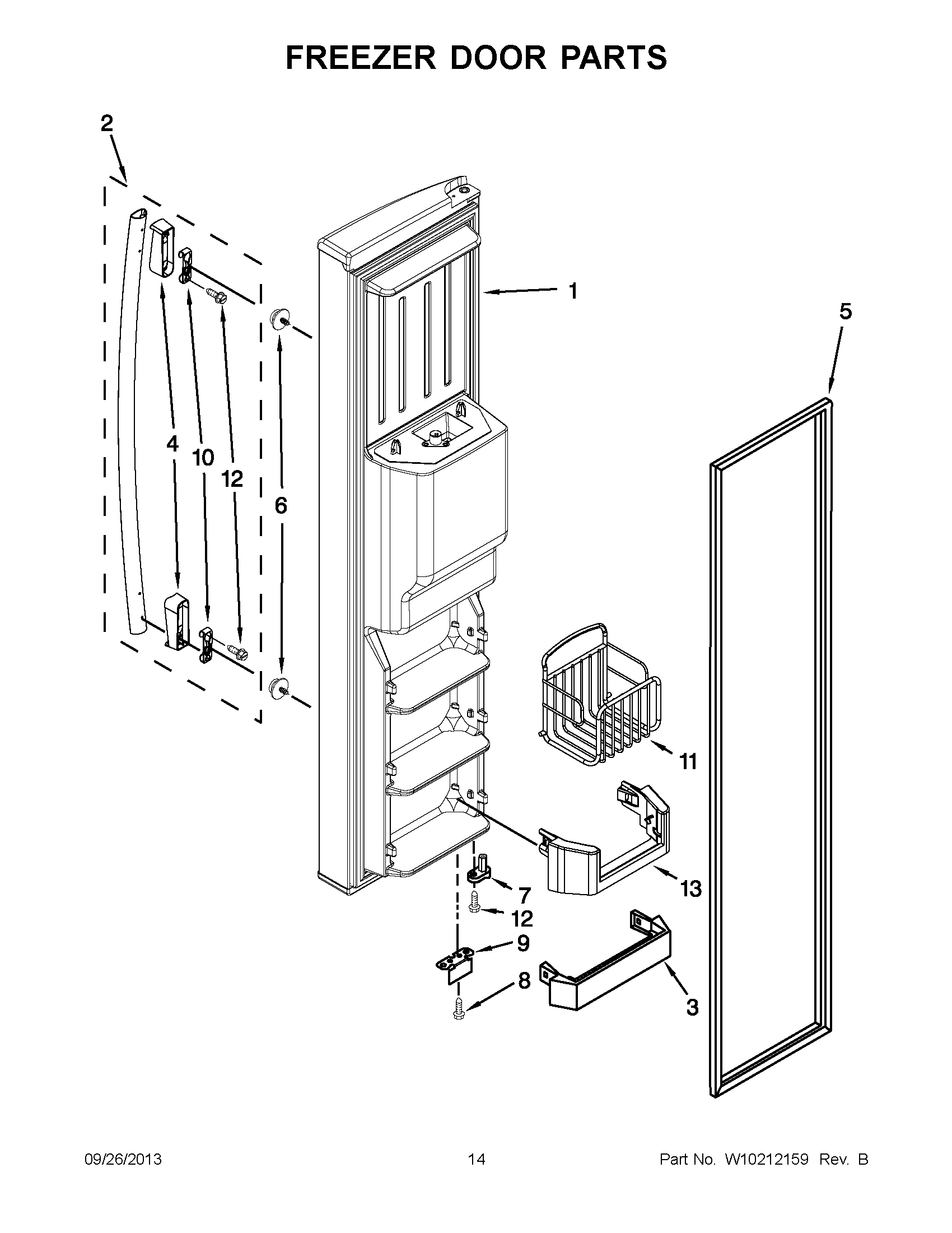

GS6NVEXVL01 08 – FREEZER DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	Tube, Water Dispenser
NI	Wire Assembly, Freezer Door
1	FREEZER DOOR (INCLUDES No.5) (STAINLESS)
1	FREEZER DOOR (INCLUDES No.5) (BLACK)
1	FREEZER DOOR (INCLUDES No.5) (WHITE)
1	FREEZER DOOR (INCLUDES No.5) (STAINLESS VCM)
2	W10273556 Whirlpool Refrigerator Handle
2	W10210942A Whirlpool Refrigerator Handle
2	W10210943A Whirlpool Refrigerator Handle
3	WP2171157 Whirlpool Shelf Trim
4	W10127813 Whirlpool Refrigerator Handle Endcap
4	Handle, Endcap (Black)
4	ENDCAP, HANDLE (GRAY)
5	2159082 Whirlpool Freezer Door Gasket Black
5	2159074 Whirlpool Door Gasket Seal
6	WPW10288153 Whirlpool Refrigerator Screw
7	WP2223752 Whirlpool Refrigerator Door Cam
8	WP489483 Whirlpool Screw
9	Bracket, Door Stop (Black)
9	Bracket, Door Stop (Chrome)
10	WP2255411 Whirlpool Refrigerator Clip
11	Basket, Tilt Out
12	WP8533988 Whirlpool Screw Fastener
13	TRIVET, TILT-OUT
