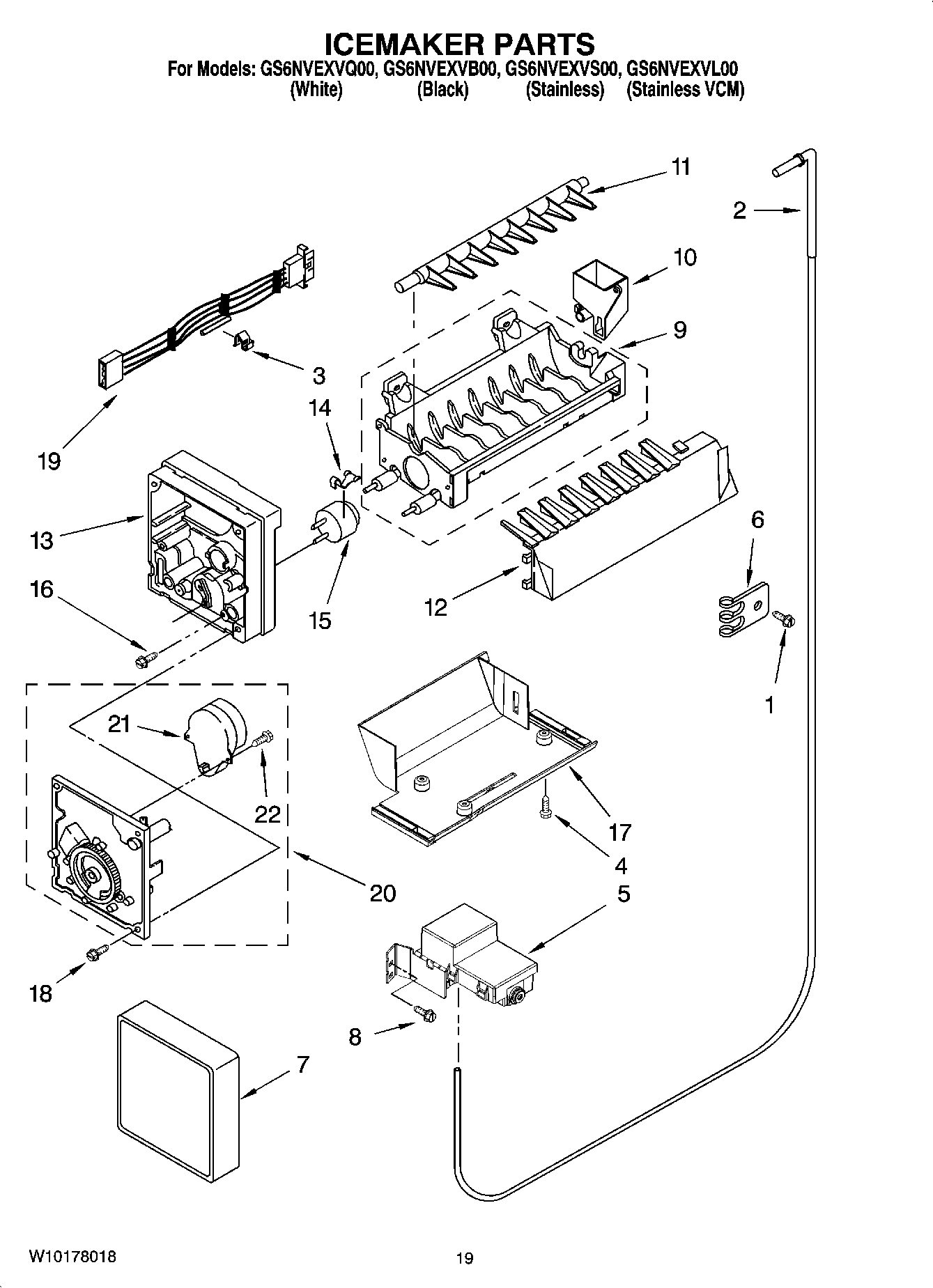

GS6NVEXVS00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

GS6NVEXVS00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GS6NVEXVS00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI71679A5
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
4210463RW Whirlpool Refrigerator Coil Brush
CLEANER, (STAINLESS STEEL)
WPL ARI71677A4
WPL ARI71678A8
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
4392901 Whirlpool Biscuit Spray Paint
WPL ARI71680A6
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4WP489478 Whirlpool Refrigerator Screw
5WPW10159839 Whirlpool Refrigerator Inlet Valve
6WP488366 Whirlpool Refrigerator Clamp
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11WP627843 Whirlpool Refrigerator Ejector Arm
12W10297244 Whirlpool Refrigerator Arm Strip
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17BRACKET, ICEMAKER MOUNTING
18WP681249 Whirlpool Screw Assembly
19WP2187467 Whirlpool Refrigerator Wire Harness
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
