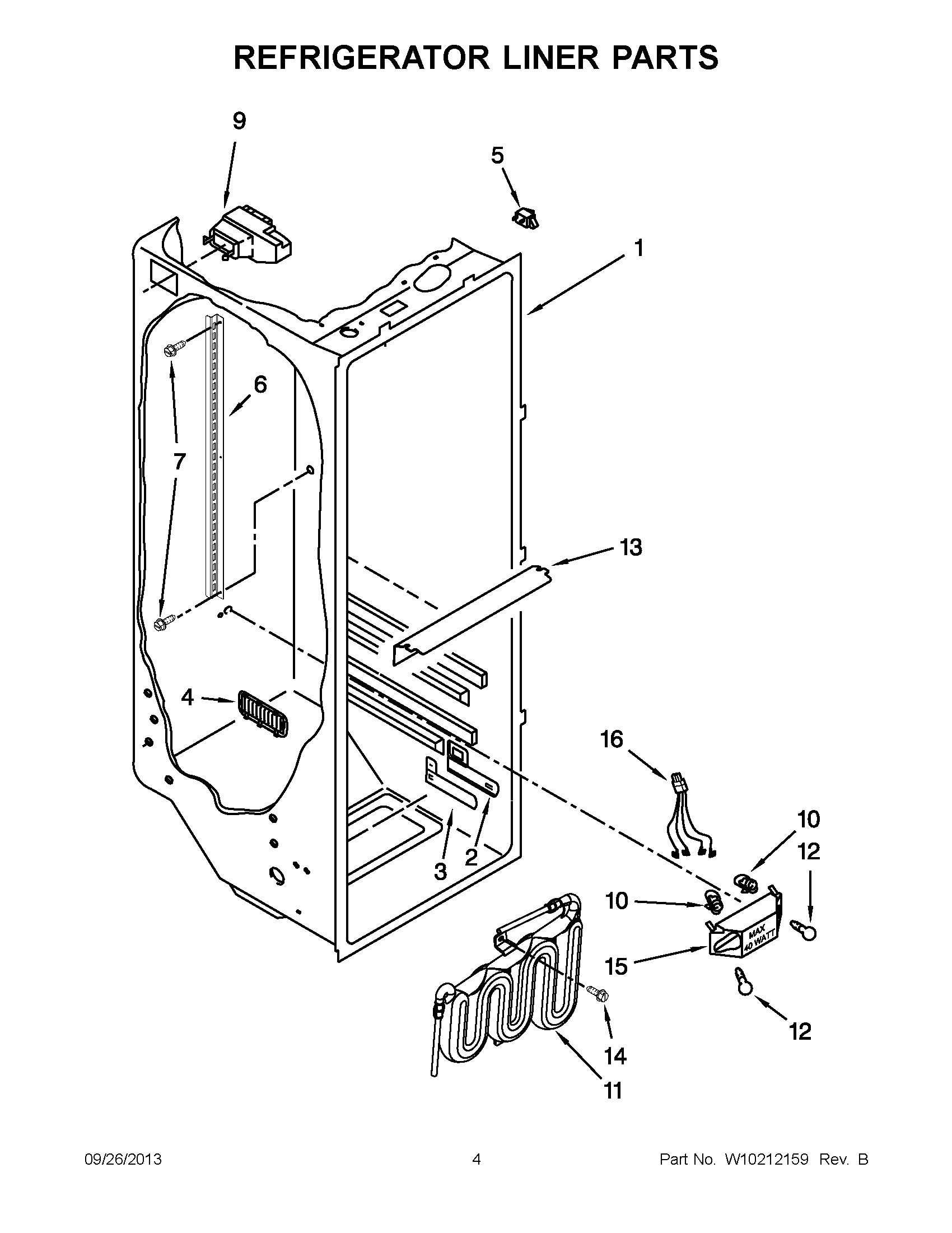

GS6NVEXVS01 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11384469 Whirlpool Door Switch
6	Shelf Ladder
7	WP489478 Whirlpool Refrigerator Screw
9	WPW10151374 Whirlpool Refrigerator Diffuser
10	4387478 Whirlpool Refrigerator Light Socket
11	RESERVOIR
12	RANGE ONLY 40W 120V APPL BULB
13	Light Lens
14	Screw (2)
15	Bracket, Dual Crisper Light
16	2311637 Whirlpool Refrigerator Wire Harness
