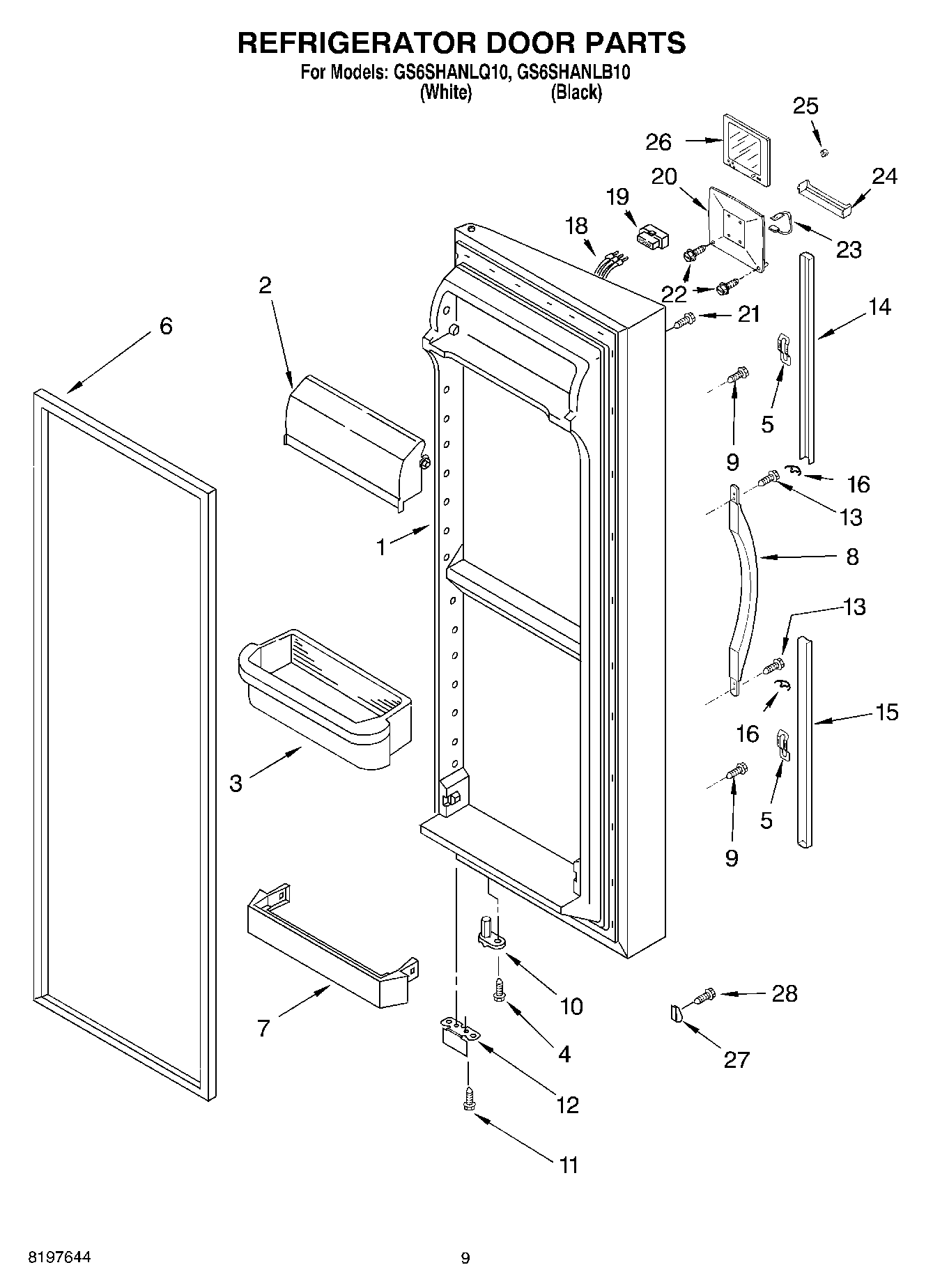

GS6SHANLB10 06 – REFRIGERATOR DOORadmin2025-04-26T11:27:31+00:00GS6SHANLB10 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item No.6) (White) |
| 1 | Refrigerator Door (Includes Item No.6) (Black) |
| 2 | WP2256101 Whirlpool Dairy Door |
| 3 | WPW10321304 Whirlpool Refrigerator Door Shelf Bin |
| 4 | WP3400012 Whirlpool Refrigerator Screw |
| 5 | WP2195327 Whirlpool Refrigerator Clip |
| 6 | 2159075 Whirlpool Door Gasket Seal |
| 6 | 2159083 Whirlpool Gasket Door |
| 7 | WP2156022 Whirlpool Refrigerator Door Trim |
| 8 | Handle (White) |
| 8 | WP2217185B Whirlpool Refrigerator Handle |
| 9 | WP3400852 Whirlpool Refrigerator Screw |
| 10 | WP2182179 Whirlpool Cam Closer |
| 11 | WP489483 Whirlpool Screw |
| 12 | Bracket, Door Stop |
| 12 | Bracket, Door Stop |
| 14 | Trim, Door-Top (White) |
| 14 | Trim, Door-Top (Black) |
| 15 | Trim, Door-Bottom (Black) |
| 15 | Trim, Door-Bottom (White) |
| 16 | Jewelry, Handle (Satin Nickel) |
| 18 | Harness, Wire for Web Tablet Holder |
| 19 | Connector |
| 20 | Holder, Web Tablet Rear (White) |
| 20 | Holder, Web Tablet Rear (Black) |
| 21 | WP489491 Whirlpool Refrigerator Screw |
| 22 | WPW10272364 Whirlpool Refrigerator Screw |
| 23 | Circuit Board, Web Tablet |
| 24 | Holder, Web Tablet Front (Black) |
| 24 | Holder, Web Tablet Front (White) |
| 25 | Cap Screw (4) (White) |
| 25 | Cap Screw (4) (Black) |
| 26 | Web Tablet- (See Web Tablet Owners Manual for Service Repair Contacts) |
| 27 | W11456069 Whirlpool Refrigerator Clamp |
| 28 | WP8281163 Whirlpool Refrigerator Screw |
