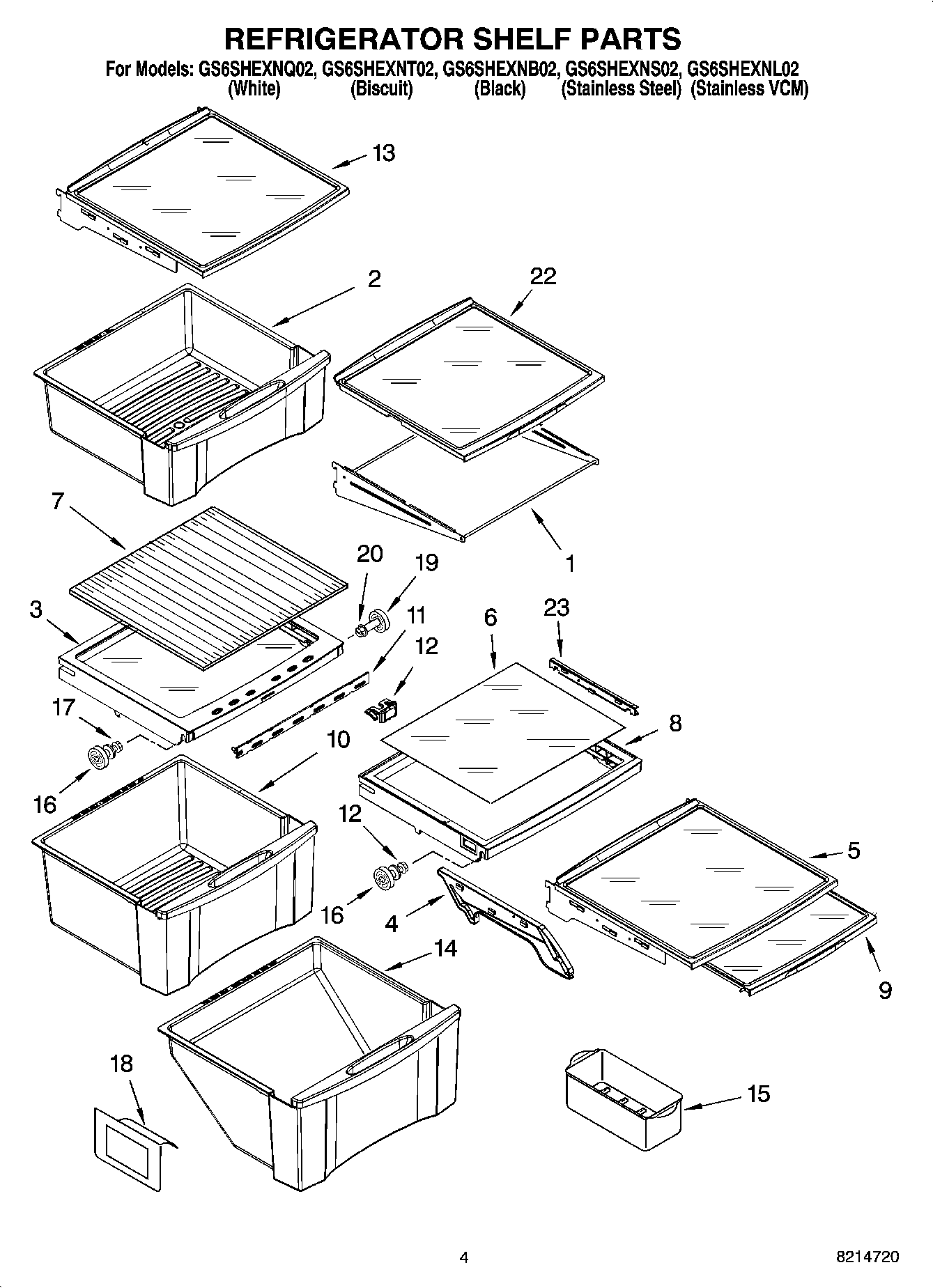

GS6SHEXNB02 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly (2)
2	Snack Bin Asm
3	Cover, Crisper
4	Track, Shelf (Left Side)
4	WP2223427 Whirlpool Refrigerator Track
5	Shelf Assembly, Drop Down (Includes 7 & 20)
6	Glass, Meat Cover
7	WP2223591 Whirlpool Refrigerator Glass Shelf
8	WP2223242 Whirlpool Refrigerator Cover
9	Shelf, Drop Down
10	WPW10233488 Whirlpool Refrigerator Crisper Pan
11	2223308 Whirlpool Refrigerator Slide
12	Knob, Humidity Control
13	WP2223288 Whirlpool Refrigerator Cantilever Shelf
14	Meat Pan Assembly
15	W10136387A Whirlpool Refrigerator Egg Container
16	W11223328 Whirlpool Refrigerator Shelf Stud
17	WP3-24004-109 Whirlpool Refrigerator Screw
18	2179350 Whirlpool Refrigerator Deflector
19	WP2196483 Whirlpool Refrigerator Shelf Stud
20	WP3400806 Whirlpool Screw
22	Shelf, Slide Out (2)
23	WP2223320 Whirlpool Slide Track Pan
