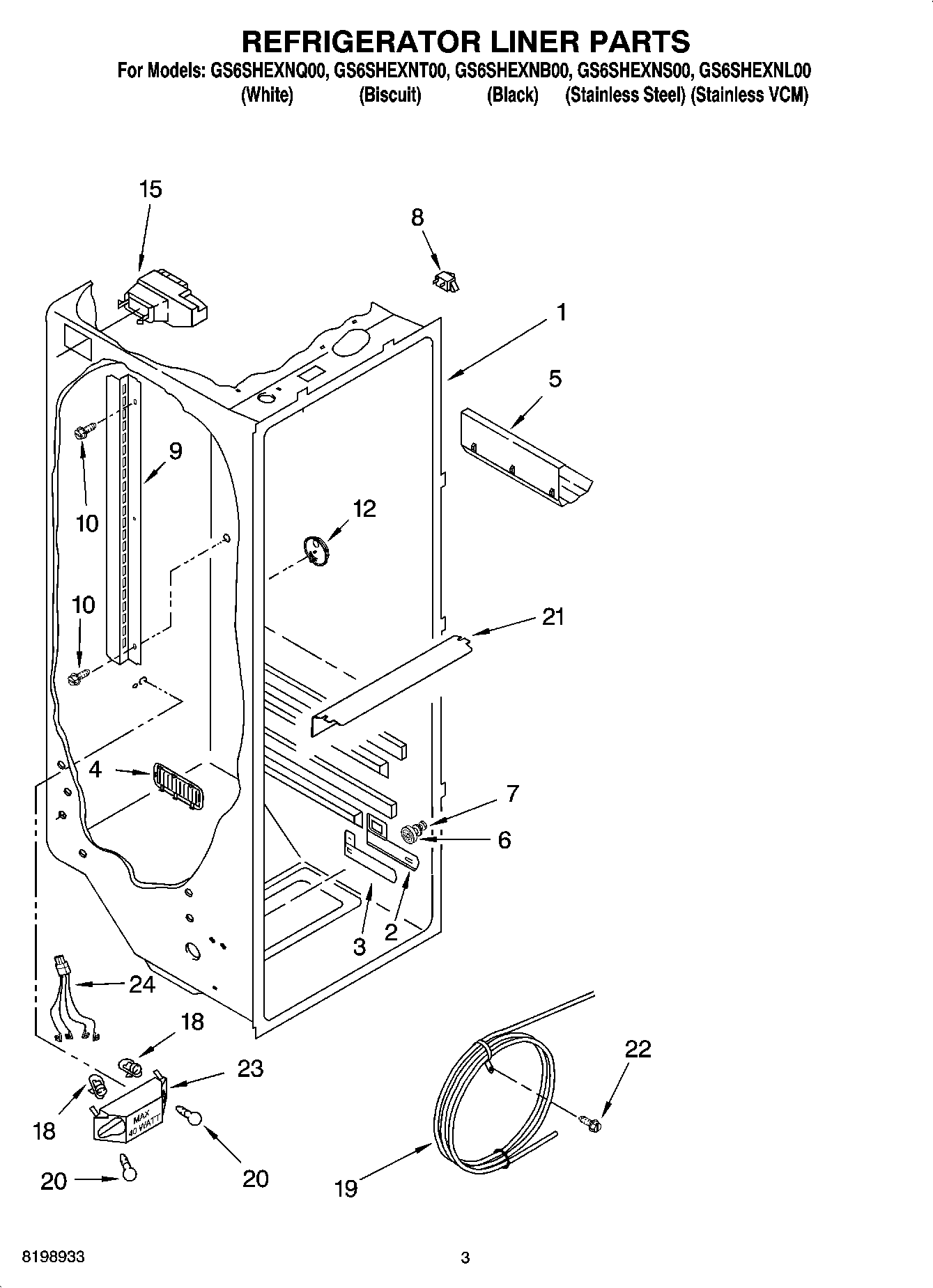

GS6SHEXNS00 02 – REFRIGERATOR LINER PARTS

GS6SHEXNS00 02 – REFRIGERATOR LINER PARTS

Written by

in

GS6SHEXNS00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W10777924 Whirlpool Refrigerator Wine Rack
6W11223328 Whirlpool Refrigerator Shelf Stud
7WP3-24004-109 Whirlpool Refrigerator Screw
8W11384469 Whirlpool Door Switch
9Ladder, Shelf
10WP489478 Whirlpool Refrigerator Screw
12Door Control Asm
15WPW10151374 Whirlpool Refrigerator Diffuser
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
23Bracket, Dual Crisper Light
242311637 Whirlpool Refrigerator Wire Harness
