GSC23KGTABB FRESH FOOD SHELVES

GSC23KGTABB FRESH FOOD SHELVES

Written by

in

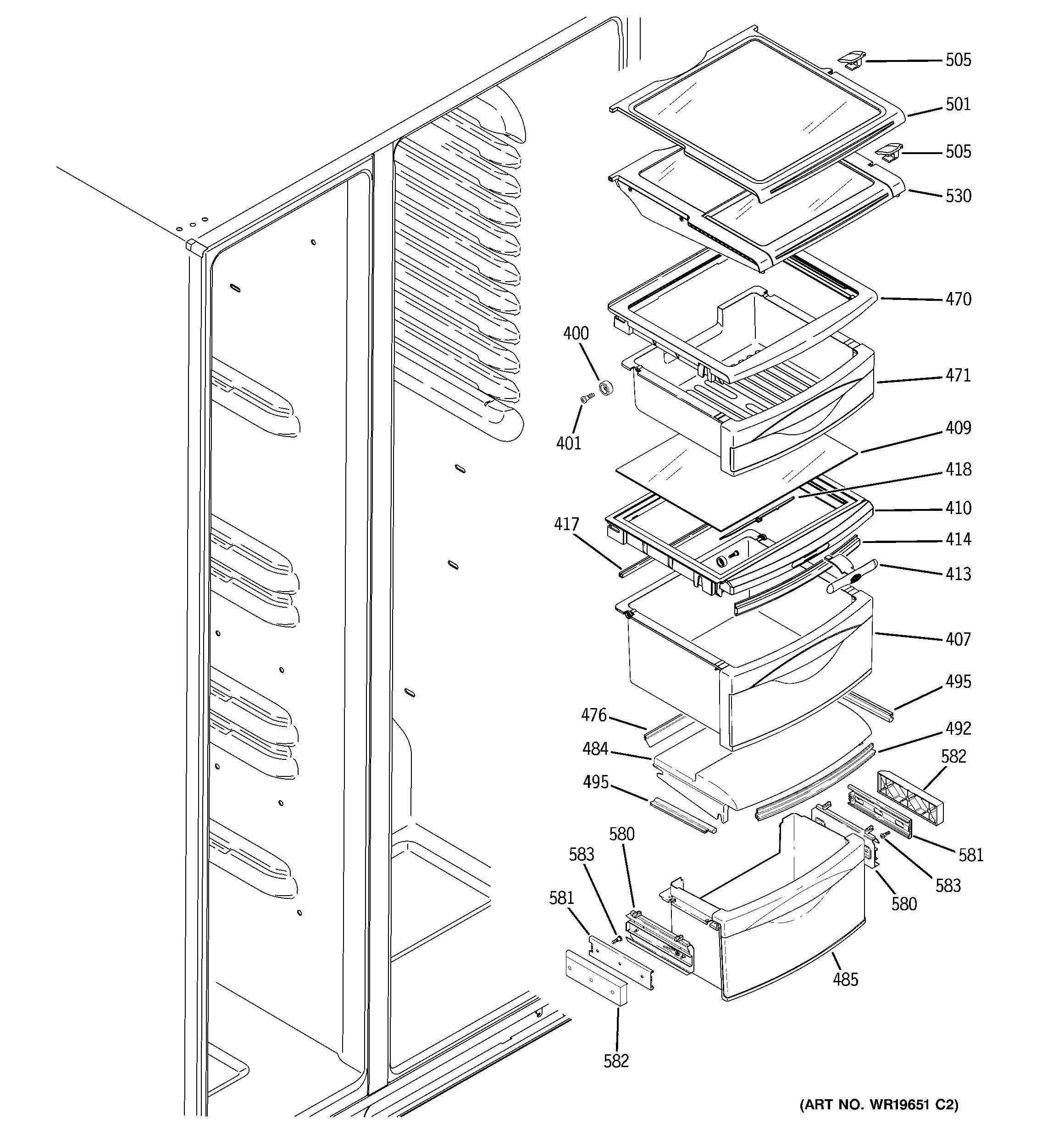

GSC23KGTABB FRESH FOOD SHELVES

Products

PositionProduct
400WR01X10209 GE Refrigerator Wheel Pan Cover
401WR01X10615 GE Screw
407WR32X26218 GE Refrigerator Pan Assembly
409WR32X10200 GE Refrigerator Glass Cover Pan
410WR32X26245 GE Refrigerator Middle Pan Cover
413WR02X10821 GE Refrigerator Humidity Control
414WR14X10059 GE Refrigerator Front Cover Pan Gasket
417WR14X10058 GE Drawer Seal
418WR02X10633 GE Middle Pan Cover Slide
470WR32X10568 GE Refrigerator Cover Top Pan Assembly
471WR32X10576 GE Refrigerator Top Pan Assembly
476WR14X10169 GE Refrigerator Gasket Pan Cover Front
484WR32X10446 GE Refrigerator Cover Pan Assembly
485WR71X38326 GE Refrigerator Pan Frame Assembly
492WR14X10105 GE Refrigerator Front Seal
495WR14X10159 GE Refrigerator Chill Seal Sides
501WR71X10392 GE Refrigerator Shelf Slideout Assembly
505WR02X10662 GE Shelf Support Retainer
530WR71X10620 GE Refrigerator Shelf Tuckaway Assembly
580WR49X10144 GE Refrigerator Slide Bracket Assembly Kit
580WR72X10193 GE Refrigerator Slide and Bracket Assembly L
580WR72X10194 GE Slide and Bracket
581WR72X10195 GE Refrigerator Slide Liner
582GEN WR72X10142
583WR01X10629 GE Refrigerator Screw 8-18 AB Hex Washer 1/2"
