GSC23LGQABB FRESH FOOD SHELVES

GSC23LGQABB FRESH FOOD SHELVES

Written by

in

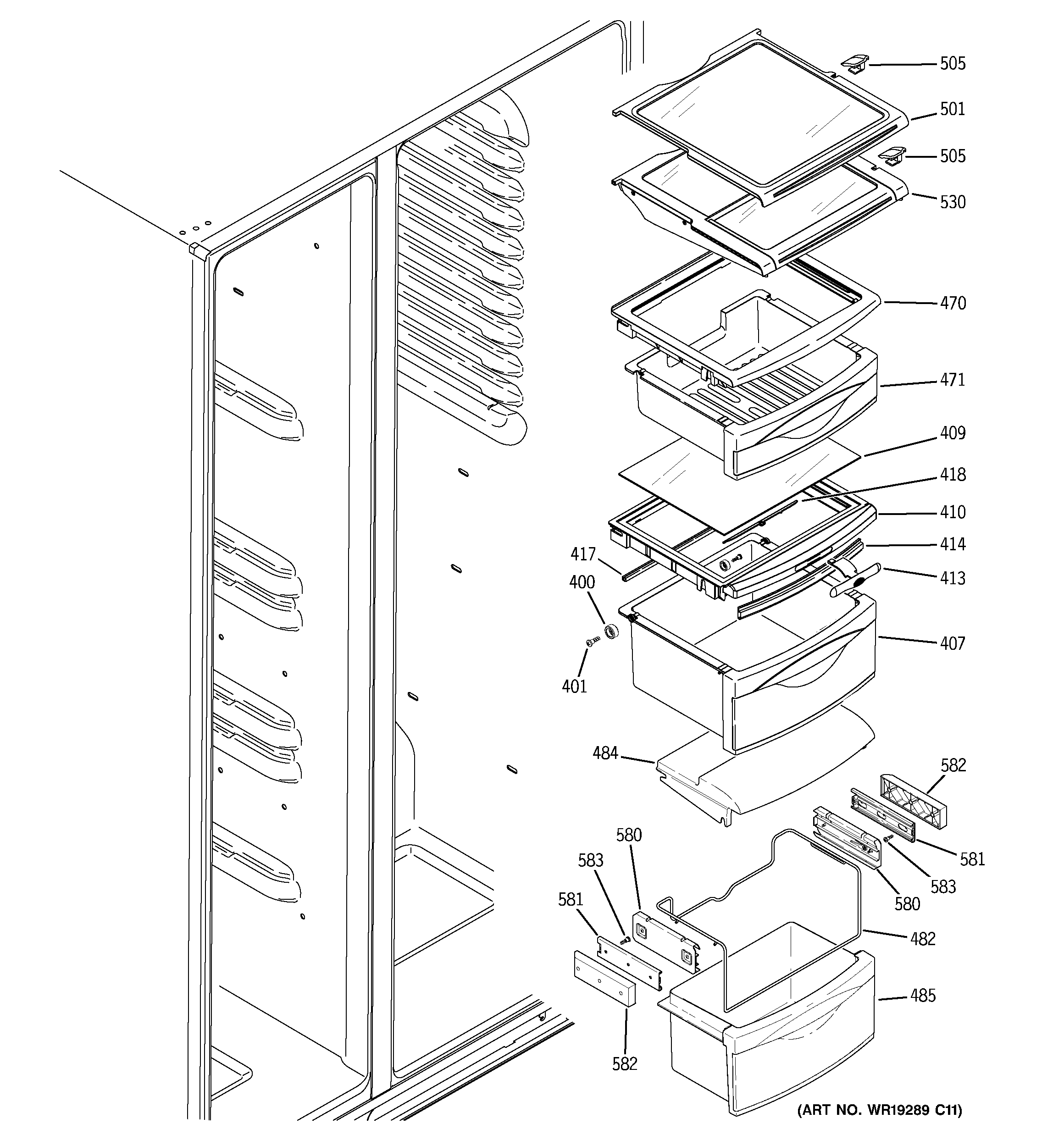

GSC23LGQABB FRESH FOOD SHELVES

Products

PositionProduct
400WR01X10209 GE Refrigerator Wheel Pan Cover
401WR01X10615 GE Screw
407WR32X26218 GE Refrigerator Pan Assembly
409WR32X10200 GE Refrigerator Glass Cover Pan
410WR32X26245 GE Refrigerator Middle Pan Cover
413WR02X10821 GE Refrigerator Humidity Control
414WR14X10059 GE Refrigerator Front Cover Pan Gasket
417WR14X10058 GE Drawer Seal
418WR02X10633 GE Middle Pan Cover Slide
470WR32X10568 GE Refrigerator Cover Top Pan Assembly
471WR32X10576 GE Refrigerator Top Pan Assembly
482GEN WR17X11482
484WR32X10446 GE Refrigerator Cover Pan Assembly
485GEN WR32X10452
501WR71X10392 GE Refrigerator Shelf Slideout Assembly
505WR02X10662 GE Shelf Support Retainer
530GEN WR71X10578
580GEN WR72X10140
581WR49X10144 GE Refrigerator Slide Bracket Assembly Kit
582GEN WR72X10142
583WR01X10629 GE Refrigerator Screw 8-18 AB Hex Washer 1/2"
