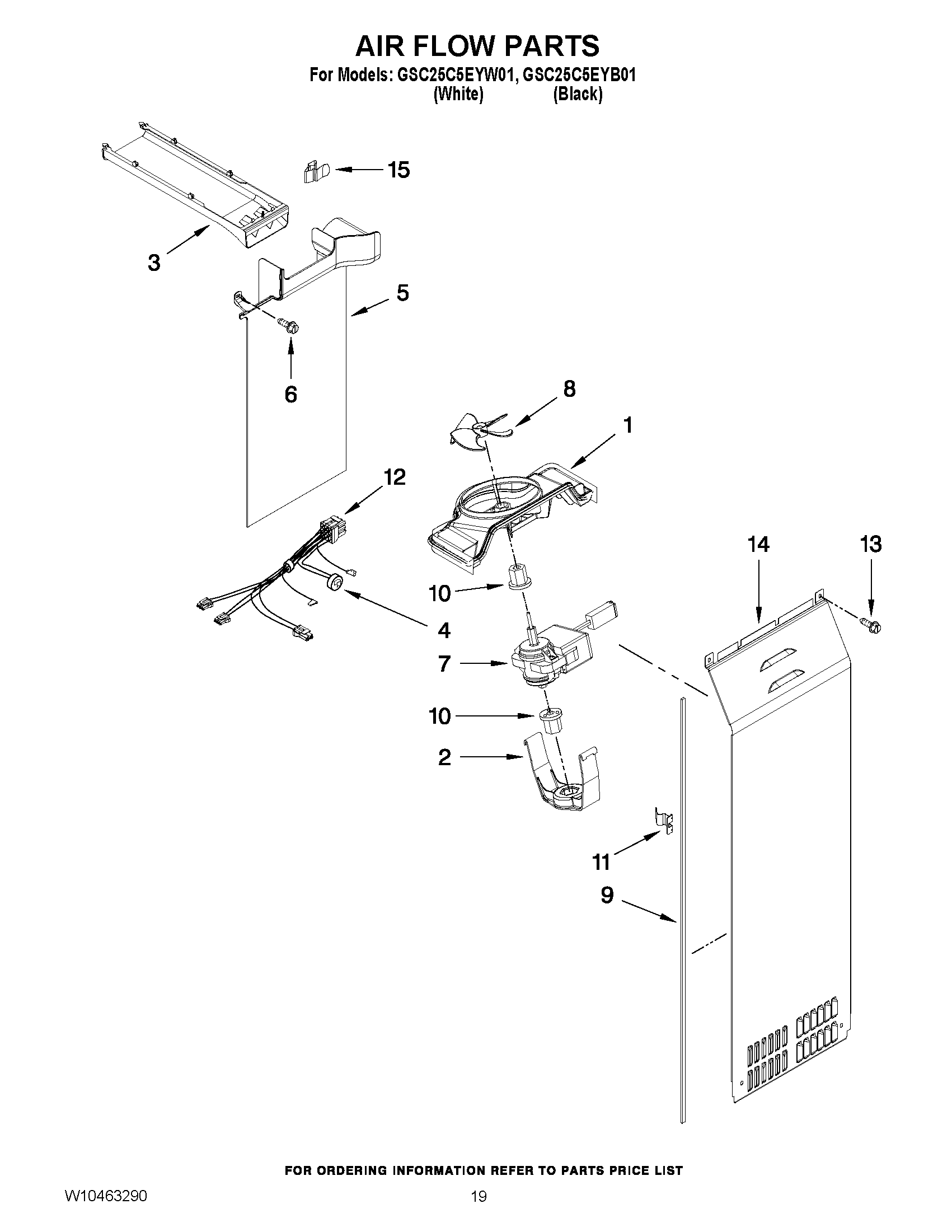

GSC25C5EYW01 11 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3AIR DUCT, UPPER
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5DUCT-AIR
6WP489478 Whirlpool Refrigerator Screw
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9W10240370 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
12W11566475 Whirlpool Refrigerator Wire Harness
13WP693995 Whirlpool Screw
14WPW10388269 Whirlpool Refrigerator Evaporator Cover
15W11232019 Whirlpool Refrigerator Clip
