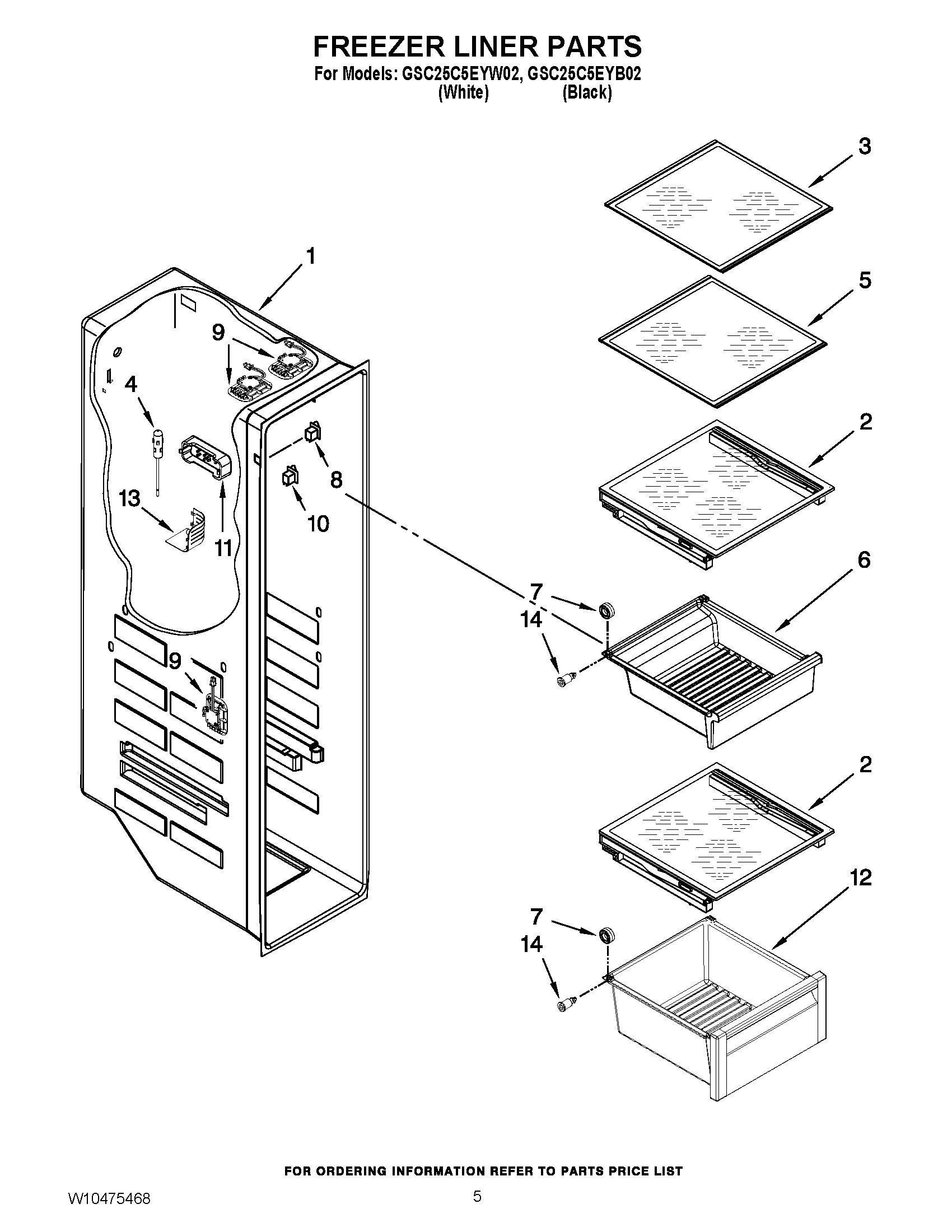

GSC25C5EYW02 04 – FREEZER LINER PARTS

GSC25C5EYW02 04 – FREEZER LINER PARTS

Written by

in

GSC25C5EYW02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10290890 Whirlpool Refrigerator Cover
3WPW10393383 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5WPW10393382 Whirlpool Refrigerator Glass Shelf
6W10322533 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11396033 Whirlpool Refrigerator Rocker Switch
9MODULE
10W11123943 Whirlpool Refrigerator Switch
11W10425253 Whirlpool Refrigerator Cover
12PAN, FREEZER LOWER ALSO ORDER 7 & 8
13W10260382 Whirlpool Refrigerator Cover
14WPW10257246 Whirlpool Refrigerator Axle
