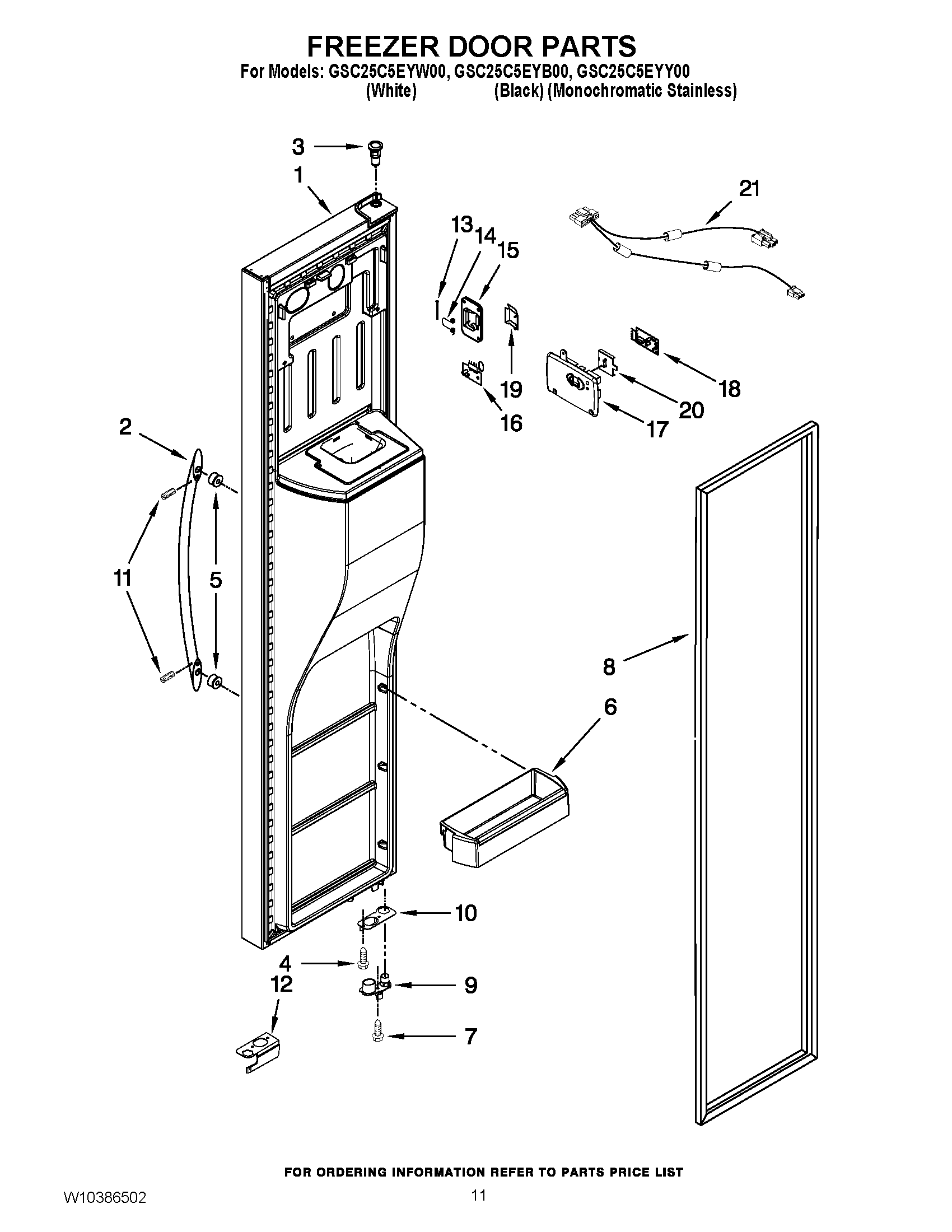

GSC25C5EYY00 07 – FREEZER DOOR PARTS

GSC25C5EYY00 07 – FREEZER DOOR PARTS

Written by

in

GSC25C5EYY00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2WPW10268057 Whirlpool Refrigerator Handle
2WPW10670421 Whirlpool Refrigerator Handle
2WPW10268056 Whirlpool Refrigerator Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WPW10335218 Whirlpool Refrigerator Cantilever Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8WPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9W11607100 Whirlpool Refrigerator Thimble Cam
9WPW10257206 Whirlpool Refrigerator Door Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
11WPW10010150 Whirlpool Refrigerator Screw
12W10632059 Whirlpool Refrigerator Wire Cover
12W10632060 Whirlpool Refrigerator Wire Cover
12WPW10632062 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17COVER, RECEIVER
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21W10242369 Whirlpool Refrigerator Wire Harness
