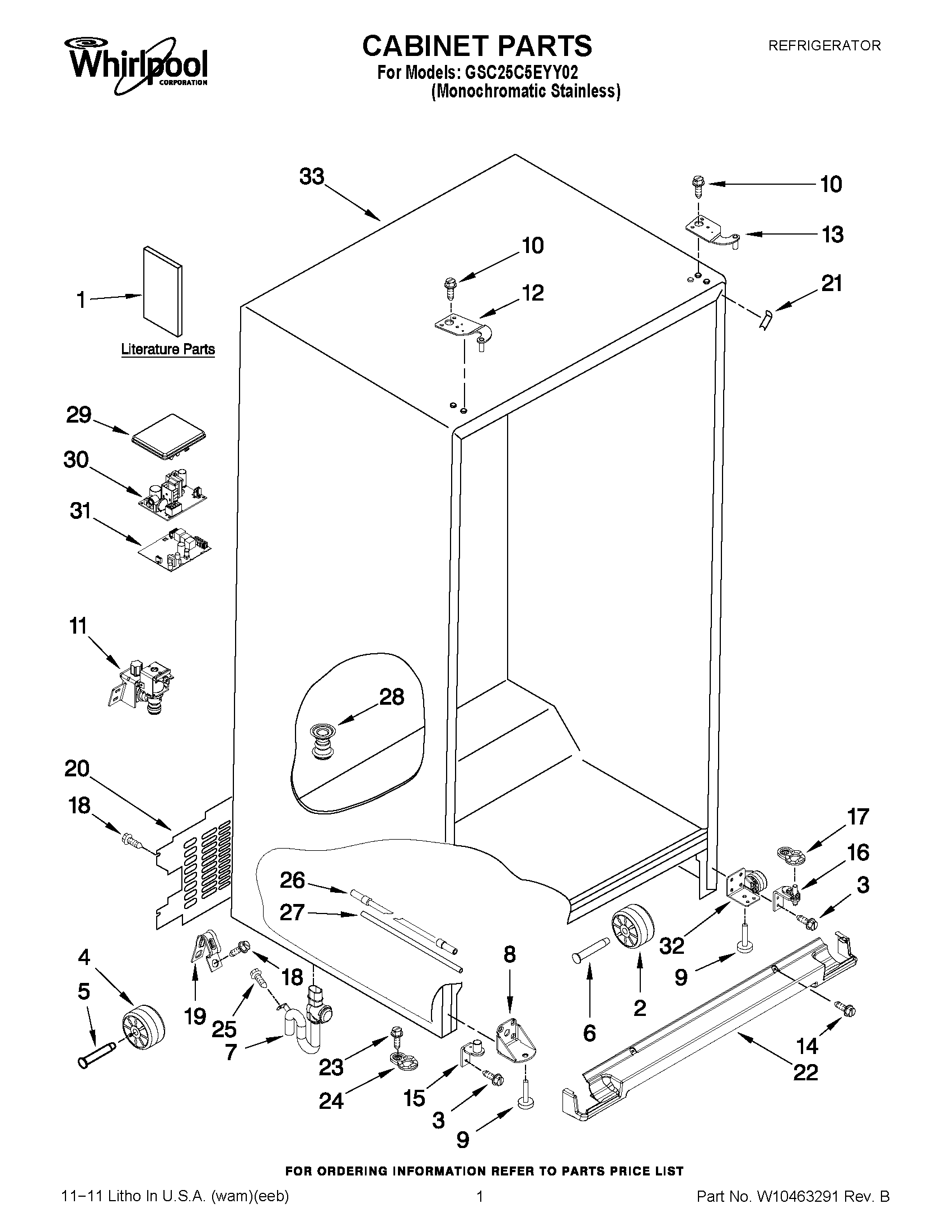

GSC25C5EYY02 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	ENERGY LABEL
1	USE & CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	WPW10285005 Whirlpool Refrigerator Rivet
7	W10379525 Whirlpool Refrigerator Extension
9	WPW10141622 Whirlpool Leveler
10	WPW10308750 Whirlpool Refrigerator Screw
11	VALVE-INLT REFR
12	W11590581 Whirlpool Refrigerator Door Hinge
13	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
17	W10500004 Whirlpool Refrigerator Door Hinge
18	SCREW
19	549193 Whirlpool Refrigerator Power Clamp
20	WPW10333887 Whirlpool Refrigerator Unit Cover
21	WP12587703AP Whirlpool Refrigerator Filler
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	W10370680 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
31	WPW10235414-includeCORE Whirlpool WPW10235414 Refrigerator Electronic Control Board + Core
32	W11266052 Whirlpool Refrigerator Bracket
33	CABINET (NOT A SERVICEABLE PART)
