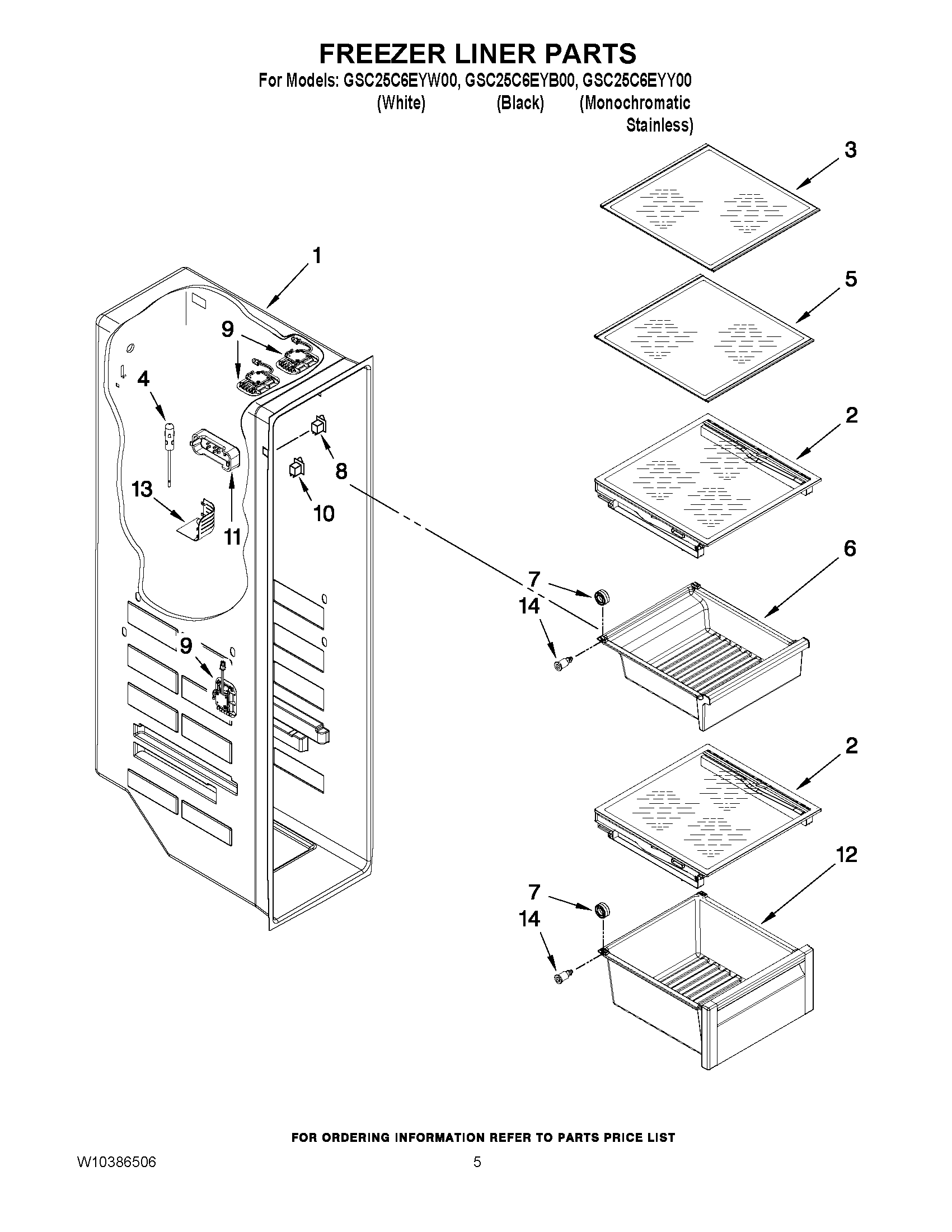

GSC25C6EYB00 04 – FREEZER LINER PARTS
Written by
in
GSC25C6EYB00 04 – FREEZER LINER PARTS
Products
Position
Product
1
CABINET (NOT A SERVICEABLE PART)
2
W10290890 Whirlpool Refrigerator Cover
3
SHELF, GLASS UPPER
4
THERMISTOR
5
WPW10322808 Whirlpool Refrigerator Glass Shelf
6
W10322533 Whirlpool Refrigerator Freezer Bin
7
W11164152 Whirlpool Drawer Roller
8
W11123943 Whirlpool Refrigerator Switch
9
MODULE
10
W11457217 Whirlpool Refrigerator Rocker Switch Combination
11
W10425253 Whirlpool Refrigerator Cover
12
PAN, FREEZER LOWER ALSO ORDER 7 & 8
13
W10260382 Whirlpool Refrigerator Cover
14
WPW10257246 Whirlpool Refrigerator Axle
←
