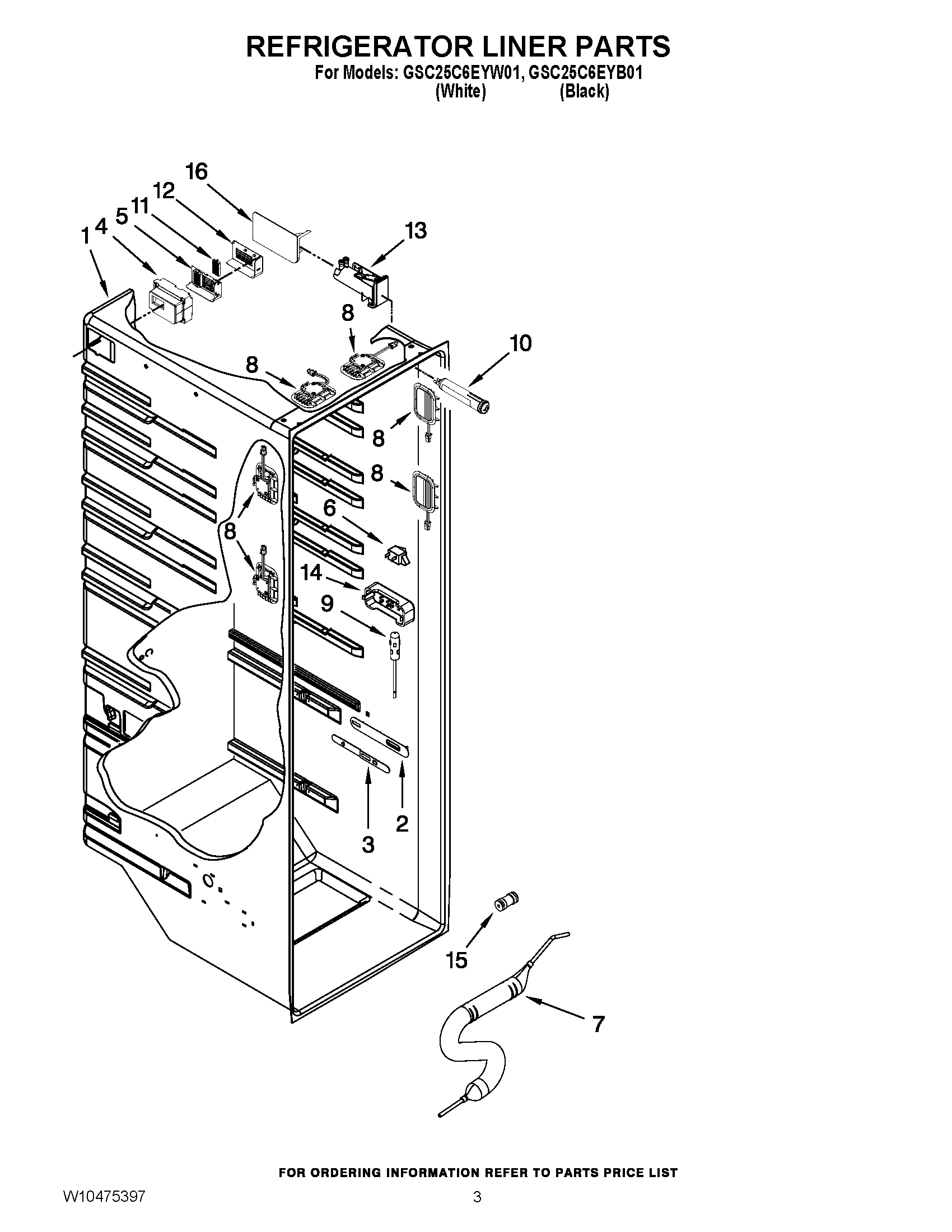

GSC25C6EYB01 02 – REFRIGERATOR LINER PARTS

GSC25C6EYB01 02 – REFRIGERATOR LINER PARTS

Written by

in

GSC25C6EYB01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10260988 Whirlpool Refrigerator Escutcheon
3SLIDE, MEAT PAN CONTROL
5W10572852 Whirlpool Refrigerator Diffuser
6W11384469 Whirlpool Door Switch
7W11613294 Whirlpool Refrigerator Reservoir
8MODULE
9THERMISTOR
10EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
13WPW10238123 Whirlpool Refrigerator Housing
14WPW10425252 Whirlpool Refrigerator Cover
15WP2300868 Whirlpool Refrigerator Fitting
16W10300484 Whirlpool Refrigerator Filter Cover
