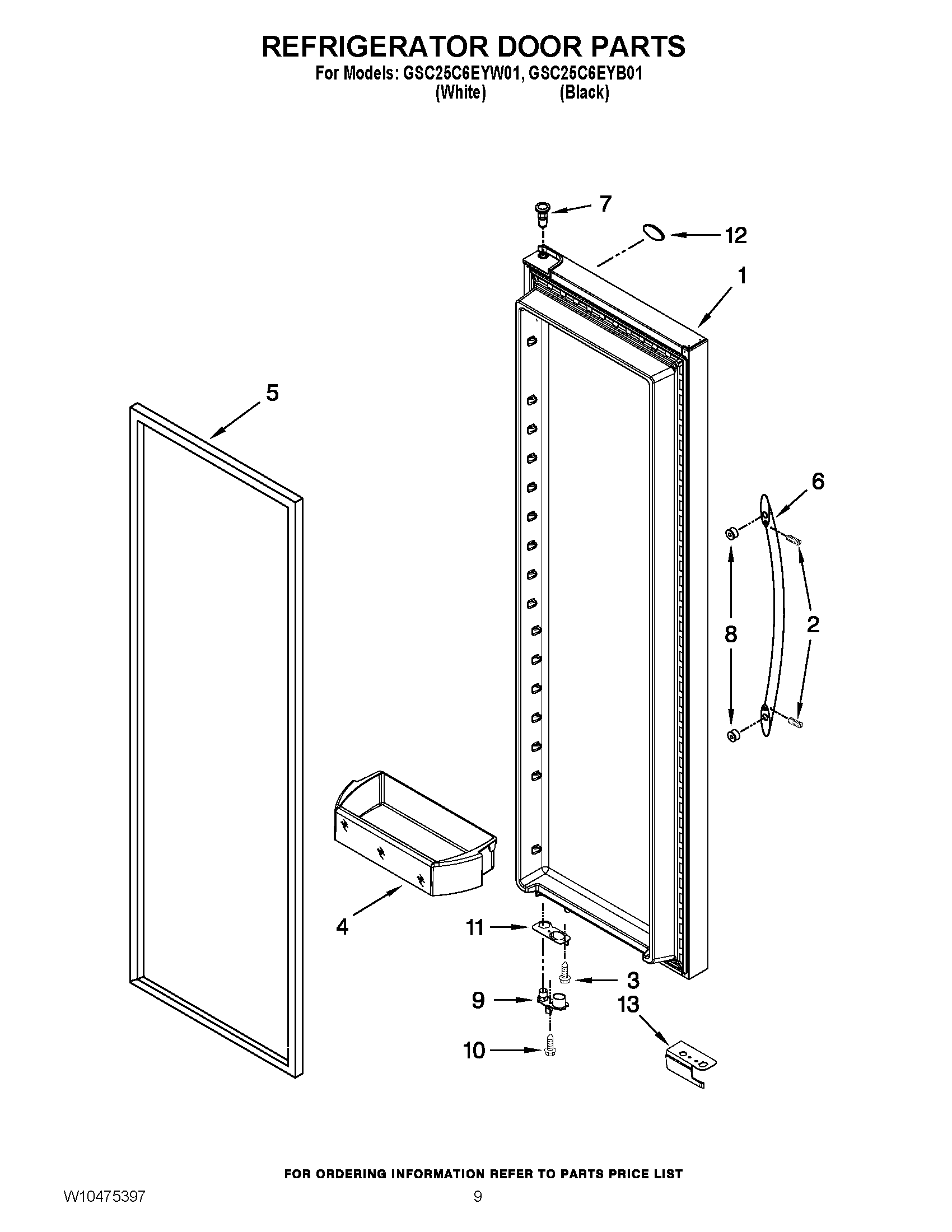

GSC25C6EYB01 06 – REFRIGERATOR DOOR PARTS

GSC25C6EYB01 06 – REFRIGERATOR DOOR PARTS

Written by

in

GSC25C6EYB01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2SCREW
3SCREW
4WPW10335220 Whirlpool Refrigerator Cantilever Bin
5W11624999 Whirlpool Refrigerator FIP Gasket
5GASKET-FIP
6WPW10268056 Whirlpool Refrigerator Door Handle
6WPW10268057 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257201 Whirlpool Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12Nameplate
13W10789144 Whirlpool Refrigerator Wire Cover
13W10257216 Whirlpool Refrigerator Wire Cover
