GSC25C6EYY03 02 – CABINET PARTS

GSC25C6EYY03 02 – CABINET PARTS

Written by

in

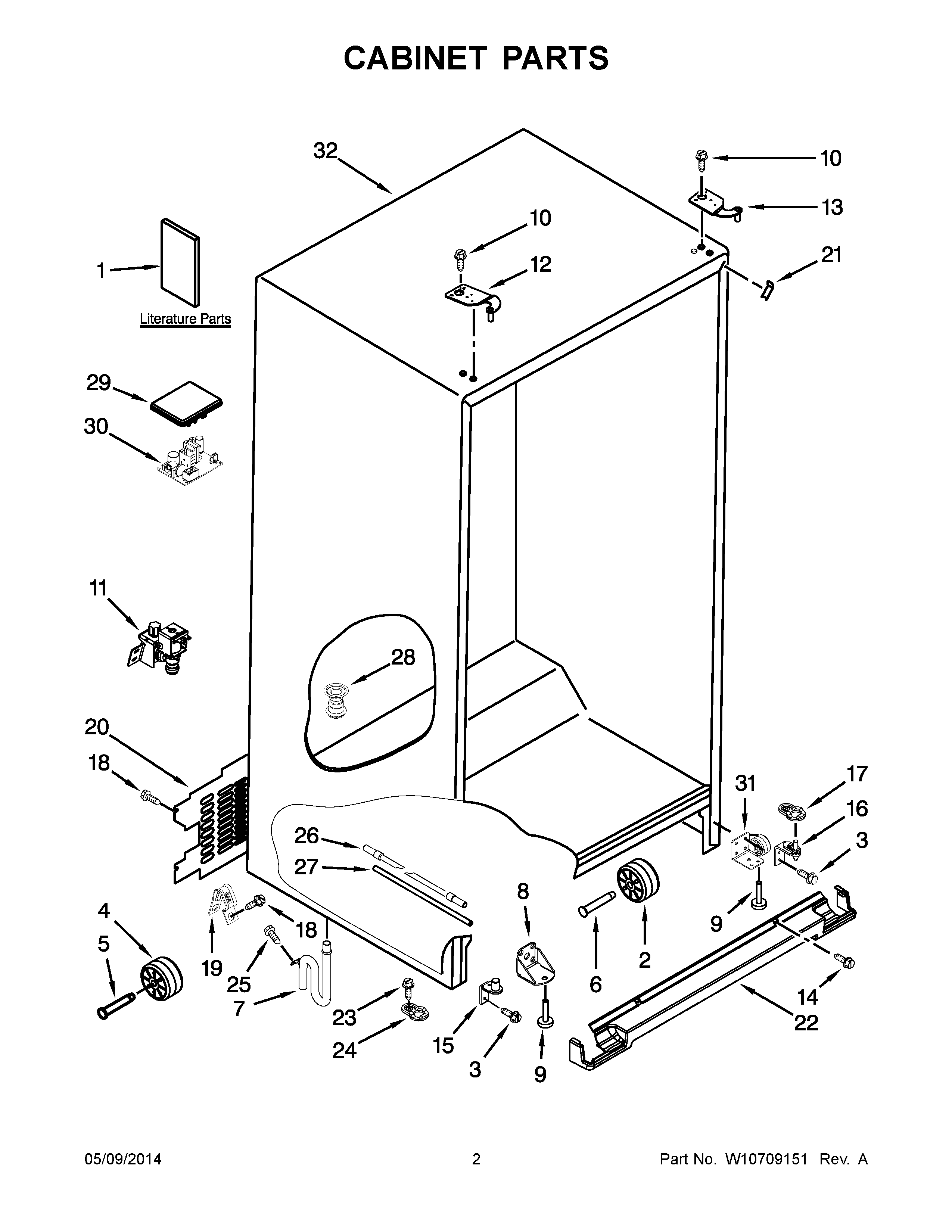

GSC25C6EYY03 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1SERVICE & WIRING SHEET
2WPW10475495 Whirlpool Roller Assembly
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6W11208384 Whirlpool Refrigerator Rivet
7W10379525 Whirlpool Refrigerator Extension
9WPW10141622 Whirlpool Leveler
10WPW10308751 Whirlpool Screw
11VALVE-INLT REFR
12W11590581 Whirlpool Refrigerator Door Hinge
13HINGE-DOOR
14WPW10308489 Whirlpool Refrigerator Screw
15W11293374 Whirlpool Refrigerator Door Hinge
16W11292872 Whirlpool Refrigerator Door Hinge
17W11311687 Whirlpool Closing Cam
18SCREW
19549193 Whirlpool Refrigerator Power Clamp
20WPW10333887 Whirlpool Refrigerator Unit Cover
21WP12587703AP Whirlpool Refrigerator Filler
22WPW10713153 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24W10876191 Whirlpool Refrigerator Door Cam
25WP489464 Whirlpool Refrigerator Screw
26WPW10279882 Whirlpool Water Line
27WPW10279884 Whirlpool Water Tube
28W10370680 Whirlpool Refrigerator Fitting
29LID, HV BOX
30W11088499-includeCORE Whirlpool W11088499 Refrigerator Electric Control Board with Core
31W11266052 Whirlpool Refrigerator Bracket
32CABINET (NOT A SERVICEABLE PART)
